MEAN WELL Multiple-Stage Constant Power/Constant Voltage LED Driver, 60 V Output, 25 W Output, 0.3 to 1.05 A 3 in 1

View all LED Drivers

Subtotal (1 unit)*

MYR87.37

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3 unit(s) shipping from 02 February 2026
  • Plus 12 unit(s) shipping from 09 February 2026
  • Plus 12 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR87.37

*price indicative

RS Stock No.:
314-246
Mfr. Part No.:
XLC-25-H
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

LED Driver

Output Voltage

60 V

Maximum Output Power

25W

Input Voltage

110/305 V

Sub Type

Multiple-Stage Constant Power/Constant Voltage LED Driver

Dimming Operation

3 in 1 Dimming

Terminal Type

Pin

Input Voltage Type

AC/DC

Driver Current

0.3 to 1.05 A

LED Voltage

9 to 54 V

Operating Modes

Constant Power

Series

XLC-25

Standards/Approvals

UL8750(Class P), GB19510.14, GB19510.1, GB17625.1, EAC TP TC 004, CSA C22.2 No. 250.13-12, BS EN/EN62384, BS EN/EN61347-2-13(EL), BS EN/EN61347-1, BS EN/EN61000-3-3, BS EN/EN61000-3-2

COO (Country of Origin):
CN

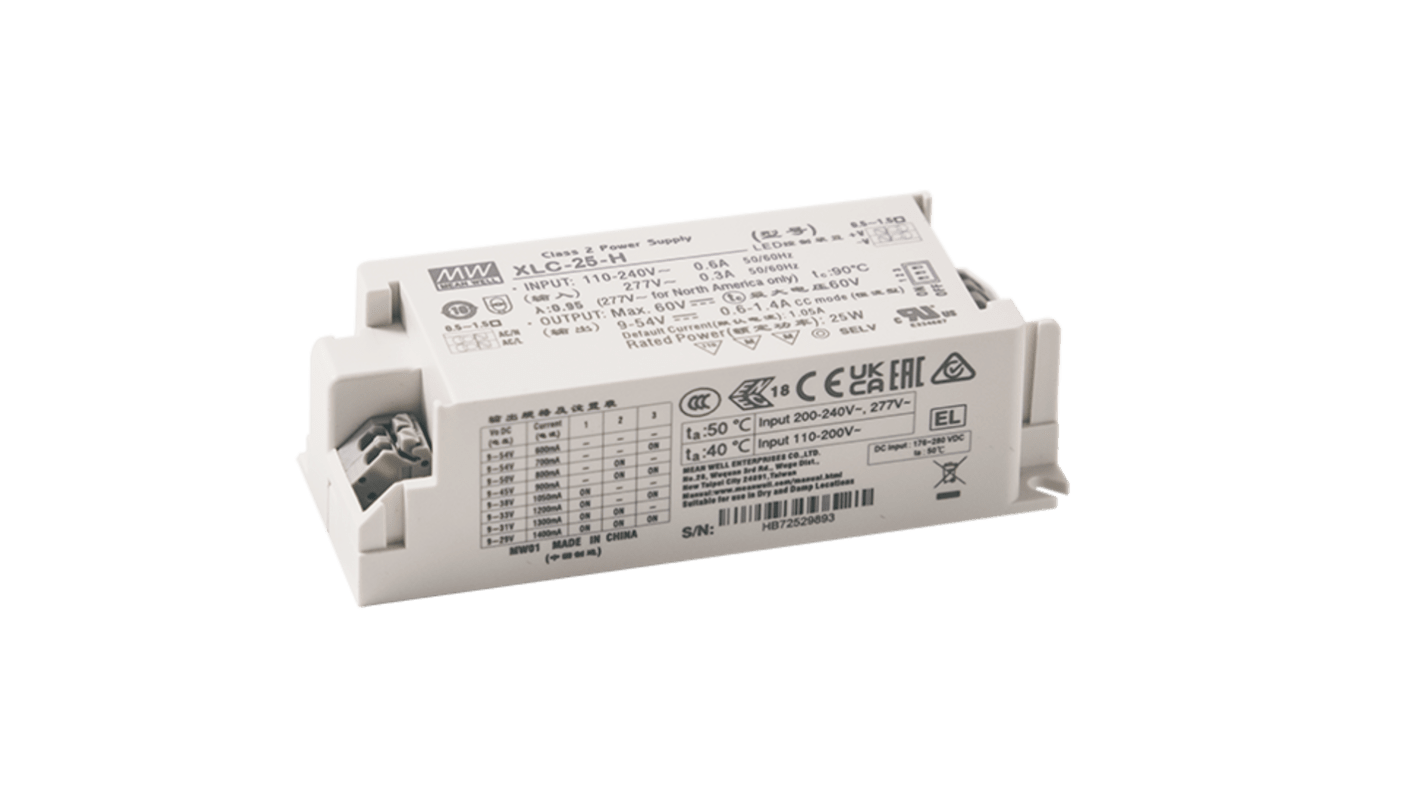

The MEANWELL LED Driver is a 25W LED driver with constant power and constant voltage output. It can operate from 100V to 305V AC, with an output current range between 300mA to 1050mA, which is selectable by a DIP switch or NFC setting. This LED Driver is designed in accordance with the latest safety regulations, featuring three in one dimming and DALI-2 dimming. Additionally, the brightness can be adjusted with a simple push button, providing flexibility for LED lighting applications.

Plastic housing with Class II and PFC design

Meets UL 8750 Class 2 and Class P power unit

Flicker free and complying with CE ERP directive

Standby power consumption less than 0.5W

Meets emergency lighting application requirements
