ROHM BD18395EFV-ME2 LED Driver IC, 70 V 2 A 20-Pin HTSSOP-B20
- RS Stock No.:
- 246-3805
- Mfr. Part No.:
- BD18395EFV-ME2
- Manufacturer:
- ROHM

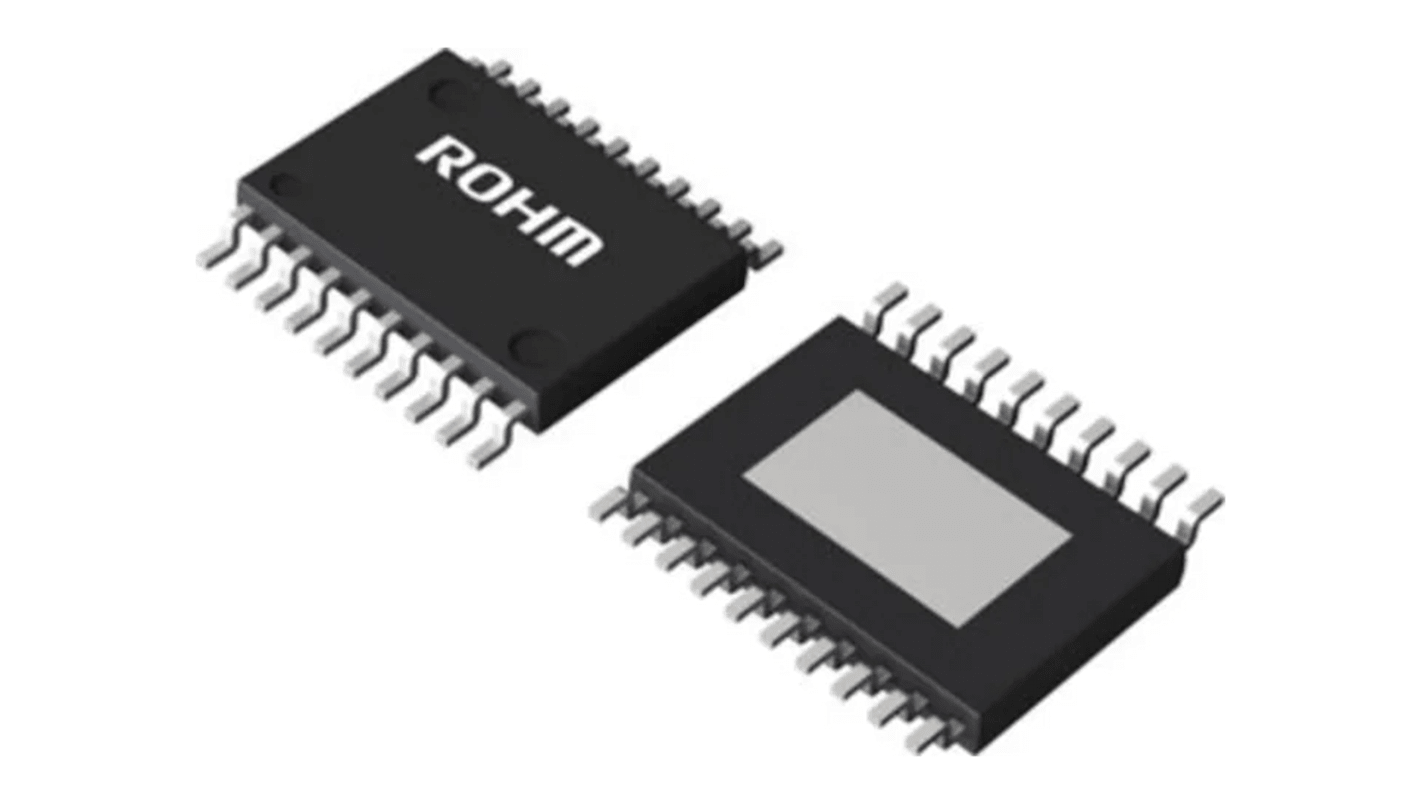

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR14.30
FREE delivery for orders over RM 500.00
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 49 | MYR14.30 |
| 50 - 99 | MYR13.23 |
| 100 - 249 | MYR12.26 |
| 250 - 999 | MYR11.34 |
| 1000 + | MYR10.49 |
*price indicative
- RS Stock No.:
- 246-3805
- Mfr. Part No.:
- BD18395EFV-ME2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Output Current | 2A | |
| Product Type | LED Driver IC | |
| Input Voltage Type | DC | |
| Dimming Operation | PWM | |
| Mount Type | Surface | |
| Package Type | HTSSOP-B20 | |
| Number of Pins | 20 | |
| Maximum Output Voltage | 60V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 6.5mm | |
| Height | 1mm | |
| Minimum Output Voltage | 0V | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Output Current 2A | ||
Product Type LED Driver IC | ||
Input Voltage Type DC | ||
Dimming Operation PWM | ||
Mount Type Surface | ||
Package Type HTSSOP-B20 | ||
Number of Pins 20 | ||
Maximum Output Voltage 60V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 6.5mm | ||
Height 1mm | ||
Minimum Output Voltage 0V | ||
Automotive Standard AEC-Q100 | ||
The ROHM BD183 series is a buck LED driver which operated at wide input voltage range from 4.5 V to 70 V are available in HTSSOP-B20 package and can be used in rear, turn, DRL/position, fog, dynamic indicator, high/low beam, AFS head lamp and ADB head lamp applications.
AEC-Q100 qualified
Functional safety supportive automotive products
Peak current detection OFF TIME control system
For use with matrix LED control (high-speed response current control)
High-side LED current detection
LED voltage maximum 60 V
Shutdown for
