Taiwan Semiconductor LED Driver IC, 40 V 300 mA SOP
- RS Stock No.:
- 216-9643
- Mfr. Part No.:
- TSCR420CX6H RFG
- Manufacturer:
- Taiwan Semiconductor

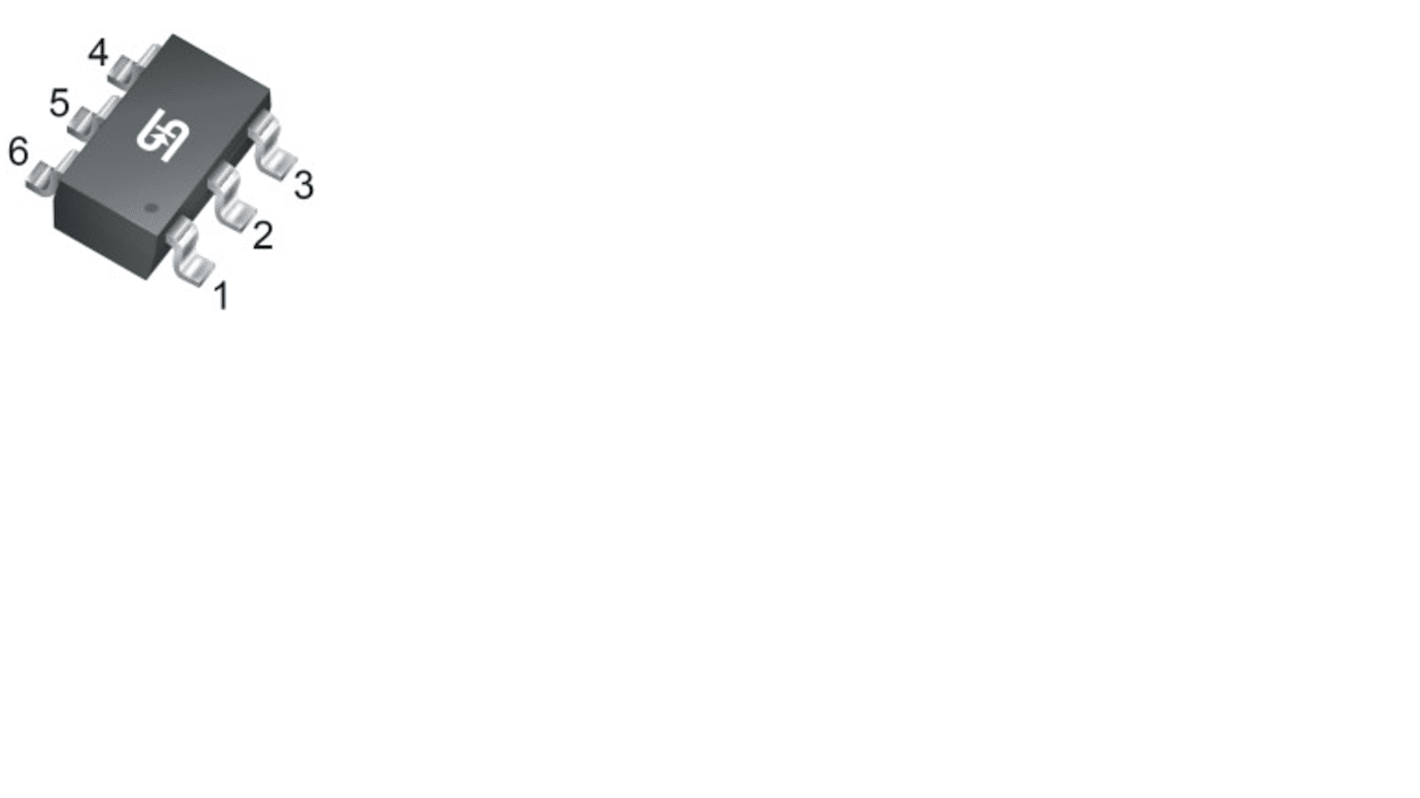

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 216-9643
- Mfr. Part No.:
- TSCR420CX6H RFG
- Manufacturer:
- Taiwan Semiconductor
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Product Type | LED Driver IC | |
| Output Current | 300mA | |
| Input Voltage | 40 V | |
| Input Voltage Type | DC | |
| Maximum Output Power | 1W | |
| Mount Type | Surface | |
| Package Type | SOP | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | TSCR | |
| Standards/Approvals | HF, AEC-Q100, RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Product Type LED Driver IC | ||
Output Current 300mA | ||
Input Voltage 40 V | ||
Input Voltage Type DC | ||
Maximum Output Power 1W | ||
Mount Type Surface | ||
Package Type SOP | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series TSCR | ||
Standards/Approvals HF, AEC-Q100, RoHS | ||
Automotive Standard No | ||
TSCR420_datasheet_en.pdf
The Taiwan semiconductor linear constant current led driver are Low-Side Constant Current Regulator (CCR) for linear LED driving. The device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 300mA.
