MikroElektronika MIKROE-1201 7-Seg Click LED Add On Board for 74HC595 IC

View all LED Development Tools
Bulk discount available

Subtotal (1 unit)*

MYR60.48

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per Unit
1 - 4MYR60.48
5 - 9MYR59.22
10 +MYR57.44

*price indicative

RS Stock No.:
923-5971
Mfr. Part No.:
MIKROE-1201
Manufacturer:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Product Type

LED Driver Evaluation Kit

LED Technology

LED

Kit Classification

Add On Board

Featured Device

74HC595 IC

Kit Name

7-Seg Click

Standards/Approvals

RoHS

COO (Country of Origin):
RS

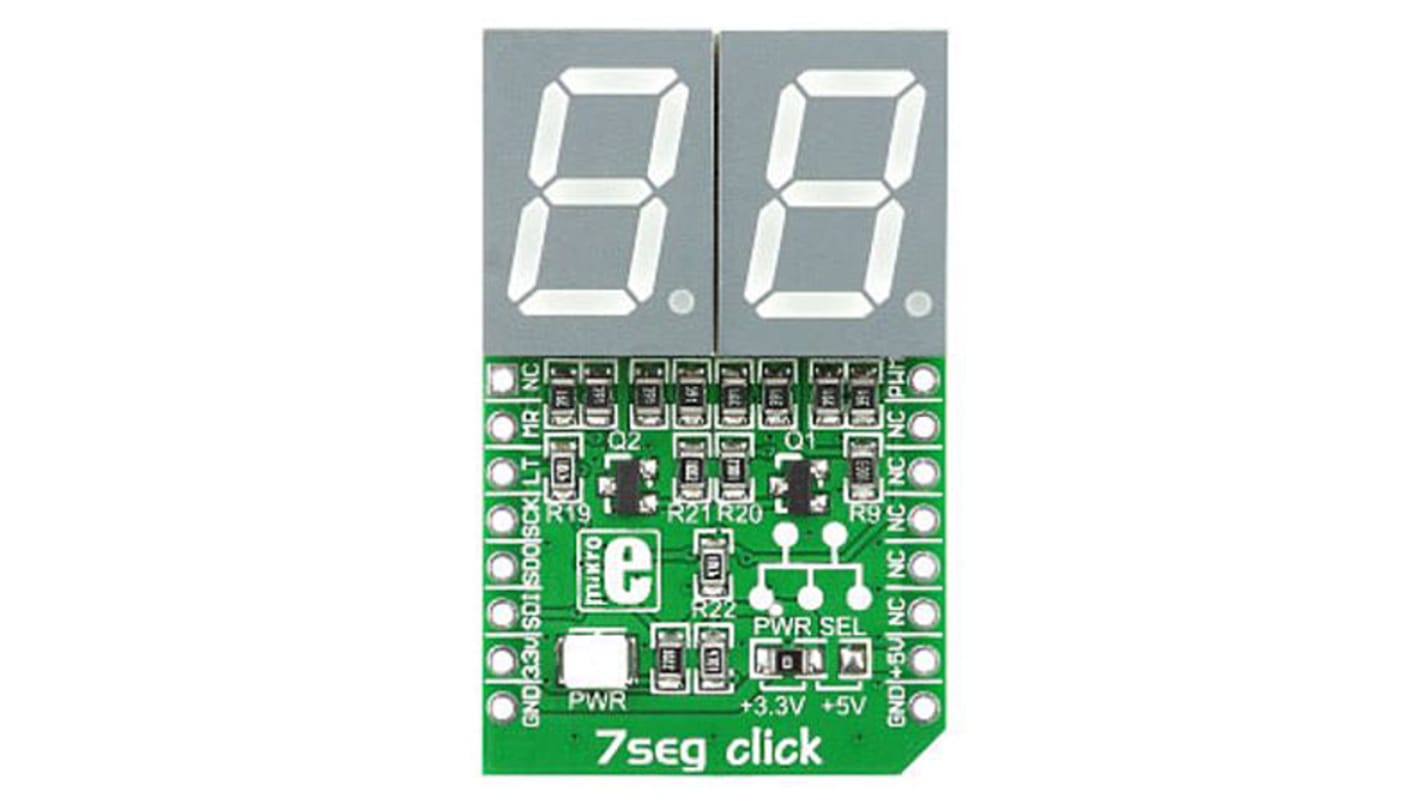

7seg click mikroBUS™


The Click accessory modules plug into the mikroBUS sockets in MikroElektronika microcontroller development boards. The 7seg click is easy to use and lets you add a two digit seven segment display to your device. It features two 74HC595 shift register ICs, green power LED and SMD jumper.

mikroBUS™ form factor

Two 7 segment digits on-board

7seg Click connects with target board via SPI interface

SMD Jumper: Operates on 3.3 V or 5 V power supply

2 x 74HC595 serial-in parallel-out shift registers with SPI interface

Supported in all MikroElektronika compilers.

mikroBUS™ is a specially designed pinout standard with SPI, I2C, Analogue, UART, Interrupt, PWM, Reset and power supply pins

Click mikroBUS™ Display & Graphics Boards


Note

Click board comes with the header strips soldered.
