NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-800480AF-ASXP-T IPS TFT TFT LCD Display / Touch Screen, 7in, 800 x 480pixels
- RS Stock No.:
- 218-682
- Mfr. Part No.:
- NHD-7.0-800480AF-ASXP-T
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Subtotal (1 unit)*
MYR391.75
FREE delivery for orders over RM 500.00
In Stock
- Plus 2 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR391.75 |
*price indicative
- RS Stock No.:
- 218-682
- Mfr. Part No.:
- NHD-7.0-800480AF-ASXP-T
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 7in | |
| Interface Type | 24-bit | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 156.68 x 88.519mm | |
| Supply Voltage | 3.3 V | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| Dimensions | 165 x 104 x 4.7mm | |
| Display Matrix Technology | IPS TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 780cd/m² | |
| Width | 211.67mm | |
| Viewing Area Height | 127mm | |
| Display Type | TFT | |
| Standards Met | RoHS Compliant | |
| Operating Temperature Range | -20 → 70°C | |
| Voltage Rating | 3.3V | |
| Viewing Area Width | 211.67mm | |
| Height | 127mm | |
| Select all | ||
|---|---|---|
Brand NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 7in | ||
Interface Type 24-bit | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 156.68 x 88.519mm | ||
Supply Voltage 3.3 V | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
Dimensions 165 x 104 x 4.7mm | ||
Display Matrix Technology IPS TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 780cd/m² | ||
Width 211.67mm | ||
Viewing Area Height 127mm | ||
Display Type TFT | ||
Standards Met RoHS Compliant | ||
Operating Temperature Range -20 → 70°C | ||
Voltage Rating 3.3V | ||
Viewing Area Width 211.67mm | ||
Height 127mm | ||
- COO (Country of Origin):
- CN

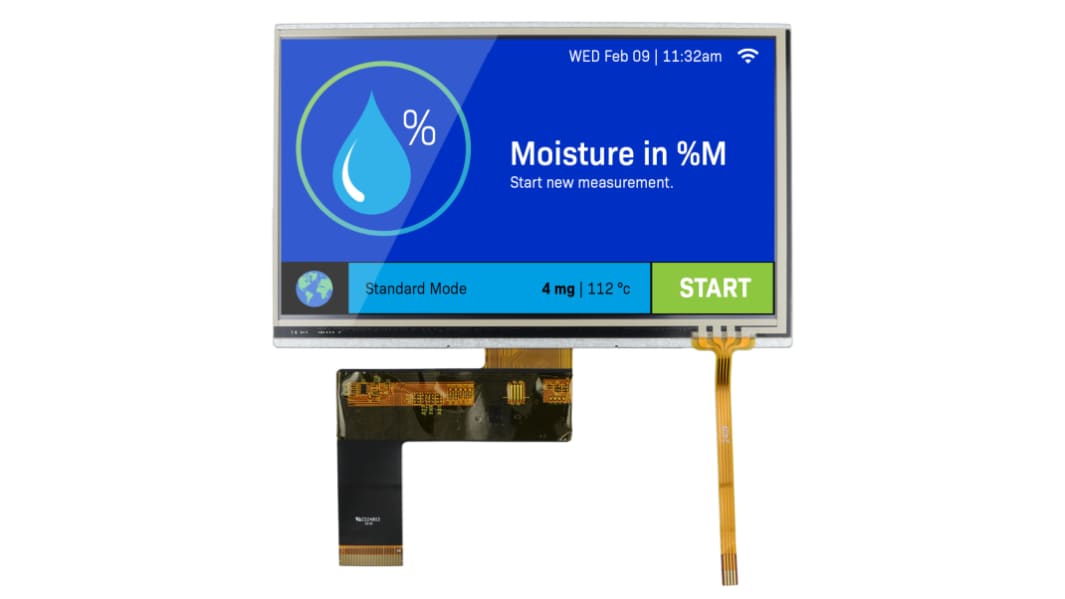

The NEWHAVEN DISPLAY INTERNATIONAL 7 inch IPS TFT LCD has EMI shielding, and a high brightness LED backlight with 780 nits. The display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display. The high brightness backlight allows this TFT to be sunlight readable in bright conditions including direct sun. This transmissive LCD boasts impressive quality and brightness.
EMI Shielded FPC
Optical features normally black transmissive and anti glare
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
Optical features normally black transmissive and anti glare
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
