Leica X6-R+Cal Distance Meter, 250 m Range, ±1 mm Accuracy

Subtotal (1 unit)*

MYR4,429.57

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR4,429.57

*price indicative

RS Stock No.:
288-7299
Mfr. Part No.:
950909+CAL
Manufacturer:
Leica
Find similar products by selecting one or more attributes.
Select all

Brand

Leica

Product Type

Distance Meter

Accuracy

±1 mm

Measurement Range

250 m

Unit of Measure

Imperial, Metric

Working Environment

Outdoor

Display Type

LCD

Laser Class

Class 2

Laser Colour

Red

Laser Wavelength

635nm

Power Source

Battery

Weight

23g

Metric-Imperial Conversion

Yes

Bluetooth Connectivity

Yes

Tilt Sensor

Yes

Model Number

X6-R+Cal

Waterproof IP Rating

IP65

View finder Camera

Yes

Length

68mm

Standards/Approvals

IEC 60825-1, RoHS

Width

25 mm

Height

154mm

Series

DISTO X6

Hazardous Area Certification

No

COO (Country of Origin):
HU

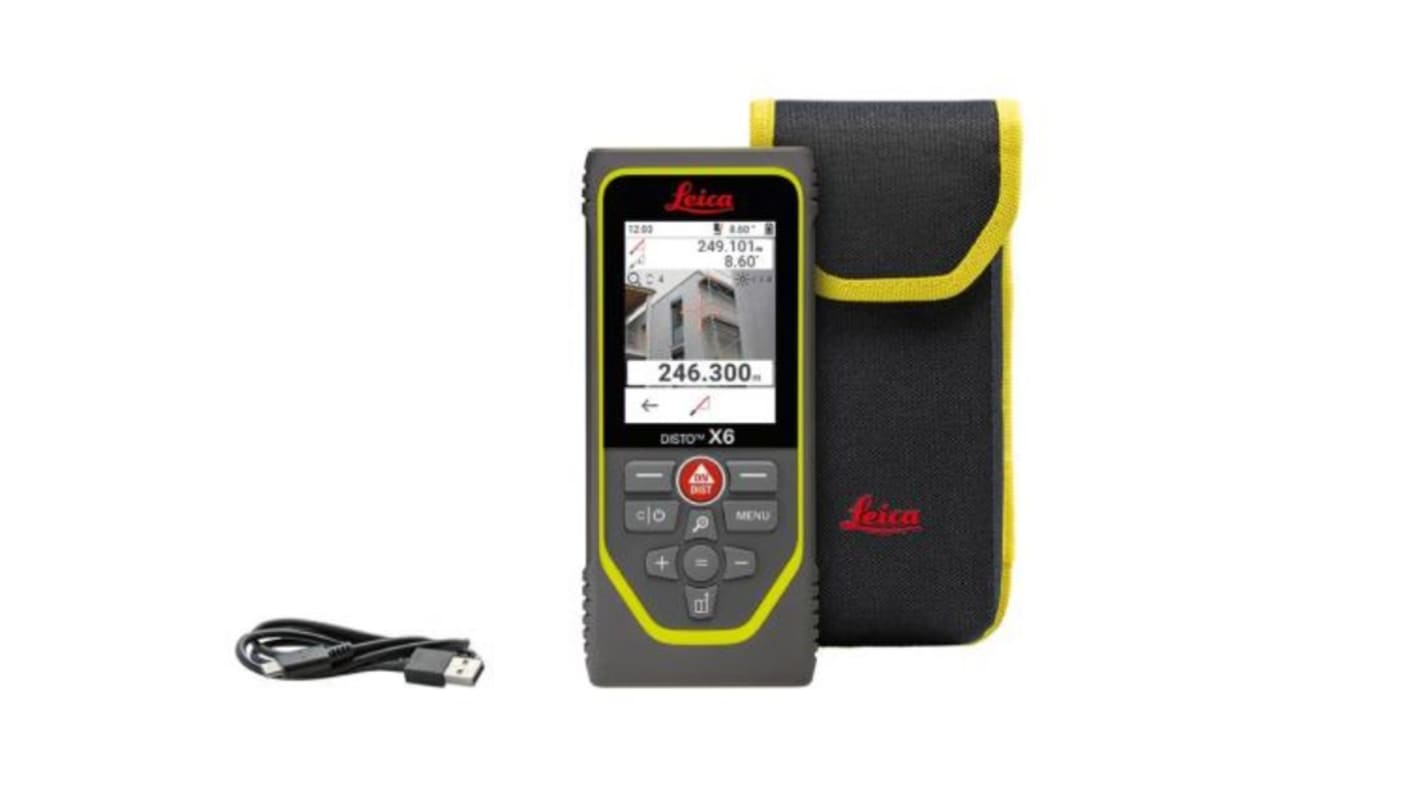

Leica DISTO X6-R Li-ion Rechargeable 3D Laser Distance Measurer + PreCal


The Leica DISTO X6-R is a long-distance li-ion rechargeable laser measurer, with a range up to 250 m, that combines innovative measuring technology with an extremely robust design, built to withstand tough working conditions. The X6-R is both waterproof and dustproof and has a 2 m drop test rating. It is very intuitive and easy to use, thanks to its large and high-speed scratch-resistant touchscreen, with auto rotate screen orientation, along with handy features incorporated such as the side DIST measurement key.

For maximum accuracy of measurements, ± 1mm, use the new gesture feature, simply move your hand across the laser beam to trigger measurements. Packed with functionality including the ability to measure inside pictures, smart horizontal mode, ground profiling, height calculations, room scanning, and indirect heights. The data can then be sent via Bluetooth to the DISTO Plan app or to templates including Excel and email. Add the Point-to-Point (P2P) DST 360-X adapter, now you can measure anything, anywhere in 3D. Capture DXF files and send them directly to CAD.

Features and Benefits


Site Ready: Extremely tough and high-quality build, being both waterproof and dustproof with a 2 m drop test rating

Easy to Use and Intuitive: Large touchscreen enables fast and intuitive operation, with measurement functions easily accessible via gestures like swiping and zooming

Digital Pointfinder with 4x Zoom: Ideal for bright sunlight or long distances, ensuring accurate measurements in challenging conditions

Environmentally Conscientious: Li-ion batteries provide an environmentally friendly and long-lasting power supply. The unit can even be used while charging

Clear Measurement Data: Measurement results can be summarised in reports and downloaded via USB for easy inclusion in quotations and invoices

Large Memory Capacity: The device can store 300 reports and 1,000 captured 3D points

Ready for 3D Measurements: With the Leica DST 360-X adapter, it can collect 2D and 3D data for further processing in the DISTO™ Plan app or CAD software

Calibrated - PreCal

Typical Applications


Construction

Surveying/Architecture

Automobile

HVAC

Fire safety

Industrial maintenance

Solar power

Electrical safety and arc/flash protection

Included in the package – Leica DISTO™ X6-R, pouch with magnetic flap, USB-C to USB-A cable, hand loop, quick start guide, warranty card and safety manual, plus Pre-Calibration certificate.
