WISKA Combi Series Grey Polypropylene Junction Box, IP66, IP67, 140 x 140 x 82mm
- RS Stock No.:
- 700-0814
- Mfr. Part No.:
- 60703
- Manufacturer:
- WISKA
Bulk discount available
Subtotal (1 pack of 2 units)*
MYR293.64
FREE delivery for orders over RM 500.00
In Stock
- Plus 58 unit(s) shipping from 12 January 2026
- Plus 40 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 2 - 22 | MYR146.82 | MYR293.64 |
| 24 - 48 | MYR143.745 | MYR287.49 |
| 50 + | MYR140.905 | MYR281.81 |
*price indicative
- RS Stock No.:
- 700-0814
- Mfr. Part No.:
- 60703
- Manufacturer:
- WISKA
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WISKA | |
| Dimensions L x W x H | 140 x 140 x 82mm | |
| Material | Polypropylene | |
| Length | 140mm | |
| Width | 140mm | |
| Height | 82mm | |
| IP Rating | IP66, IP67 | |
| Colour | Grey | |
| Number of Ways | 14 | |
| Series | Combi | |
| Select all | ||
|---|---|---|
Brand WISKA | ||
Dimensions L x W x H 140 x 140 x 82mm | ||
Material Polypropylene | ||
Length 140mm | ||
Width 140mm | ||
Height 82mm | ||
IP Rating IP66, IP67 | ||
Colour Grey | ||
Number of Ways 14 | ||
Series Combi | ||
- COO (Country of Origin):
- DE

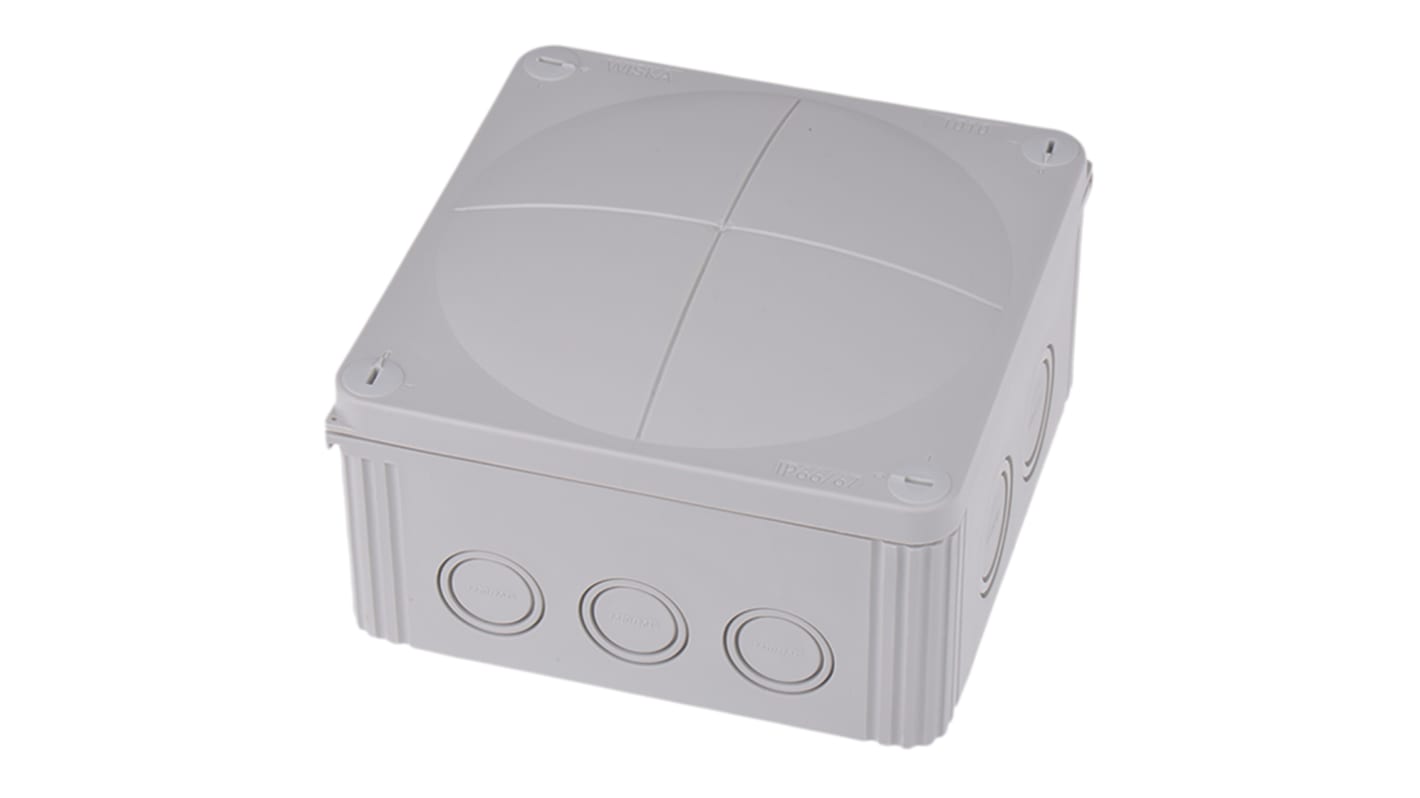

WISKA Combi Junction Box
The WISKA junction box has an integrated thread where the cable glands can be directly mounted into without any locknuts. The patented combination of thread and membrane saves one further working process. It is highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solution, as well as alcohol. It is mounted via holes in the corners of the box, separated from the inside of the enclosure. Thus the IP ratings are not affected.
Features and Benefits
10 side entries (5xM25/32, 2xM20, 3xM20/25), 4 base entries (2xM25/32, 2xM20/25)
10% more room inside because of the bellied cover
Flame retardant and halogen free
Grey in colour
Height is 82mm
Length is 140mm
Number of ways are 14mm
Polypropylene material
Quick release lid screws made of plastic will not rust and stay securely in place
Solid thermoplastic housing made from 2 different moulded materials
Width is 140mm
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP66 rated
IP67 rated
