HENSEL FK Series Orange Polycarbonate Terminal Box, IP55, 5 Terminals, DIN 4102-12, BS EN 50200, 70 mm, 104 mm 104 mm

RS Stock No.:: 276-5422
Mfr. Part No.:: FK 0402
Manufacturer:: HENSEL

HENSEL FK Series Orange Polycarbonate Terminal Box, IP55, 5 Terminals, DIN 4102-12, BS EN 50200, 70 mm, 104 mm 104 mm

Subtotal (1 unit)*

MYR575.95

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 03 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR575.95

*price indicative

RS Stock No.:: 276-5422
Mfr. Part No.:: FK 0402
Manufacturer:: HENSEL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HENSEL
	Width	104 mm
	Product Type	Terminal Box
	Length	70mm
	Material	Polycarbonate
	Height	104mm
	IP Rating	IP55
	Number of Terminals	5
	Colour	Orange
	Hazardous Area Certification	DIN 4102-12, BS EN 50200
	Number of Ways	7
	Cable Entry	3 x EDKF 25
	Current Rating	24 A
	Range	9 to 17 mm
	Standards/Approvals	DIN 4102-12 (German Standard), BS EN 50200, IEC 60670-22
	Series	FK

	Select all
	Brand HENSEL
	Width 104 mm
	Product Type Terminal Box
	Length 70mm
	Material Polycarbonate
	Height 104mm
	IP Rating IP55
	Number of Terminals 5
	Colour Orange
	Hazardous Area Certification DIN 4102-12, BS EN 50200
	Number of Ways 7
	Cable Entry 3 x EDKF 25
	Current Rating 24 A
	Range 9 to 17 mm
	Standards/Approvals DIN 4102-12 (German Standard), BS EN 50200, IEC 60670-22
	Series FK

COO (Country of Origin):: DE

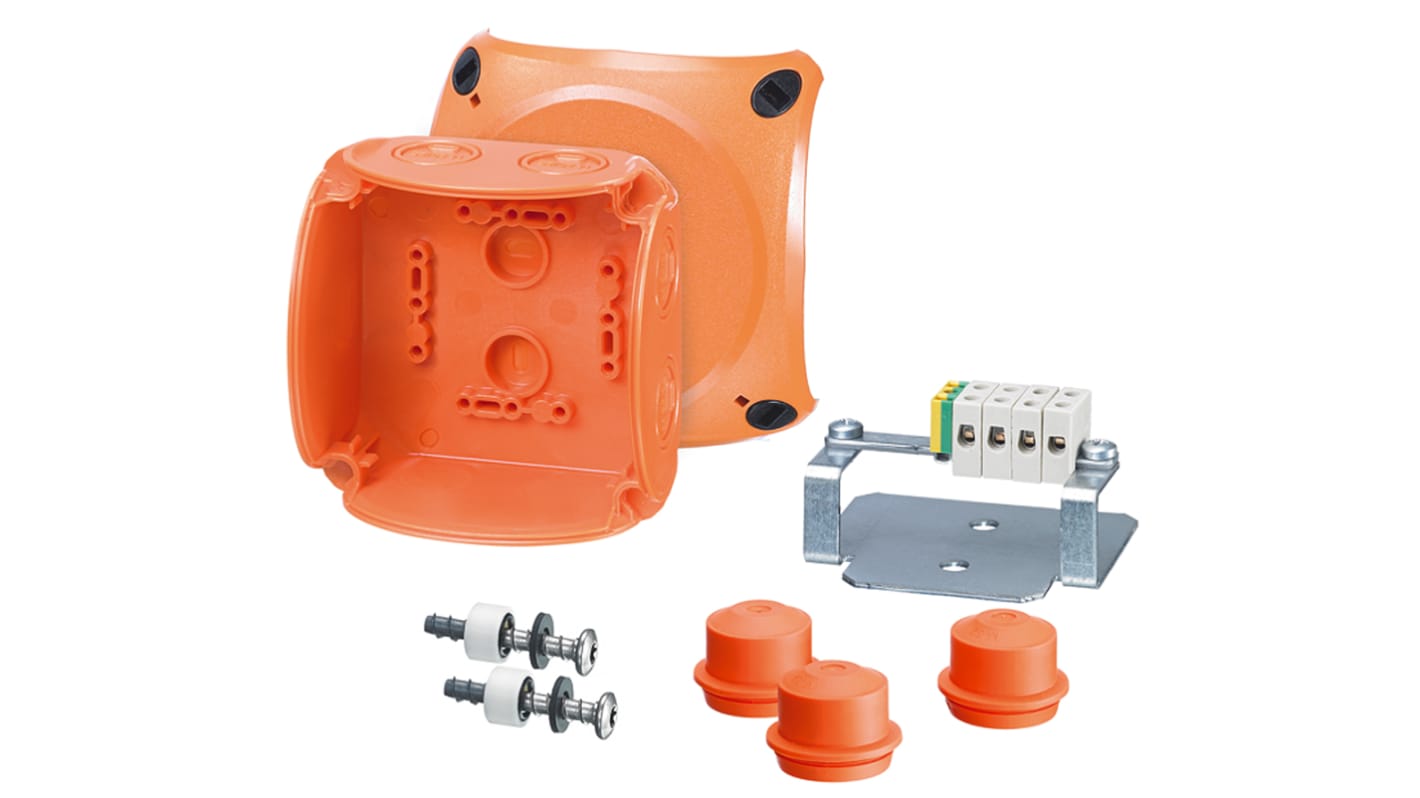

Cable junction box 1.5 mm², Cu

Connection box 1.5-2.5 mm², Cu

5-pole per pole 4 x 1.5 mm² r and 2 x 2.5 mm² r

Connecting terminal made from ceramic with resistance to high temperatures

Included cable entry: 3 EDKF 25,

sealing range: Ø 9-17 mm, IP 65

IP 66 using AKMF cable glands, please order separately

Intrinsic fire resistance in accordance with DIN 4102-12 (German standard) in combination with function-retaining cables

Tested with the cable manufacturers Dätwyler and Eupen for the intrinsic fire resistance E30 up to E90, see test certificate no.: P-MPA-E-15-018 valid till 9 May 2026, download available from www.hensel-electric.de > type - documents

Tested for insulation integrity PH120 in accordance with BS EN 50200 in connection with insulation retaining cables, see test certificate, download available from www.hensel-electric.de > type - documents

Screw anchors enclosed can be used for concrete C20/25, limestone blocks KSV 12, building bricks MZ 12 and clinker bricks KS 12

For normal environment and protected outdoor

colour: orange, RAL 2003

HENSEL FK Series Orange Polycarbonate Terminal Box, IP55, 5 Terminals, DIN 4102-12, BS EN 50200, 70 mm, 104 mm 104 mm
