ABB Grey Thermoplastic, Polyamide 66 Junction Box, IP55, IP67, IP65, IP44, IP68, No, 160 mm, 135 mm 77 mm

RS Stock No.:: 455-065
Mfr. Part No.:: 1SL0854A00 1SL0854A00
Manufacturer:: ABB

ABB Grey Thermoplastic, Polyamide 66 Junction Box, IP55, IP67, IP65, IP44, IP68, No, 160 mm, 135 mm 77 mm

View all Junction Boxes

Bulk discount available

Subtotal (1 unit)*

MYR56.82

FREE delivery for orders over RM 500.00

In Stock

134 unit(s) ready to ship from another location
Plus 108 unit(s) shipping from 16 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 11	MYR56.82
12 - 24	MYR55.63
25 +	MYR53.97

*price indicative

RS Stock No.:: 455-065
Mfr. Part No.:: 1SL0854A00 1SL0854A00
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Width	135 mm
	Product Type	Junction Box
	Length	160mm
	Material	Thermoplastic, Polyamide 66
	Height	77mm
	IP Rating	IP55, IP67, IP65, IP44, IP68
	Colour	Grey
	Hazardous Area Certification	No
	Cable Entry	Cable Gland
	Standards/Approvals	IMQ mark, UL 94 HB, UL 94 V2, IEC 60670-22, RoHS, IEC 60670-1, CEI EN 50262, IEC 60695-2-11

	Select all
	Brand ABB
	Width 135 mm
	Product Type Junction Box
	Length 160mm
	Material Thermoplastic, Polyamide 66
	Height 77mm
	IP Rating IP55, IP67, IP65, IP44, IP68
	Colour Grey
	Hazardous Area Certification No
	Cable Entry Cable Gland
	Standards/Approvals IMQ mark, UL 94 HB, UL 94 V2, IEC 60670-22, RoHS, IEC 60670-1, CEI EN 50262, IEC 60695-2-11

RoHS Status: Exempt

COO (Country of Origin):: BG

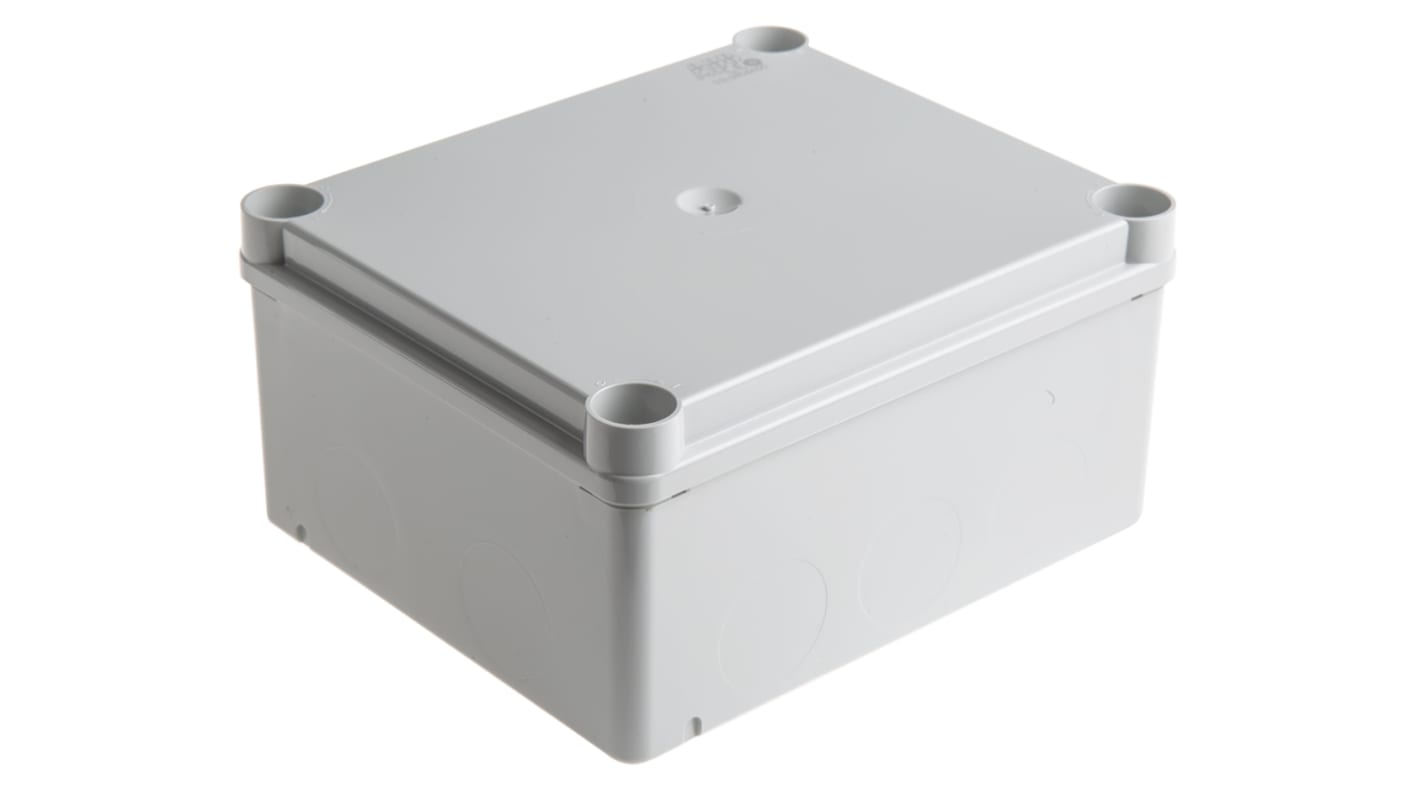

ABB Junction Box, Wall Mounting, 325g Net Weight - 1SL0854A00

Need a reliable way to protect your electrical equipment? Cover your connections with this grey junction box from ABB. It's a simple and speedy solution to protect against damage caused by everything from weathering to vandalism and contaminants. The unit's thermoplastic housing bears the brunt of impacts, meaning sensitive elements such as wire splices don't have to. It's also chemical-resistant, so you can safely install it in harsh industrial settings. Stow your components safely in the box and keep them out of sight under the screw-on blind cover.

Features & Benefits

• IP65 rating for protection against dust and low-pressure water jets from any direction

• Discreet grey colour for inconspicuous installation in busy settings

Applications

• Warehouses

• Retail premises

• Hospitals and medical centres

How big is this junction box?

The dimensions of the enclosure are 77 (L) x 160 (W) x 135mm (H), so it's a space-saving component.

Can I use this box with high-power electrical systems?

Yes, it has a rated insulation voltage of up to 1500V, so it's safe to use with heavy-duty equipment.
