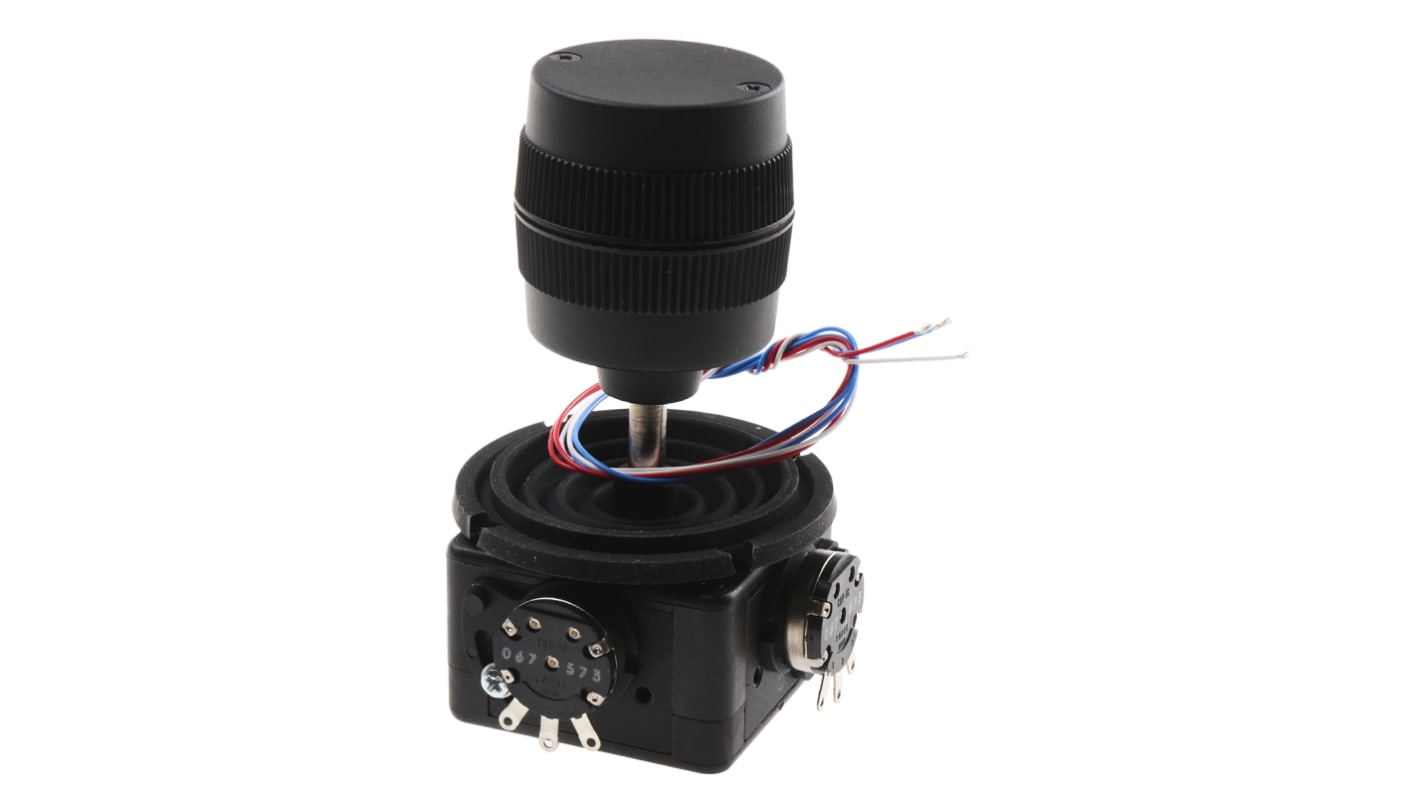

Apem 3-Axis Joystick Switch Button, Potentiometric
- RS Stock No.:
- 693-2338
- Mfr. Part No.:
- M31L081A
- Manufacturer:
- APEM
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,432.04
| Units | Per Unit |
| 1 - 49 | MYR1,432.04 |
| 50 + | MYR1,401.96 |
- RS Stock No.:
- 693-2338
- Mfr. Part No.:
- M31L081A
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
M Series Resistive Joysticks
The M series miniature joysticks prides itself as being the No 1 selling joystick for CCTV systems in the world. These low profile potentiometric controllers provide precise multi-axis finger-positioning control.
Features & Benefits
Potentiometer sensing, very precise
Low profile
Shallow behind panel depth
Rotational Life: 1000000 operations
Low profile
Shallow behind panel depth
Rotational Life: 1000000 operations
Product Application Information
The low profile design of these joysticks makes them ideal for CCTV systems, network/IP cameras, remote controls and electric wheelchairs. They can also be used in ROV, factory automation and medical devices.
This is a three axis joystick. Moving the handle will control the X and Y axis. Rotating the upper part of the handle will control the Z axis (typically zoom for CCTV systems). It comes equipped with a rubber boot kit mounting bezel and is sprung to centre.
Specifications
Attribute | Value |
|---|---|
| Number of Axes | 3 |
| Switch Technology | Potentiometric |
| Handle Type | Button |
| Joystick Travel | ±28 ° |
| Mechanical Life | 7 x 10⁶Operations |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -10 → +85°C |
