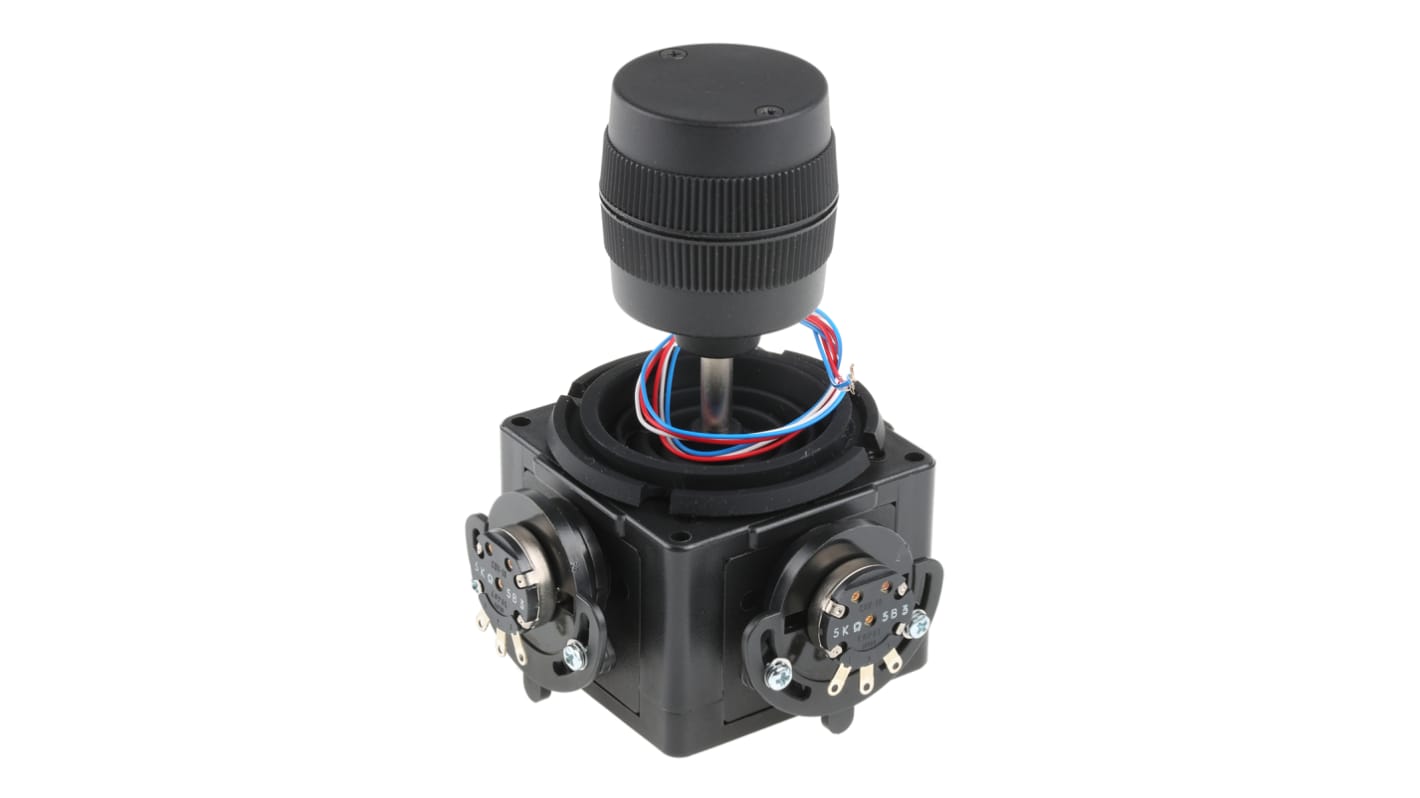

CH Products 3-Axis Potentiometer Joystick Castle, Passive

The CH Products 3 way potentiometer joystick has an operating life of 5000000. It is a low profile potentiometric controller providing precision multi-axes finger-positioning control. This self-centering potentiometer joystick is ideal for applications where high accuracy and low operating force is a priority, such as in electric wheelchair, CCTV and robotics applications.

Potentiometers resistance is 5kohm ±20%
Potentiometers linearity is ±5%
Panel thickness is 1.3mm to 4.75mm
Operating temperature ranges between -25°C and 85°C

Dual and 3-axes self-centring joystick with a 2-piece panel sealing kit
3rd axis control achieved using rotational displacement of the handle
SPST switch option on the 3-axes model
Stainless steel ball pivot system and high-grade plastic bearing surfaces for long life and accurate return to centre repeatability
Potentiometers power is 0.5W

Electric wheelchairs
CCTVs
Robotics applications
