Maxim Integrated, 1 I/O, Input Output Controller, 6-Pin TDFN
- RS Stock No.:
- 231-6777P
- Mfr. Part No.:
- DS2485Q+T
- Manufacturer:
- Maxim Integrated

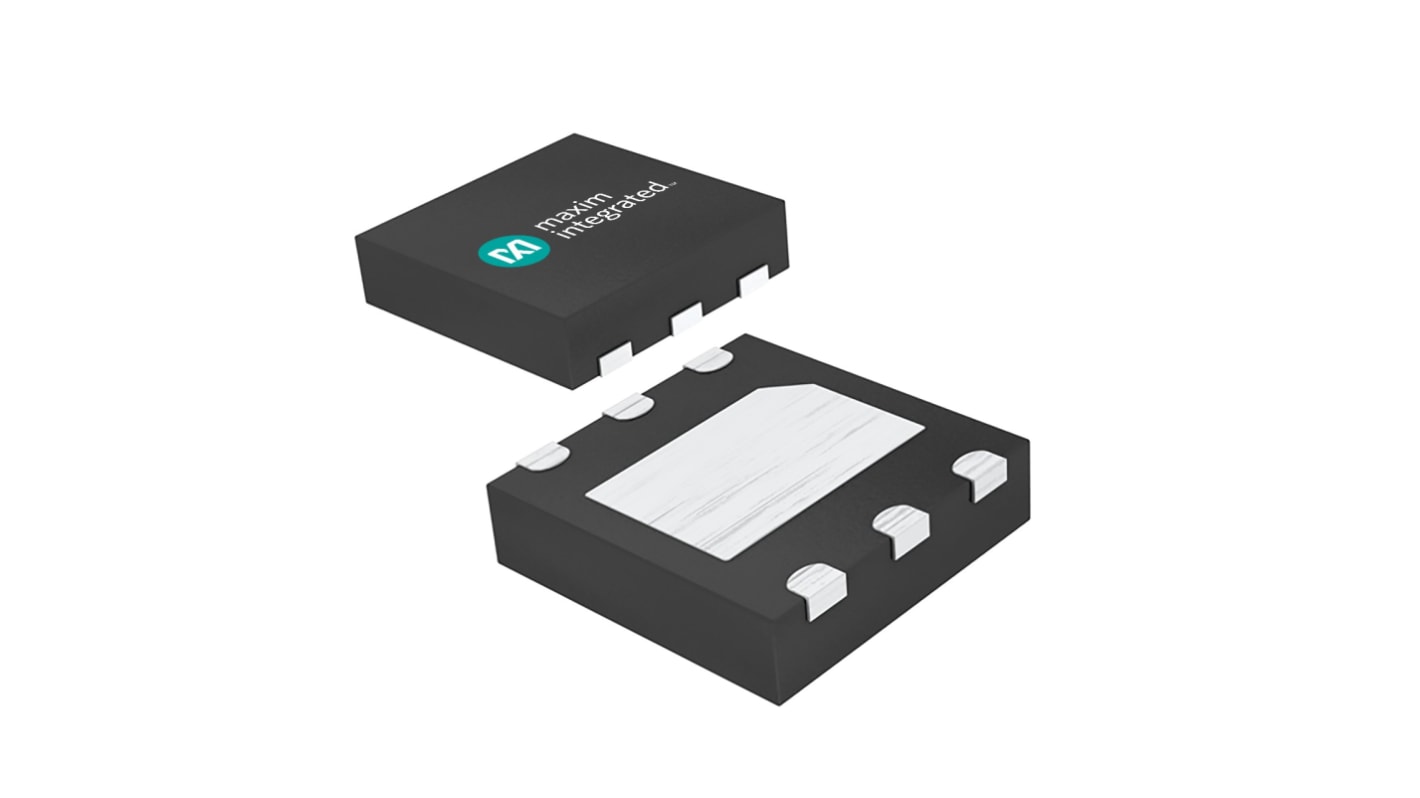

This image is representative of the product range
Subtotal 5 units (supplied on a continuous strip)*
MYR70.25
FREE delivery for orders over RM 500.00
Last RS stock
- Final 445 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 5 + | MYR14.05 |
*price indicative
- RS Stock No.:
- 231-6777P
- Mfr. Part No.:
- DS2485Q+T
- Manufacturer:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Input Output Controller | |
| Sub Type | Interface Module | |
| LAN Controller | No | |
| IDE Controller | No | |
| PCI Support | No | |
| Mount Type | Surface | |
| Serial ATA | No | |
| Number of I/O Channels | 1 | |
| DMA Controller | No | |
| Interface Type | 1 Wire | |
| Package Type | TDFN | |
| Minimum Supply Voltage | 2.97V | |
| Maximum Supply Voltage | 3.63V | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 3.1 mm | |
| Length | 3.1mm | |
| Height | 0.8mm | |
| Standards/Approvals | No | |
| Series | DS2485 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Input Output Controller | ||
Sub Type Interface Module | ||
LAN Controller No | ||
IDE Controller No | ||
PCI Support No | ||
Mount Type Surface | ||
Serial ATA No | ||
Number of I/O Channels 1 | ||
DMA Controller No | ||
Interface Type 1 Wire | ||
Package Type TDFN | ||
Minimum Supply Voltage 2.97V | ||
Maximum Supply Voltage 3.63V | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 3.1 mm | ||
Length 3.1mm | ||
Height 0.8mm | ||
Standards/Approvals No | ||
Series DS2485 | ||
Automotive Standard No | ||
The Maxim Integrated 1-Wire master that performs protocol conversion between the I2C master and any attached 1-Wire slaves. For 1-Wire line driving, internal user-adjustable timers relieve the system host processor from generating time-critical 1-Wire waveforms, supporting both standard and overdrive 1-Wire communication speeds. The 1-Wire master has selectable active or passive 1-Wire pull-up. Strong pull-up features support 1-Wire power delivery for 1-Wire devices that require this for EEPROMs and cryptographic computations.
Voltage range on any pin relative to GND -0.5V to 4.0V
Maximum current into any pin -20mA to 20mA
Operating temperature range -40°C to +85°C
Junction temperature +150°C
Soldering temperature (reflow) +260°C
