Infineon FF1200R12IE5PBPSA1, N-Channel Inverter, 1.2 kA 1.2 kV, 10-Pin PRIME2, Surface
- RS Stock No.:
- 218-4320
- Mfr. Part No.:
- FF1200R12IE5PBPSA1
- Manufacturer:
- Infineon

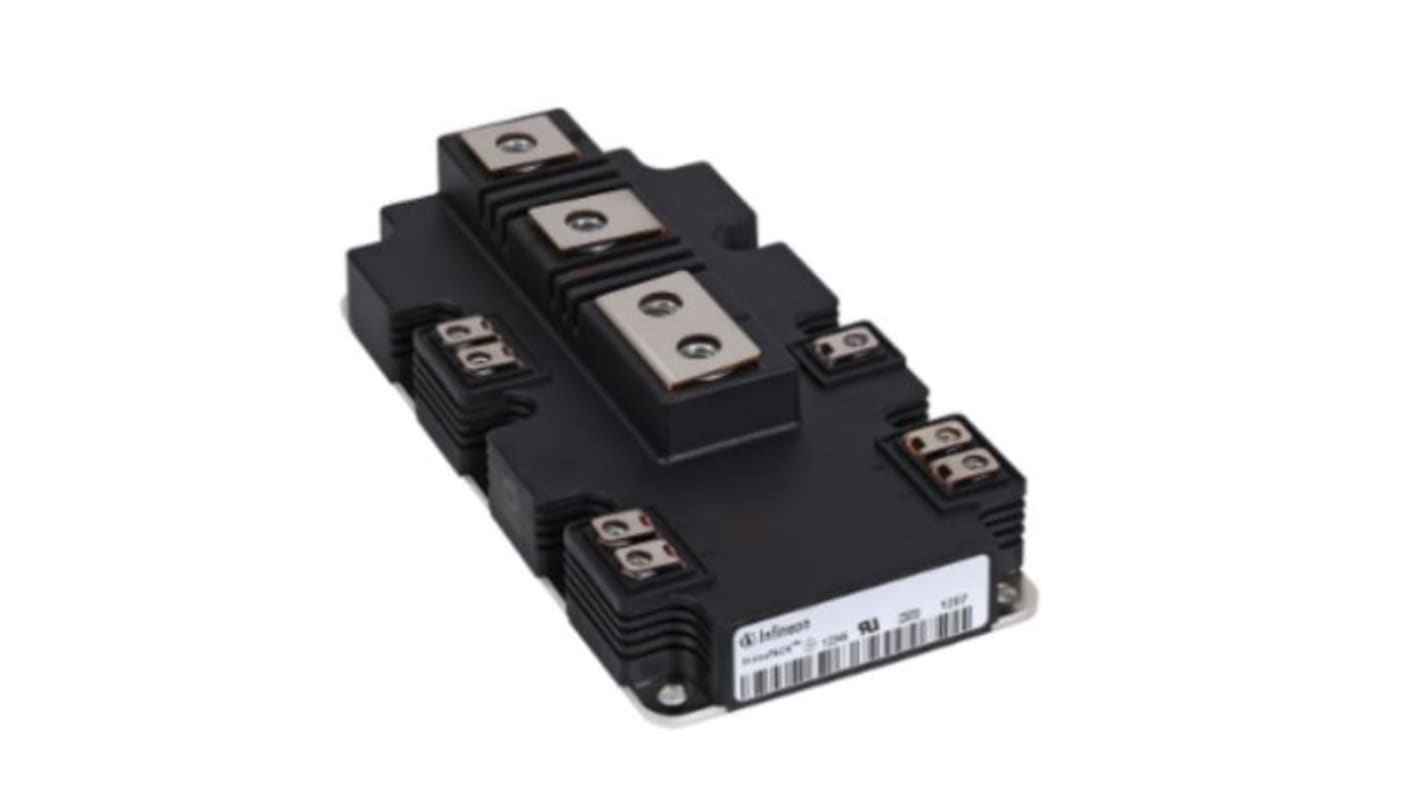

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tray of 3 units)*
MYR11,229.59
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 3 - 3 | MYR3,743.197 | MYR11,229.59 |
| 6 - 9 | MYR3,685.55 | MYR11,056.65 |
| 12 + | MYR3,613.68 | MYR10,841.04 |
*price indicative
- RS Stock No.:
- 218-4320
- Mfr. Part No.:
- FF1200R12IE5PBPSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 1.2kA | |
| Product Type | Inverter | |
| Maximum Collector Emitter Voltage Vceo | 1.2kV | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 20mW | |
| Package Type | PRIME2 | |
| Mount Type | Surface | |
| Channel Type | N | |
| Pin Count | 10 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V | |
| Maximum Operating Temperature | 175°C | |
| Series | FF1200R12IE5P | |
| Height | 22mm | |
| Length | 172mm | |
| Standards/Approvals | No | |
| Width | 89mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 1.2kA | ||
Product Type Inverter | ||
Maximum Collector Emitter Voltage Vceo 1.2kV | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 20mW | ||
Package Type PRIME2 | ||
Mount Type Surface | ||
Channel Type N | ||
Pin Count 10 | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.15V | ||
Maximum Operating Temperature 175°C | ||
Series FF1200R12IE5P | ||
Height 22mm | ||
Length 172mm | ||
Standards/Approvals No | ||
Width 89mm | ||
Automotive Standard No | ||
The Infineon PrimePack dual IGBT module with TRENCHSTOP IGBT5 and .XT interconnection technology. It has collector emitter voltage of 1200 V. The N-Channel TRENCHSTOP and field stop IGBT Modules are suitable for hard switching and soft switching applications such as high power converters, UPS system, motor drives and solar applications.
Copper bonds for high current carrying capabilities
Sintering of chips for highest power cycling capabilities
Total losses reduced by up to 20%
Less cooling effort for same output power
Enables higher system overload conditions
