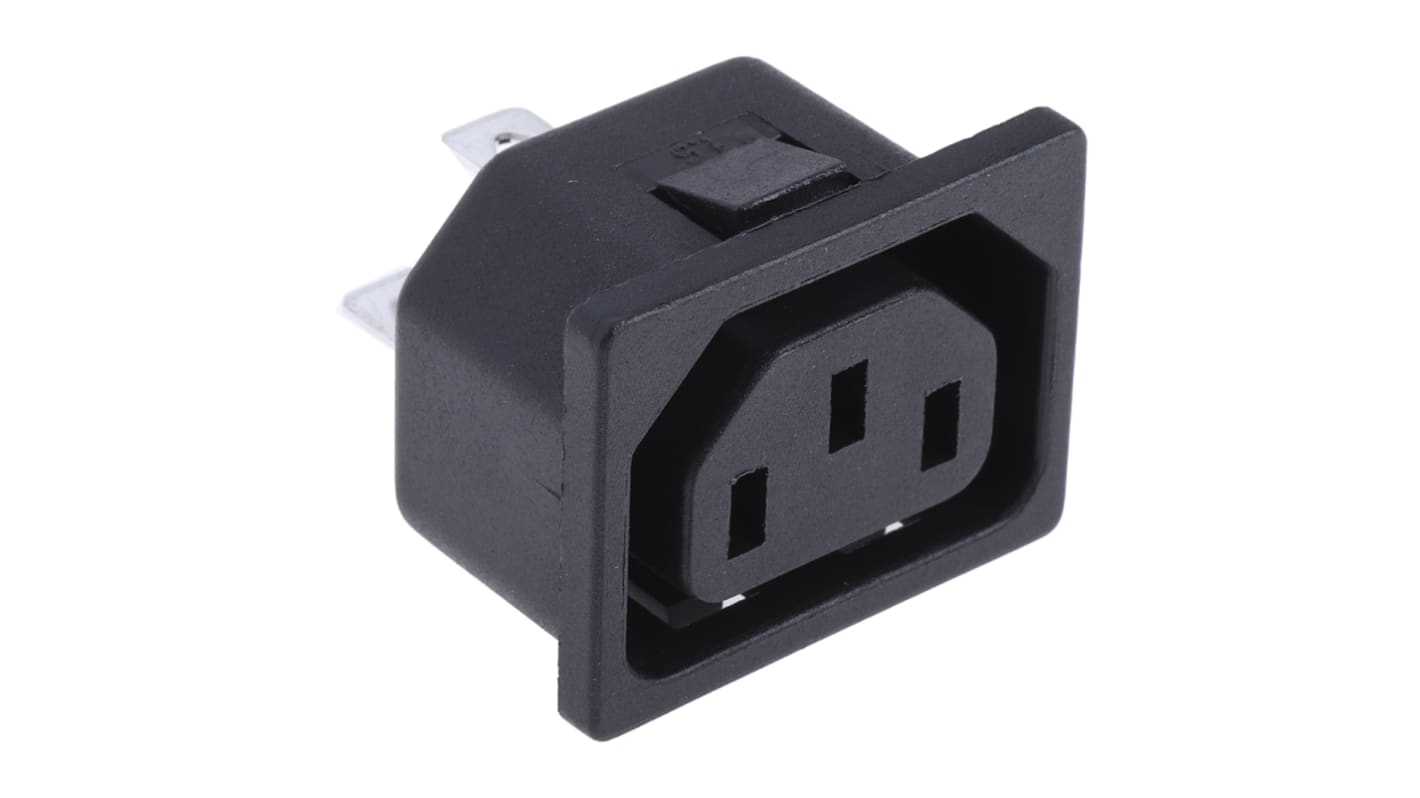

    RS PRO C13 Snap-In IEC Connector Socket, 15A, 250 V

    RS Stock No.:
    776-9138
    Manufacturer:
    RS PRO
    RS PRO
    View all IEC Connectors
    17789 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    Was MYR12.14

    You pay

    MYR10.10

    unitsPer Unit
    1 - 4MYR10.10
    5 +MYR8.31
    RS Stock No.:
    776-9138
    Manufacturer:
    RS PRO
    COO (Country of Origin):
    IN

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    IN

    Product Details

    IEC Socket C13, Panel Mount Connectors


    IEC socket C13 variant, snap-in panel mount outlet connectors with nylon-6 body and tin plated copper alloy mating contacts and faston terminals. These C13 connectors offers a hardwearing durable solution for many applications that require IEC C13 snap-in panel mount socket connectors.

    What are IEC C13 Connectors?


    Features and Benefits:
    • HV Breakdown Test for 1 Minute: 2KVac
    • Insulation Resistance at 500Vdc 1000 MΩ min.
    • Permissible Temperature with/without load: 0 to 70 ° C
    • Contact Resistance 10 mΩ max.

    An IEC C13 connector is sometimes referred to as a ’cold’ connector. The IEC panel socket is a 3 wire two pole connector, neutral, earth and live. The C13 female connectors have a rated current of 10A and a maximum temperature rating of 70°C. This series of connectors conform to a recognised set of specifications called IEC-60320. The regulations are laid down by the IEC (International Electrotechnical Commission). This ensures they meet common global design standards.

    Features and Benefits


    • Rated at 250 V ac 10A
    • Insulation Resistance at 500 VDC 100 MΩ Min
    • Contact Resistance 10 mΩ Max
    • 0 to +65°C temperature range
    • HV Breakdown Test for 1 Minute: 2KVac
    • Black thermoplastic body
    • Appliance Class - Class I – Cold Condition
    • 4.8 mm solder tabs, simple to terminate
    • Easy to mount snap-in or screw mount
    • Single and multi-way options, 1 to 7 way
    • Mate with C14 cable plugs

    Applications


    The RS PRO C13 appliance outlets are suitable for a wide range of industrial and commercial applications. The electrical panel mount connectors are designed to mate with IEC C14 cable mount male connectors. Some of the more common applications include

    • Desktop computers
    • Monitors
    • Older Laptop power supplies
    • Printers
    • Audio and Video equipment
    • Test equipment

    FAQ


    Q – Are the IEC appliance outlets easy to connect?
    A – Yes, the RS PRO appliance outlets are easy to connect. We offer both snap-in and screw mount outlets with 4.8 mm solder tabs.
    Q – Are there any compatible mating mains type IEC 60320 connectors available?
    A – Yes, for typical mating parts see associated rewireable plug 776-9113

    Connector Types


    776-9138 is a 1x C13 snap fit outlet
    811-7193 is a 1x C13 eyelet screw mount
    896-2133 is a 2 x C13 snap fit outlet
    896-2142 is a 3 x C13 snap fit outlet
    811-7197 is a 4 x C13 snap fit outlet
    896-2149 is a 6 x C13 snap fit outlet

    896-2158 is a 7 x C13 snap fit outlet

    Note

    For associated connector see 776-9113

    Approvals

    UL(C,US), VDE, CE

    Standards

    IEC 60320-1

    Specifications

    AttributeValue
    IEC Connector TypeC13
    Mounting TypeSnap-In
    GenderFemale
    Current Rating15A
    Body OrientationStraight
    Termination MethodSolder/Faston
    Switch TypeNone
    Number of FusesNone
    Voltage Rating250 V ac
