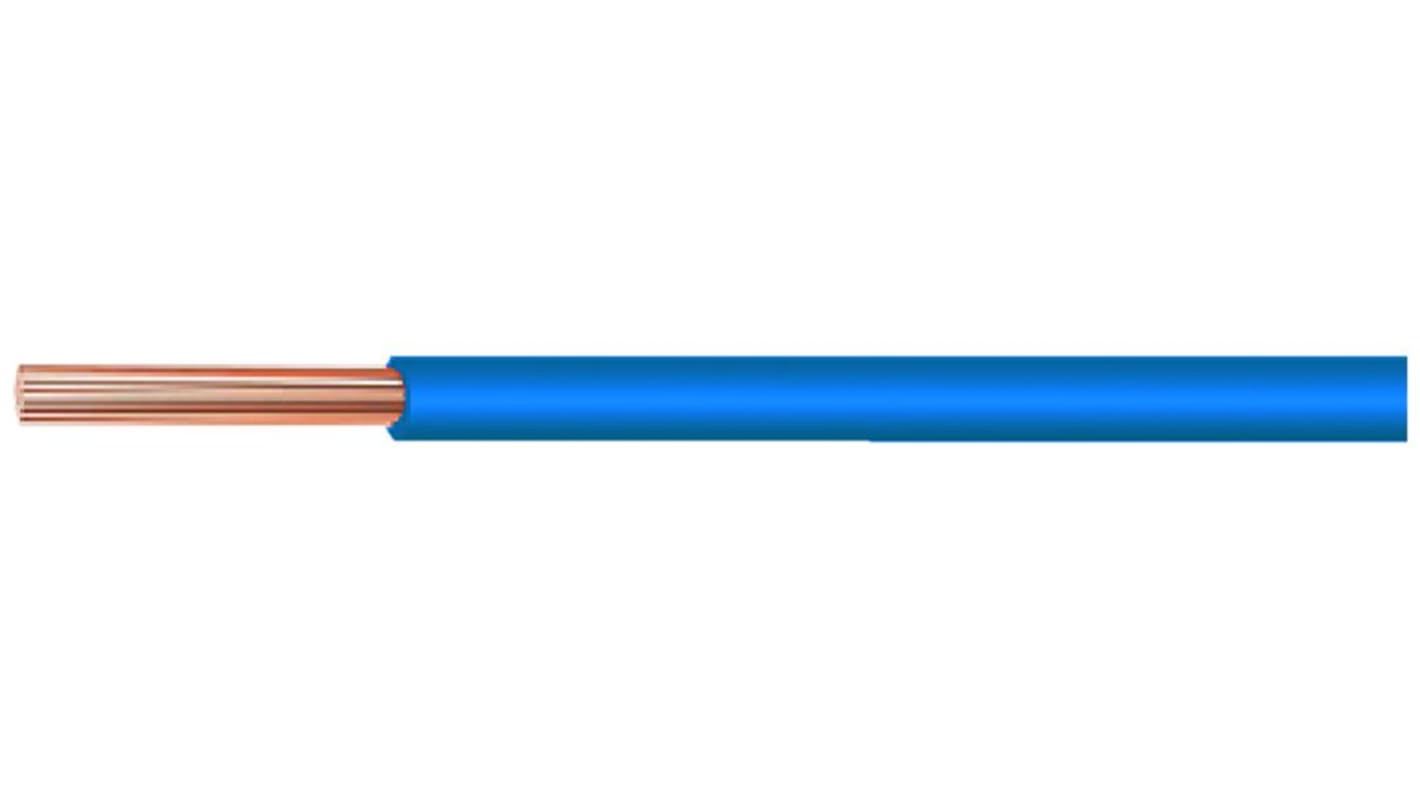

Helukabel SiF Series Blue 0.25 mm² Hook Up Wire, 24 AWG, 100 m, Silicone, 26433
- RS Stock No.:
- 288-1824
- Distrelec Article No.:
- 300-80-581
- Mfr. Part No.:
- 26433
- Manufacturer:
- Helukabel
Subtotal (1 reel of 100 metres)*
MYR126.90
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Reel* |
|---|---|---|
| 100 + | MYR1.269 | MYR126.90 |
*price indicative
- RS Stock No.:
- 288-1824
- Distrelec Article No.:
- 300-80-581
- Mfr. Part No.:
- 26433
- Manufacturer:
- Helukabel
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Cross Sectional Area | 0.25mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Blue | |
| American Wire Gauge | 24AWG | |
| Cable Length | 100m | |
| Outside Diameter | 1.3mm | |
| Voltage | 2000V | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | RoHS, IEC 60228, EC, DIN VDE 0250, 2006/95/EG | |
| Jacket Material | Silicone | |
| Cable Type | Stranded | |
| Sub Type | Hookup Wire | |
| Minimum Operating Temperature | -60°C | |
| Fire Behaviour | Flame Retardant | |
| Series | SiF | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Cross Sectional Area 0.25mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Blue | ||
American Wire Gauge 24AWG | ||
Cable Length 100m | ||
Outside Diameter 1.3mm | ||
Voltage 2000V | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals RoHS, IEC 60228, EC, DIN VDE 0250, 2006/95/EG | ||
Jacket Material Silicone | ||
Cable Type Stranded | ||
Sub Type Hookup Wire | ||
Minimum Operating Temperature -60°C | ||
Fire Behaviour Flame Retardant | ||
Series SiF | ||
- COO (Country of Origin):
- DE
The receptacle connector, M12 female connector for front mounting, 5 poles, adjustable, assembled stranded wire, solder contacts potted with epoxy.
Comes with M12 connector size
IP rating of IP67
