Infineon, IGBT, 4 A 8-Pin 22 V, PG-DSO-8
- RS Stock No.:
- 244-1575
- Mfr. Part No.:
- 2EDN7424FXTMA1
- Manufacturer:
- Infineon

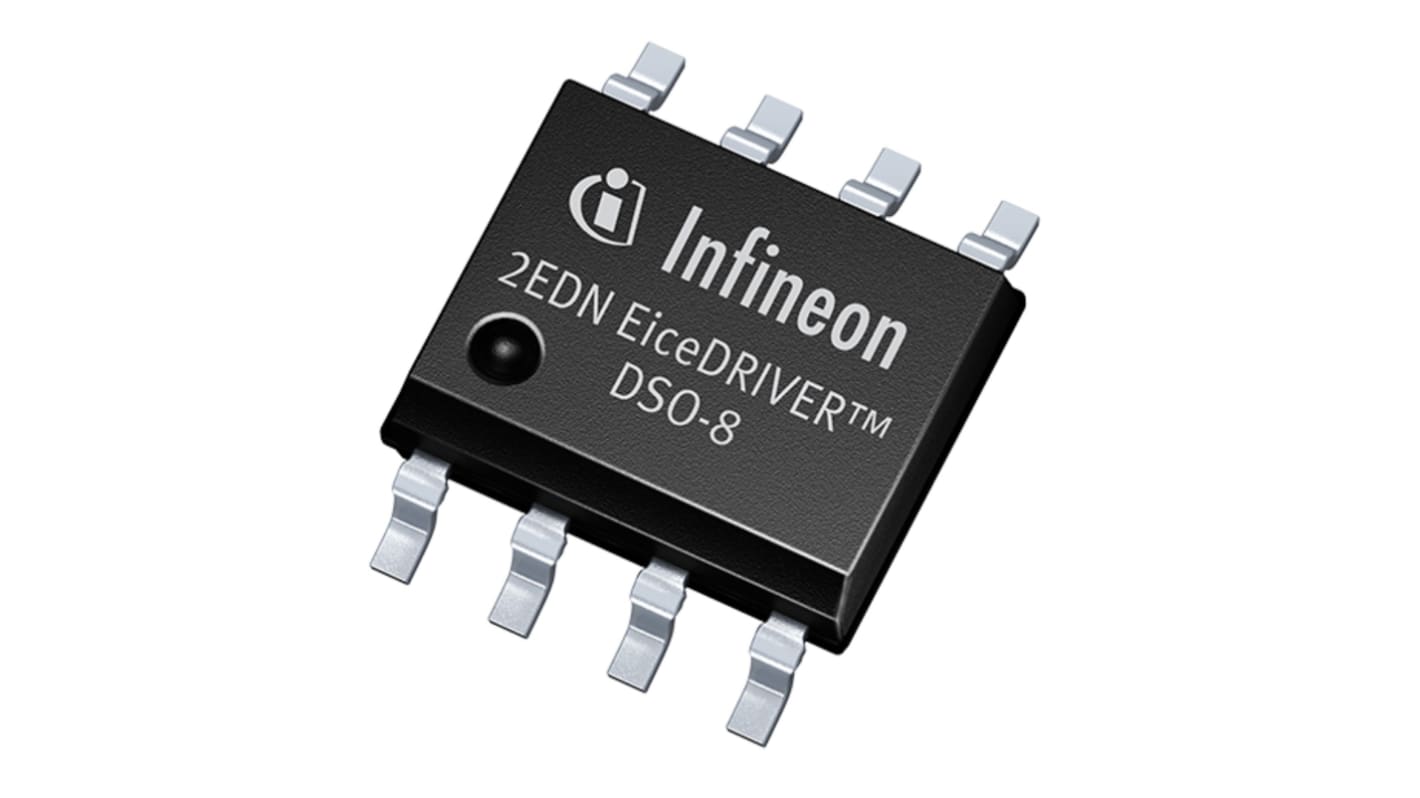

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2500 units)*
MYR6,580.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | MYR2.632 | MYR6,580.00 |
| 5000 - 5000 | MYR2.105 | MYR5,262.50 |
| 7500 + | MYR1.895 | MYR4,737.50 |
*price indicative
- RS Stock No.:
- 244-1575
- Mfr. Part No.:
- 2EDN7424FXTMA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT Module | |
| Output Current | 4A | |
| Pin Count | 8 | |
| Package Type | PG-DSO-8 | |
| Fall Time | 10ns | |
| Driver Type | IGBT | |
| Minimum Supply Voltage | 22V | |
| Maximum Supply Voltage | 22V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | DIN EN 60747-5-2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT Module | ||
Output Current 4A | ||
Pin Count 8 | ||
Package Type PG-DSO-8 | ||
Fall Time 10ns | ||
Driver Type IGBT | ||
Minimum Supply Voltage 22V | ||
Maximum Supply Voltage 22V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals DIN EN 60747-5-2 | ||
Automotive Standard No | ||
The Infineon Fast Dual Channel 4 A Low-Side Gate Driver 4 is an advanced dual-channel driver. It is suited to drive logic and normal level MOSFETs and supports OptiMOSTM, CoolMOSTM, Standard Level MOSFETs, Super junction MOSFETs, as well as IGBTs and GaN Power devices. The control and enable inputs are LV-TTL compatible (CMOS 3.3 V) with an input voltage range up to +22V. 4.2 V (Under Voltage Lock Out) options ensure instant MOSFET and GaN protection under abnormal conditions, Under such circumstances, this UVLO mechanism provides crucial independence from whether and when other supervisors circuitries detect abnormal conditions, Each of the two outputs is able to sink and source 4 A currents utilizing a true rail-to rail stage.
Highly efficient SMPS
1 ns channel-to-channel propagation delay accuracy
Two independent 4 A channels
Ease system-design upgrades
Qualified for industrial grade applications
