Infineon 2ED2183S06FXUMA1 MOSFET Gate Driver 2, 2.5 A 8-Pin 20 V, DSO

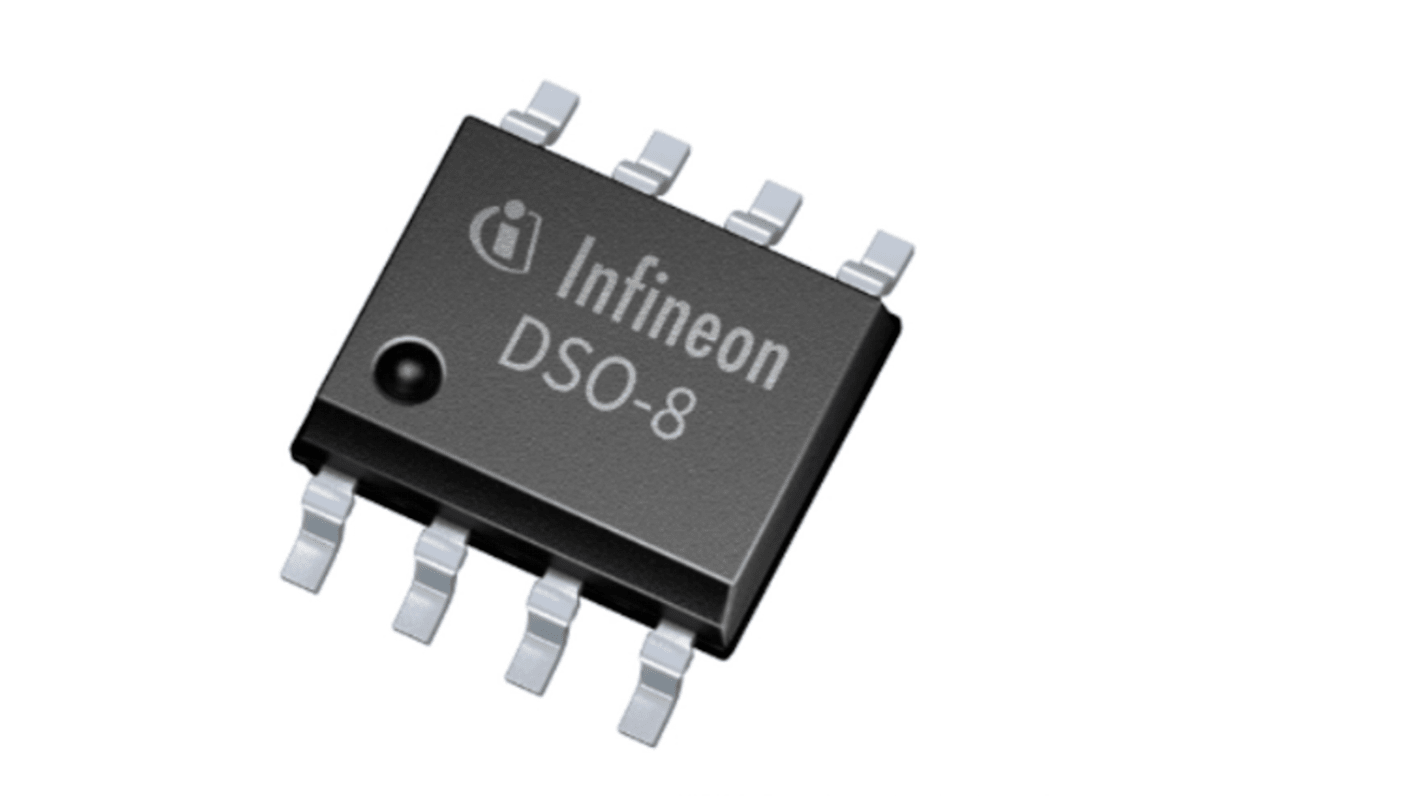

This image is representative of the product range

View all Gate Drivers

Subtotal (1 pack of 5 units)*

MYR40.90

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
5 +MYR8.18MYR40.90

*price indicative

Packaging Options:
RS Stock No.:
226-6031
Mfr. Part No.:
2ED2183S06FXUMA1
Manufacturer:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Output Current

2.5A

Pin Count

8

Fall Time

30ns

Package Type

DSO

Driver Type

MOSFET

Number of Outputs

2

Rise Time

15ns

Minimum Supply Voltage

20V

Number of Drivers

2

Maximum Supply Voltage

20V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

2ED2183S06F

Standards/Approvals

No

Length

4.9mm

Height

1.72mm

Width

3.9 mm

Mount Type

Surface

Automotive Standard

No

The Infineon 2ED2183S06F is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. It is based on SOI-technology there is an excellent ruggedness and noise immunity with capability to maintain operational logic at negative voltages of up to - 11 Von VS pin on transient voltage. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Floating channel designed for bootstrap operation

Operating voltages (VS node) upto + 650 V

Maximum bootstrap voltage (VB node) of + 675 V

Integrated ultra-fast, low resistance bootstrap diode
