Phoenix Contact 6.3A Base Mount Fuse Holder, 1P-Pole for 5 x 20 mm, 60V dc
- RS Stock No.:
- 207-2666
- Mfr. Part No.:
- 1054762
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR82.99
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR82.99 |
*price indicative
- RS Stock No.:
- 207-2666
- Mfr. Part No.:
- 1054762
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Base Mount Fuse Holder | |
| Current Rating | 6.3A | |
| Voltage | 60V dc | |
| Number of Poles | 1 | |
| Body Material | Polybutylene Terephthalate | |
| Compatible Fuse Size | 5 x 20 mm | |
| Minimum Operating Temperature | -40°C | |
| Fixing Screw Size | M3 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EN 60947-7-3:2009 | |
| Series | TTC-6 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Base Mount Fuse Holder | ||
Current Rating 6.3A | ||
Voltage 60V dc | ||
Number of Poles 1 | ||
Body Material Polybutylene Terephthalate | ||
Compatible Fuse Size 5 x 20 mm | ||
Minimum Operating Temperature -40°C | ||
Fixing Screw Size M3 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EN 60947-7-3:2009 | ||
Series TTC-6 | ||

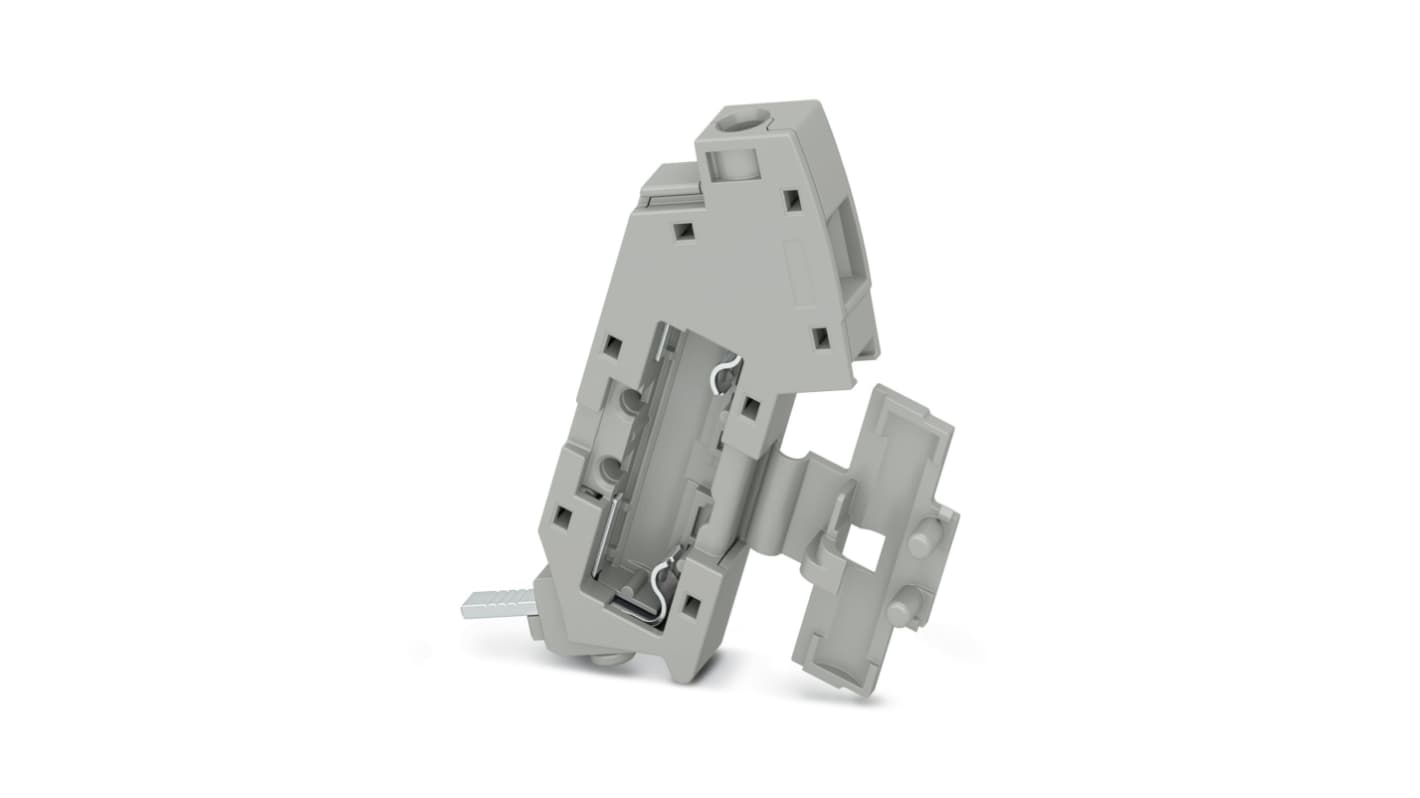

The Phoenix Contact fuse holder is designed for surge protective devices of the TERMITRAB complete product range with screw connection technology. It can be used with conventional 5x20 mm miniature fuses.
Multi-level connection on TTC-6 housings possible
