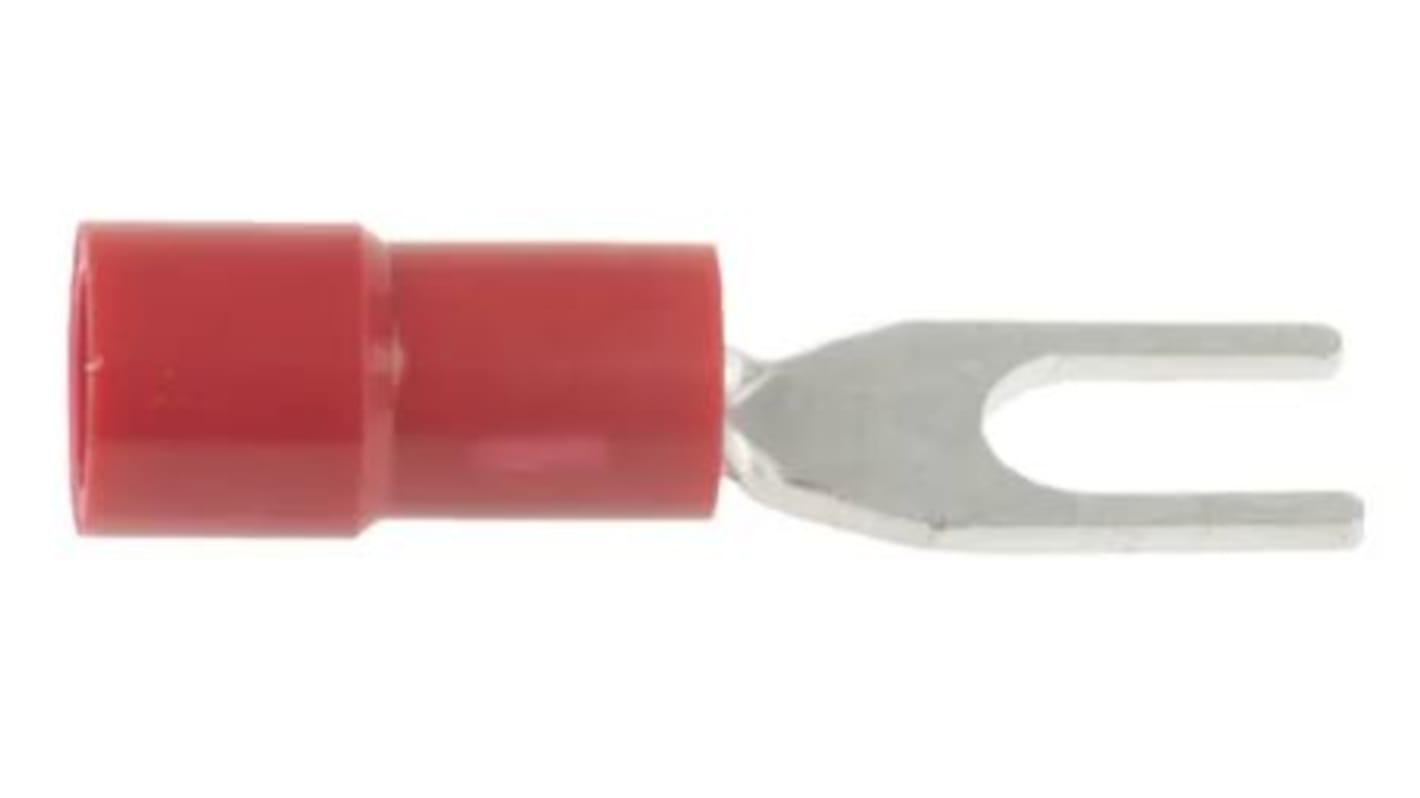

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.7mm Stud Size Vinyl, Red
- RS Stock No.:
- 270-7656
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR184.50
11500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 4500 | MYR0.369 | MYR184.50 |
| 5000 - 9500 | MYR0.36 | MYR180.00 |
| 10000 + | MYR0.348 | MYR174.00 |
**price indicative
- RS Stock No.:
- 270-7656
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Width | 5.7mm | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | 3.7mm | |
| Colour | Red | |
| Contact Plating | Tin | |
| Overall Length | 22mm | |
| Contact Material | Copper | |
| Thickness | 0.75mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Width 5.7mm | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size 3.7mm | ||
Colour Red | ||
Contact Plating Tin | ||
Overall Length 22mm | ||
Contact Material Copper | ||
Thickness 0.75mm | ||
