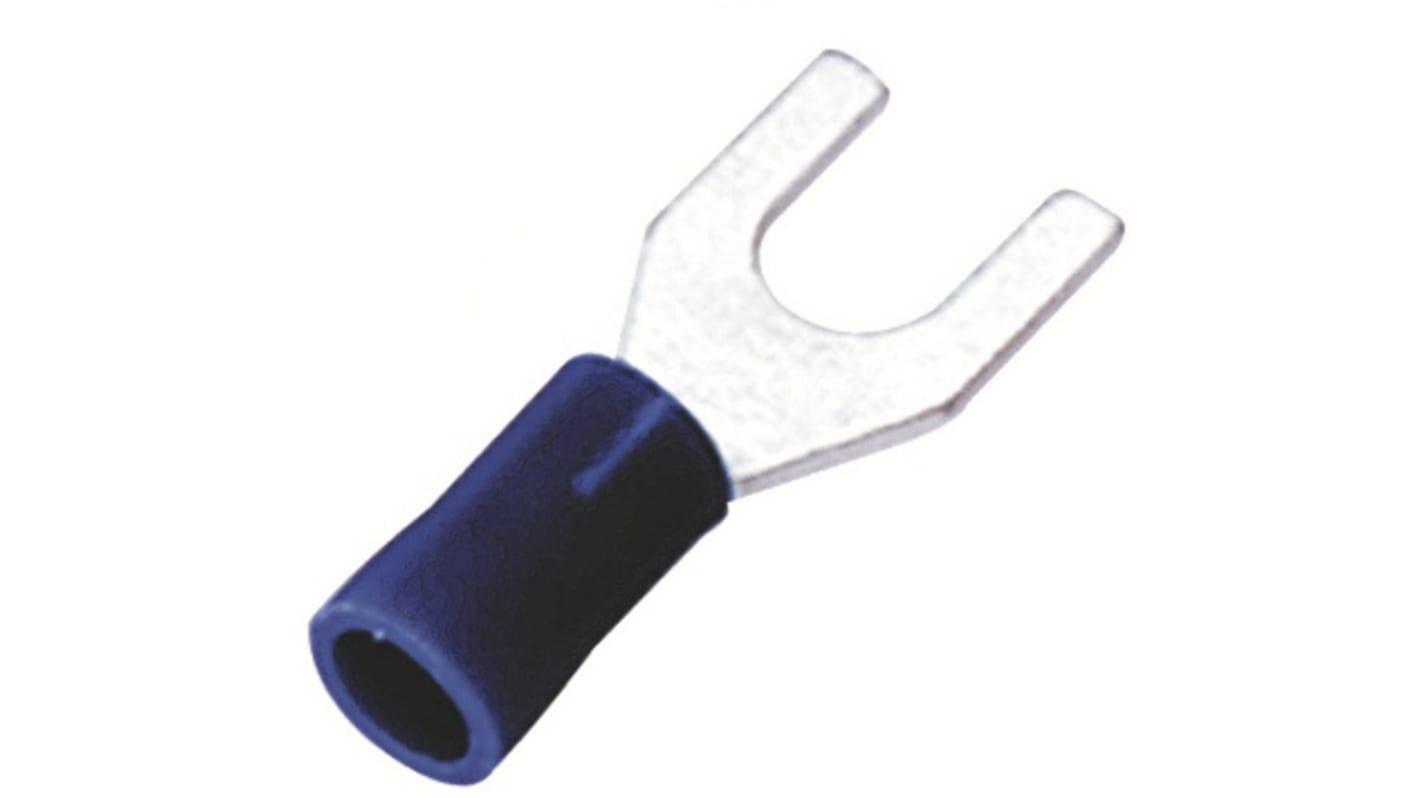

RS PRO Insulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 5.3mm Stud Size Vinyl, Blue
- RS Stock No.:
- 178-8721
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
MYR35.00
MYR35.00
FREE delivery for orders over RM 500.00
In Stock
- Plus 3,000 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 100 - 900 | MYR0.35 | MYR35.00 |
| 1000 - 1900 | MYR0.342 | MYR34.20 |
| 2000 - 4900 | MYR0.332 | MYR33.20 |
| 5000 - 24900 | MYR0.324 | MYR32.40 |
| 25000 + | MYR0.267 | MYR26.70 |
*price indicative
- RS Stock No.:
- 178-8721
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Width | 9.3mm | |
| Minimum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Stud Size | 5.3mm | |
| Colour | Blue | |
| Overall Length | 21mm | |
| Contact Material | Copper | |
| Thickness | 0.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Width 9.3mm | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 14AWG | ||
Stud Size 5.3mm | ||
Colour Blue | ||
Overall Length 21mm | ||
Contact Material Copper | ||
Thickness 0.8mm | ||
- COO (Country of Origin):
- TW
The RS PRO Insulated spade connector has overall length of 21mm with thickness of 0.8mm and wire size of 14AWG.
Colour: Blue
Maximum Temperature Range: 105°C
Maximum Temperature Range: 105°C
