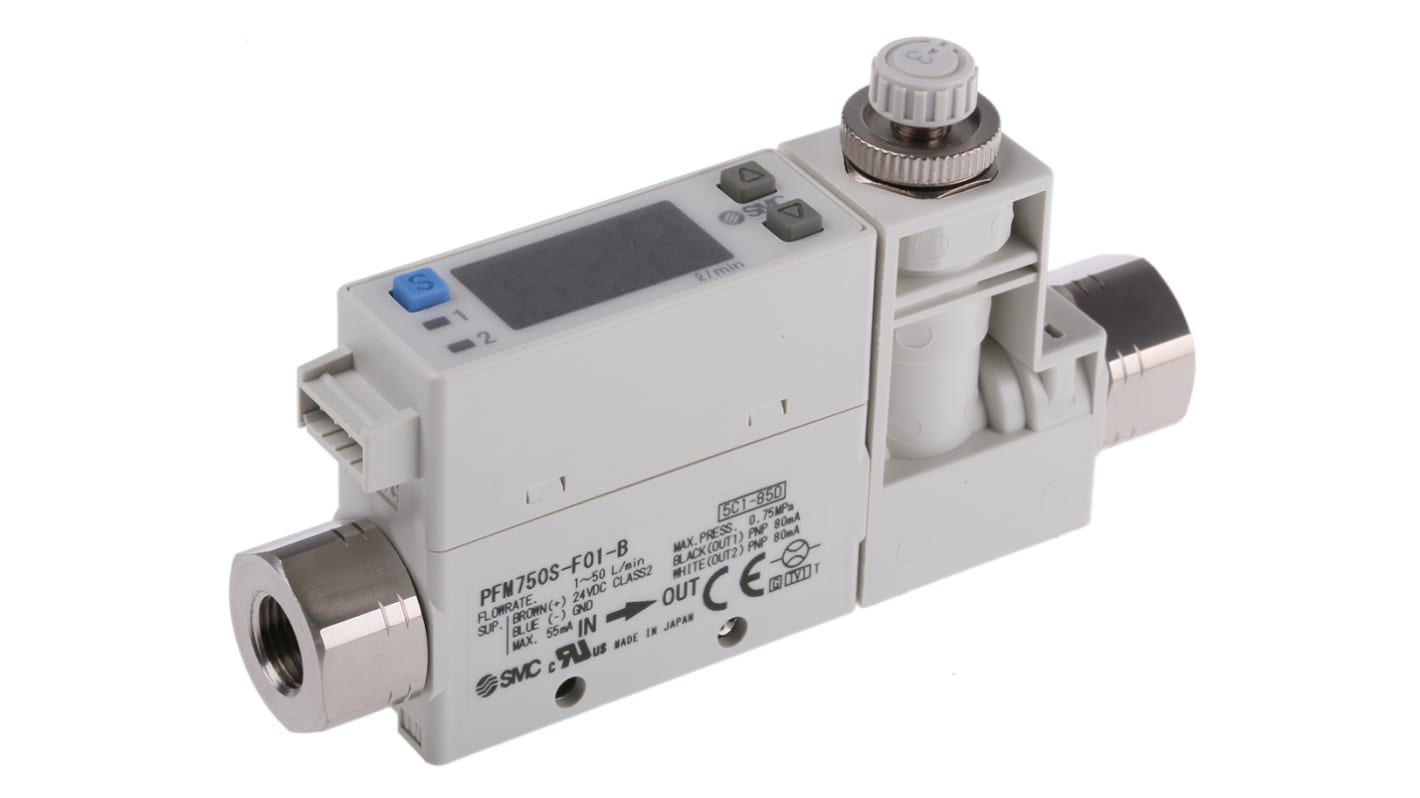

SMC PFM750 Series, Compact Flow Switch, 50L/min, PNP Output, 0.125 in Pipe 24V dc

RS Stock No.:: 721-3963
Mfr. Part No.:: PFM750S-F01-B
Manufacturer:: SMC

SMC PFM750 Series, Compact Flow Switch, 50L/min, PNP Output, 0.125 in Pipe 24V dc

View all Flow Controllers

Subtotal (1 unit)*

MYR1,655.39

FREE delivery for orders over RM 150.00

Temporarily out of stock

4 unit(s) shipping from 04 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,655.39

*price indicative

RS Stock No.:: 721-3963
Mfr. Part No.:: PFM750S-F01-B
Manufacturer:: SMC

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Flow Switch
	Maximum Flow Rate	50L/min
	Control Output	PNP
	Display Screen	LED
	Mount Type	Compact
	Maximum Pipe Diameter	0.125in
	Minimum Operating Temperature	0°C
	Maximum Supply Voltage	24V dc
	Maximum Operating Temperature	50°C
	Standards/Approvals	CE
	Hazardous Area Certification	No
	Current Rating	80mA
	Series	PFM750

	Select all
	Brand SMC
	Product Type Flow Switch
	Maximum Flow Rate 50L/min
	Control Output PNP
	Display Screen LED
	Mount Type Compact
	Maximum Pipe Diameter 0.125in
	Minimum Operating Temperature 0°C
	Maximum Supply Voltage 24V dc
	Maximum Operating Temperature 50°C
	Standards/Approvals CE
	Hazardous Area Certification No
	Current Rating 80mA
	Series PFM750

SMC PFM750 Series Flow Switch, 24V DC Maximum Supply Voltage, 50L/min Maximum Flow Rate - PFM750S-F01-B

This flow switch is a compact digital monitor designed to measure and control gas flow in pneumatic systems. It provides real-time visual feedback via a two-colour LED display and issues switching signals to external control circuits. Suited to dry air and inert gases, it operates within typical industrial ambient and fluid temperature ranges and integrates an adjustable valve for on-site flow setting.

Features and Benefits:

• 1-50 l/min flow range supports fine control for dry gases
• 24 VDC supply enables low-voltage system integration
• PNP open-collector outputs allow direct PLC interfacing
• LED two-colour display gives immediate flow status indication
• 80 mA maximum load current minimises power draw on circuits
• Internal response time selectable down to 50 ms for fast detection

Applications

• Suitable for monitoring pneumatic lines in assembly cells
• Ideal for detecting flow loss in plant air distribution
• Used with CO2 processes requiring reduced range settings
• Can be used for in-line flow control of inert gas feeds
• Suitable for integration in compact machine panels

What fluids can it measure reliably?

It is specified for dry air, N2, Ar and CO2 with air quality meeting ISO 8573-1:2010, classes 1.2 to 1.6.2.

How is the flow threshold adjusted on-site?

Adjustment is effected with the integrated flow adjustment valve and the digital set function visible on the LED readout.

What protection is provided for the switch outputs?

Outputs include short-circuit and overcurrent protection and are rated for 80 mA maximum load.

What environmental limits should be observed for reliable operation?

Operate between 0°C and 50°C with 35-85% RH (no condensation)

storage limits differ from operating ranges.
