Sensata / Cynergy3 RSF100 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 124-2557
- Mfr. Part No.:
- RSF104Y100JN/RS
- Manufacturer:
- Sensata / Cynergy3
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR113.88
Units | Per Unit |
1 + | MYR113.88 |
- RS Stock No.:
- 124-2557
- Mfr. Part No.:
- RSF104Y100JN/RS
- Manufacturer:
- Sensata / Cynergy3
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

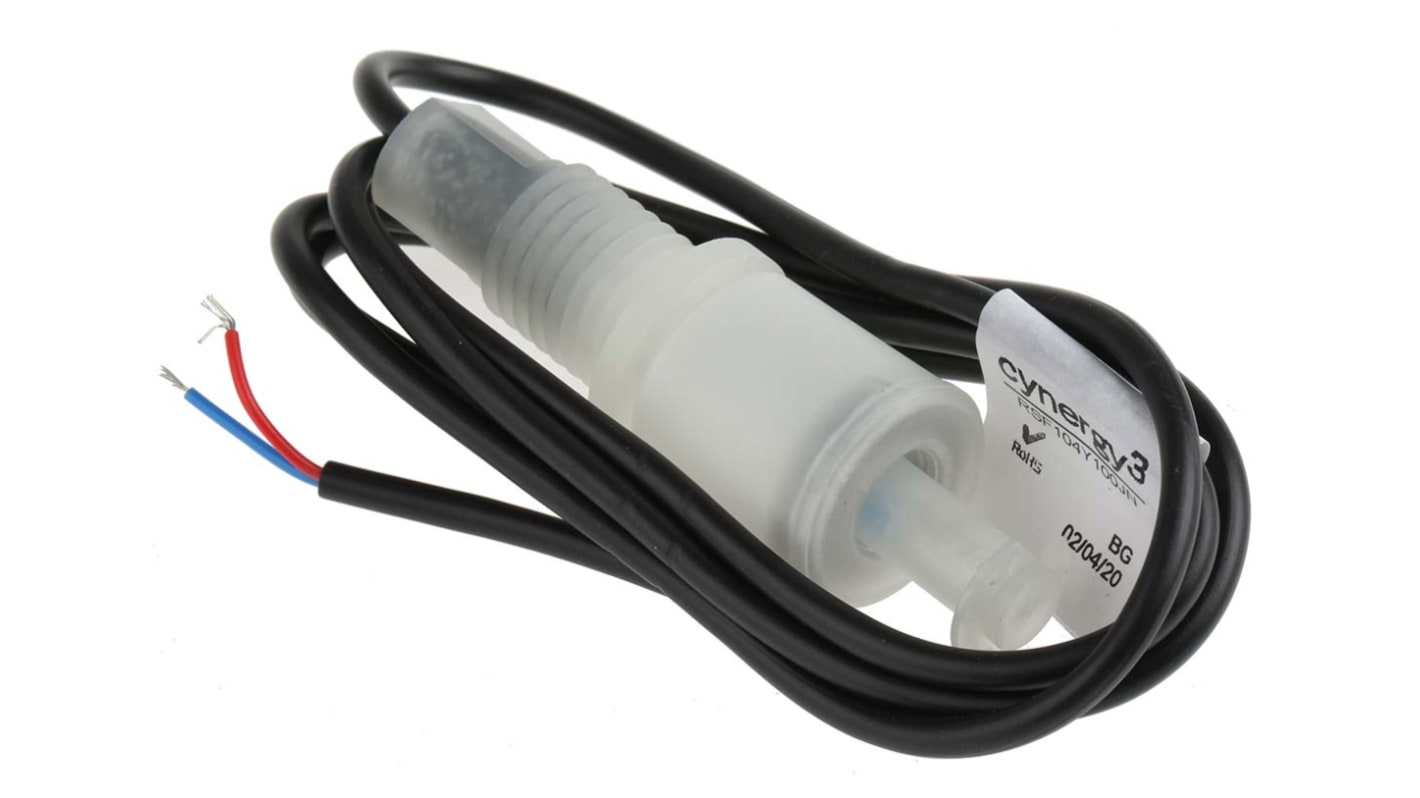

Sensata Cynergy3 Vertical Float Switch, NO/NC, 120V DC - RSF100 Series - RSF104Y100JN/RS
Use this vertical float switch from Sensata Cynergy3 to monitor liquid levels in small tanks. Thanks to its small float length of 43mm and its compact width of 21.5mm, it will take up minimal space. The polypropylene body material is resistant to heat, chemicals and wear for durability in demanding applications. Its switching current of 600mA makes it an energy-efficient choice. Use this float switch to control liquid levels in food processing, agriculture and the pharmaceutical processing industry.
Features & Benefits
• Choice between NO and NC operation by inverting the float for versatile operation
• Cable length of 1m for a flexible electrical connection
• Cable sheath made of PVC to protect wiring against moisture and wear
• Wide operating temperature range between -20°C and +100°C for use in demanding environments
• Cable length of 1m for a flexible electrical connection
• Cable sheath made of PVC to protect wiring against moisture and wear
• Wide operating temperature range between -20°C and +100°C for use in demanding environments
How do I install this float switch?
This vertical float switch fits at the bottom or top of a tank from the outside, so there's no need to access the inside. An M12 connector and a compression seal make it simple to securely install the switch.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Vertical |
Switch Output | NO/NC |
Body Material | Polypropylene |
Cable Length | 1m |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 120V |
Maximum Current | 600 mA |
Gasket Material | Nitrile |
Series | RSF100 |
Standards Met | WRAS |
