Winbond SLC NAND 2 GB Parallel Flash Memory 48-Pin TSOP, W29N02GVSIAA

RS Stock No.:: 188-2861
Mfr. Part No.:: W29N02GVSIAA
Manufacturer:: Winbond

Winbond SLC NAND 2 GB Parallel Flash Memory 48-Pin TSOP, W29N02GVSIAA

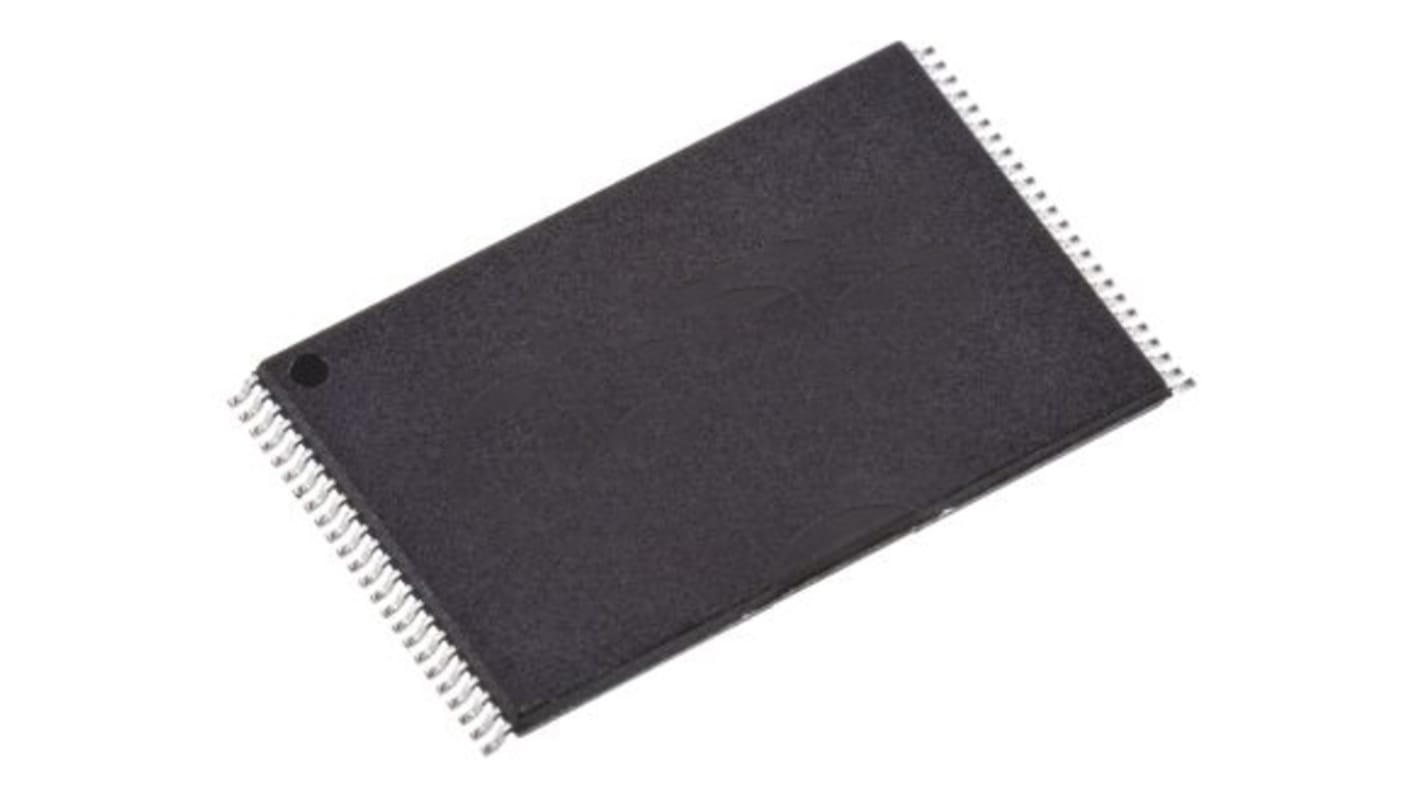

This image is representative of the product range

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 188-2861
Mfr. Part No.:: W29N02GVSIAA
Manufacturer:: Winbond

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Winbond
	Memory Size	2GB
	Product Type	Flash Memory
	Interface Type	Parallel
	Package Type	TSOP
	Pin Count	48
	Organisation	256M x 8 Bit
	Mount Type	Surface
	Cell Type	SLC NAND
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	12 mm
	Standards/Approvals	No
	Height	1.05mm
	Length	12.1mm
	Number of Bits per Word	8
	Series	W29N02GV
	Maximum Random Access Time	25μs
	Supply Current	35mA
	Number of Words	256M
	Automotive Standard	No

	Select all
	Brand Winbond
	Memory Size 2GB
	Product Type Flash Memory
	Interface Type Parallel
	Package Type TSOP
	Pin Count 48
	Organisation 256M x 8 Bit
	Mount Type Surface
	Cell Type SLC NAND
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 12 mm
	Standards/Approvals No
	Height 1.05mm
	Length 12.1mm
	Number of Bits per Word 8
	Series W29N02GV
	Maximum Random Access Time 25μs
	Supply Current 35mA
	Number of Words 256M
	Automotive Standard No

Datasheet W29N02GVSIAA

2Gb SLC NAND Flash Memory with uniform 2KB+64B page size.

Bus Width: x8

Random Read: 25us

Page Program Time: 250us(typ.)

Block Erase Time: 2ms(typ.)

Support OTP Memory Area

Winbond SLC NAND 2 GB Parallel Flash Memory 48-Pin TSOP, W29N02GVSIAA
