Microchip Split Gate 1 MB Parallel Flash Memory 32-Pin TSOP
- RS Stock No.:
- 177-9668
- Mfr. Part No.:
- SST39VF010-70-4I-WHE
- Manufacturer:
- Microchip

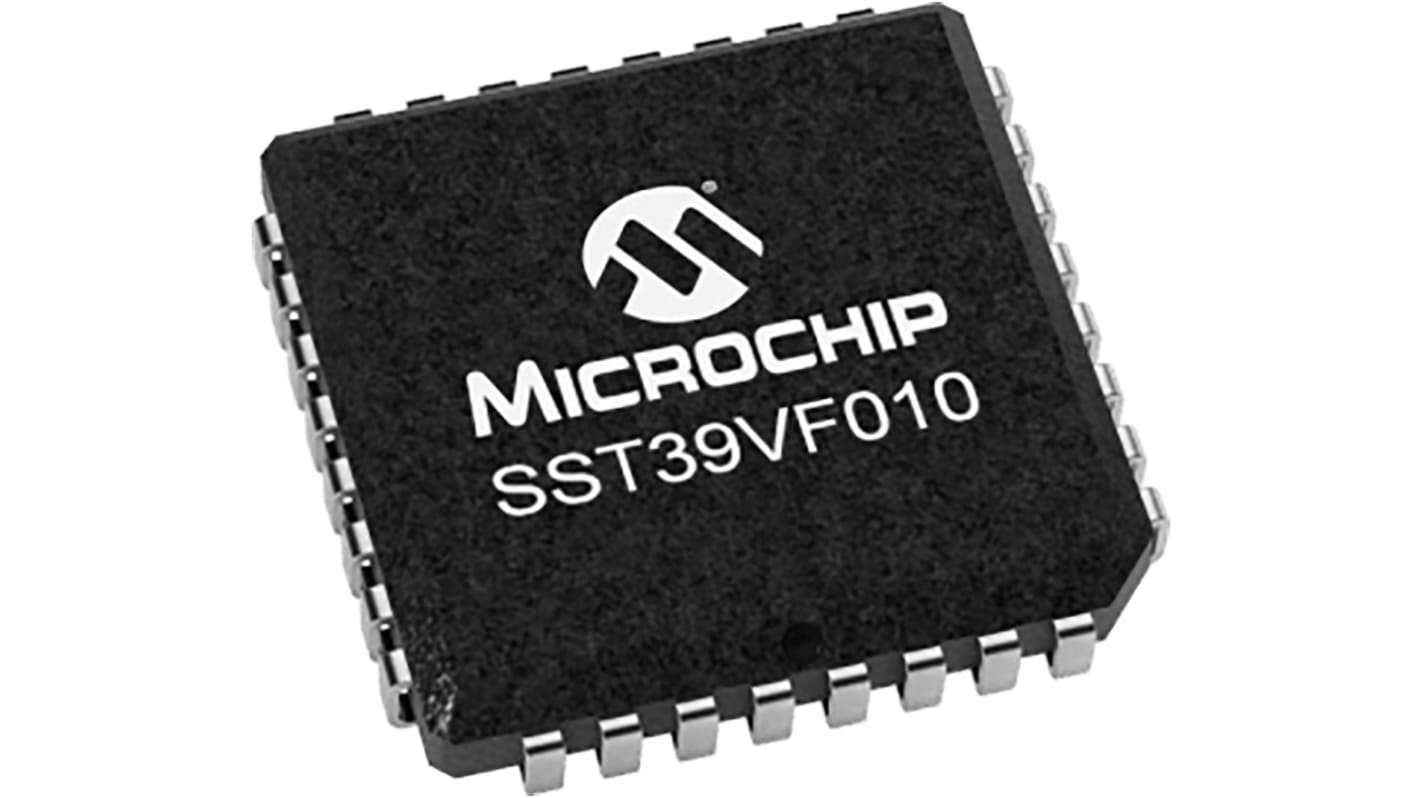

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 177-9668
- Mfr. Part No.:
- SST39VF010-70-4I-WHE
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Flash Memory | |
| Memory Size | 1MB | |
| Interface Type | Parallel | |
| Package Type | TSOP | |
| Pin Count | 32 | |
| Organisation | 128k x 8 | |
| Mount Type | Surface | |
| Cell Type | Split Gate | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2.7V | |
| Timing Type | Asynchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 8.1mm | |
| Height | 1.05mm | |
| Width | 12.5 mm | |
| Number of Words | 128k | |
| Automotive Standard | No | |
| Series | SST39 | |
| Supply Current | 20mA | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 70ns | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Flash Memory | ||
Memory Size 1MB | ||
Interface Type Parallel | ||
Package Type TSOP | ||
Pin Count 32 | ||
Organisation 128k x 8 | ||
Mount Type Surface | ||
Cell Type Split Gate | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2.7V | ||
Timing Type Asynchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 8.1mm | ||
Height 1.05mm | ||
Width 12.5 mm | ||
Number of Words 128k | ||
Automotive Standard No | ||
Series SST39 | ||
Supply Current 20mA | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 70ns | ||
- COO (Country of Origin):
- US
The SST39VF010 is a 128K x8CMOS Multi-Purpose Flash (MPF) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF010 device writes (Program or Erase) with a 2.7-3.6V power supply.
Single Voltage Read and Write Operations
Superior Reliability
Low Power Consumption
Sector-Erase Capability
Fast Read Access Time
Latched Address and Data
Fast Erase and Byte-Program
Automatic Write Timing– Internal VPP Generation
End-of-Write Detection– Toggle Bit– Data# Polling
CMOS I/O Compatibility
