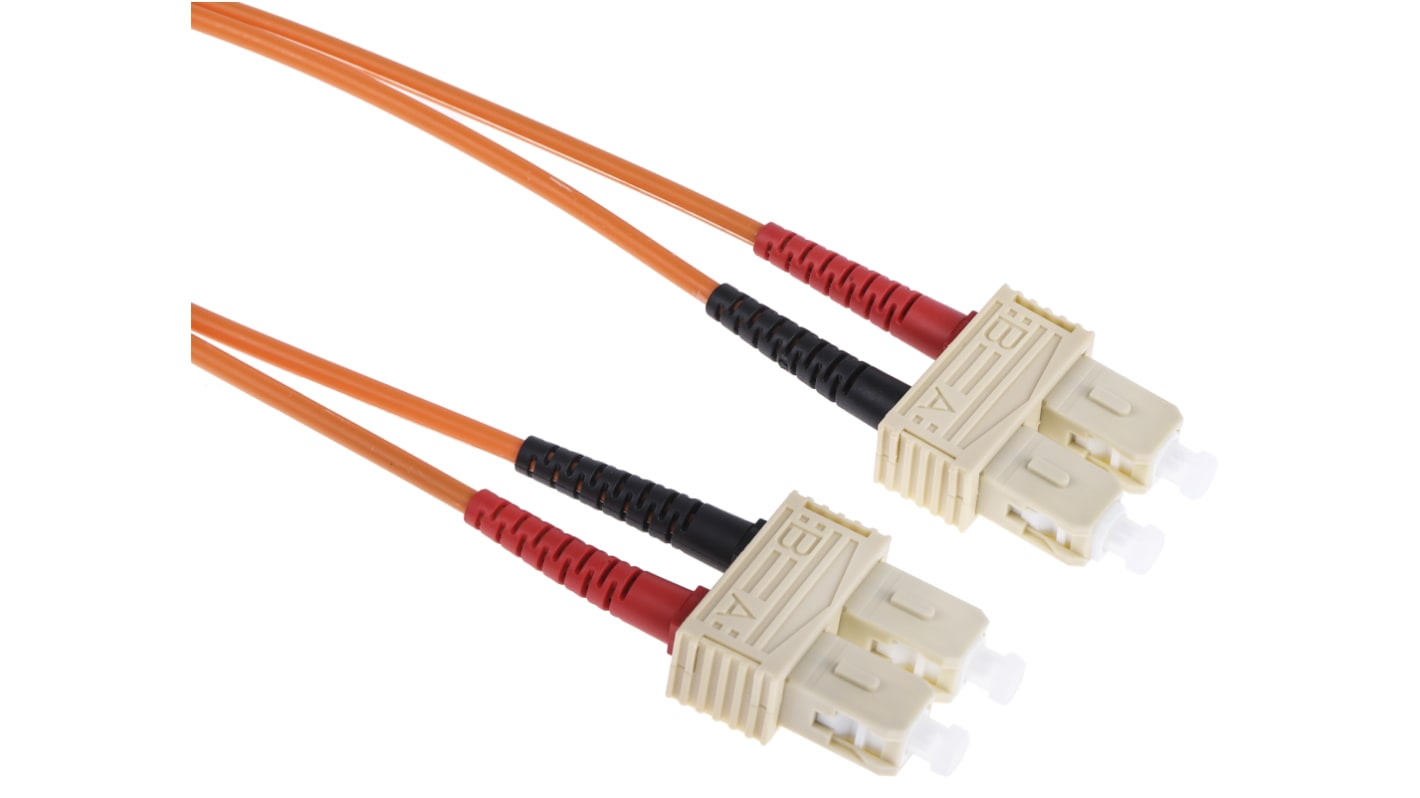

RS PRO SC to SC Duplex Multi Mode OM1 Fibre Optic Cable, 62.5/125μm, Orange, 1m

RS Stock No.:: 535-7480
Manufacturer:: RS PRO

RS PRO SC to SC Duplex Multi Mode OM1 Fibre Optic Cable, 62.5/125μm, Orange, 1m

Bulk discount available

Subtotal (1 unit)**

MYR81.67

66 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 14	MYR81.67
15 - 74	MYR79.96
75 +	MYR65.82

**price indicative

RS Stock No.:: 535-7480
Manufacturer:: RS PRO

RS PRO Standard Fibre Patch Cords SC to SC

This cost-effective fibre optic cables from our own RS PRO brand offers a solution for short or long distance transmission. Their optical fibre patch cords are defining factors in ensuring your network performs to the highest level. These fibre optic cables are all tested and pre made designed to be easy connected.

Features

• Polished ceramic ferrule SC connectors
• Low smoke, zero halogen LSZH) insulation
• SC to SC fibre patch lead connection
• Length 1m
• Colour coded strain to indicate signal path

SC connection – A plastic push/pull type connector with a square connector body. Two SC connectors can be held together with a plastic clip for a duplex connection.

Core diameter availability:

• OM1 multimode – 62.5/125 μm (core to cladding diameter ratio is 62.5 microns to 125 microns)
• OM2 multimode – 50/125 μm (core to cladding diameter ratio is 50 microns to 125 microns)
• OM3 multimode - 50/125 μm (core to cladding diameter ratio is 50 microns to 125 microns)
• OS1 singlemode - 9/125 μm (core to cladding diameter ratio is 9 microns to 125 microns)

Applications

• Broadband systems
• Telecommunication / Data communication
• Ideal solution for data applications requiring high speed data transmissions

Do you need a different length?

536-6866 for 2m
536-6692 for 3m
536-6686 for 5m
536-6670 for 10m
738-8506 for 25m
738-8515 for 50m

FAQs

Difference between Singlemode and Multimode fibre

Multimode fibre can carry multiple light rays at the same time and travels short distances comparing to singlemode which has a single light path and can travel much longer distance of up to 100km.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Caution

Do not exceed the minimum bend radius.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Manufacturer	RS PRO
	Connector 1	SC
	Length	1m
	Propagation Mode	Multi Mode
	Connector 2	SC
	Terminated/Unterminated	Terminated
	Core Diameter	62.5/125µm
	Sheath Colour	Orange
	Cable Construction	Duplex
	Fibre Type	OM1
	Maximum Operating Temperature	+85°C
	Attenuation	0.3 dB
	Sheath Material	Low Smoke Zero Halogen (LSZH)
	Minimum Operating Temperature	-40°C
	Maximum Pulling Tension	50N
	Standards Met	IEC 60332-1, IEC 61300-3-4, IEC 61574

	Select all
	Manufacturer RS PRO
	Connector 1 SC
	Length 1m
	Propagation Mode Multi Mode
	Connector 2 SC
	Terminated/Unterminated Terminated
	Core Diameter 62.5/125µm
	Sheath Colour Orange
	Cable Construction Duplex
	Fibre Type OM1
	Maximum Operating Temperature +85°C
	Attenuation 0.3 dB
	Sheath Material Low Smoke Zero Halogen (LSZH)
	Minimum Operating Temperature -40°C
	Maximum Pulling Tension 50N
	Standards Met IEC 60332-1, IEC 61300-3-4, IEC 61574
