Vent-Axia SDX315 Euro Round In Line Duct Fan, 983m³/h, 2 Year Warranty, IP54 Terminal Box, Metal Impellers, Duct Size

View all Extractor Fans

Subtotal (1 unit)*

MYR2,149.79

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 3 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR2,149.79

*price indicative

RS Stock No.:
884-0991
Mfr. Part No.:
SDX315
Manufacturer:
Vent-Axia
Find similar products by selecting one or more attributes.
Select all

Brand

Vent-Axia

Fan Type

Duct

Air Flow

983m³/h

Mounting

In Line

Supply Voltage

230 V ac

Duct Size

315mm

Series

Euro

Termination Type

Quick Connect

Special Features

2 Year Warranty, IP54 Terminal Box, Metal Impellers

Configuration

Round

COO (Country of Origin):
LT

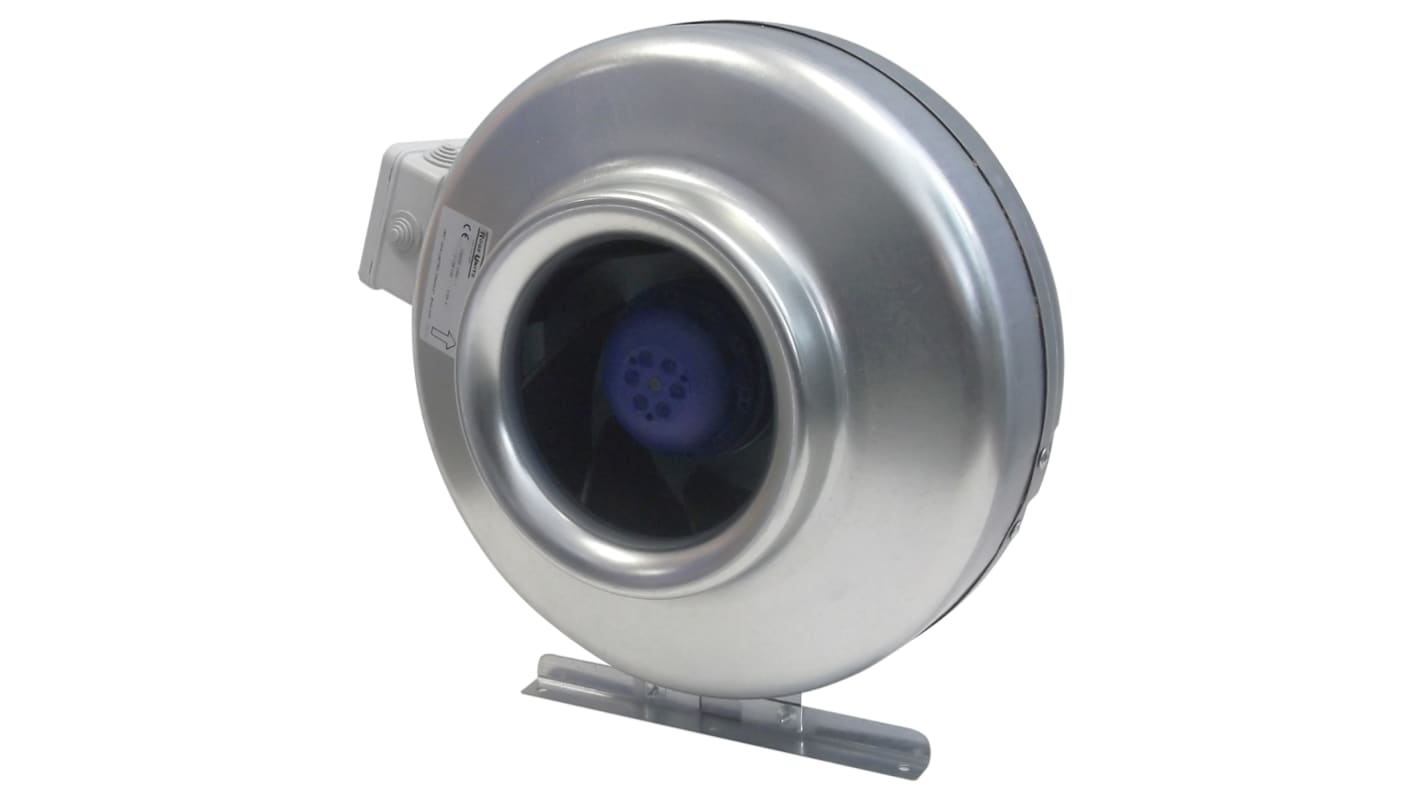

Vent-Axia Duct Fan


The Vent-Axia EURO series in-line mounting centrifugal duct fan has an airflow rate of 983m³/h and a duct diameter of 315mm. It has a supply voltage rating ranging between 220V and 240V. It is designed around an efficient backwards-curved centrifugal impeller. The in-line fan casing is constructed from pressed steel and incorporates an aerodynamically designed airflow guide vane, ensuring maximum performance from the unit whilst maintaining minimum noise levels. It is enabled with an external rotor motor providing a compact design, high-performance and low sound levels. All models are supplied with a simple mounting foot for ease of installation. The impellers are manufactured by injection moulding of a polypropylene resin. The motor and impeller are factory-matched and statically, as well as dynamically balanced in 2 planes.

Features and Benefits


Noise level of 36dB (A) at 2370rpm
Operating temperature ranging between -25°C and 60°C
Quick connect termination
Metal impellers
Static pressure of 700Pa
Round configuration

Certifications


IP44 rated
IP54 rated terminal box
