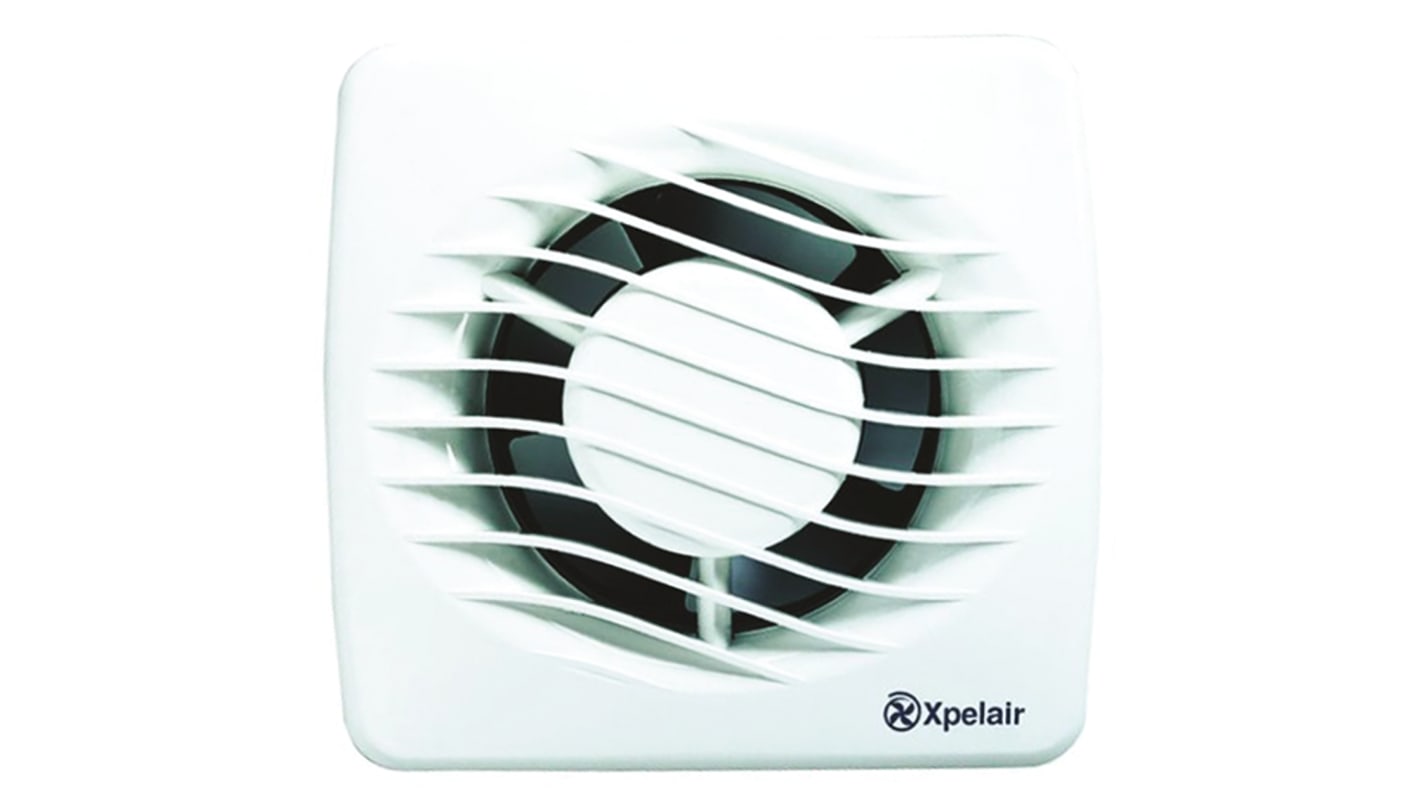

Xpelair 90841AW DX Wall Mounted Extractor Fan, 76m³/h, 35dB(A), Duct Size 100mm

RS Stock No.:: 811-7266
Mfr. Part No.:: 90841AW
Manufacturer:: Xpelair

Xpelair 90841AW DX Wall Mounted Extractor Fan, 76m³/h, 35dB(A), Duct Size 100mm

3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

23 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR386.54

Units	Per Unit
1 +	MYR386.54

RS Stock No.:: 811-7266
Mfr. Part No.:: 90841AW
Manufacturer:: Xpelair

Technical data sheets

Datasheet - 90841AW

Legislation and Compliance

RoHS Status: Not Applicable

Product Details

Xpelair Extractor Fan

The Xpelair extractor fan has an airflow of 76m³/h. It comes with a universal mounting kit comprising of a wall tube, 2 gaskets, outer grille, and a skirt moulding for window mounting in single glazing up to 6mm. The fane also includes an air operated back draught shutter and ducting. This fan is supplied as a fan unit and requires separate kits for wall, ceiling or window mounting applications.
It is available with a face height of 155mm, face width of 165mm and depth of 43mm.

Features and Benefits

Wall mounted
Airflow of 76m³/h

Lubricated for life motors with thermal cut-out protection
Clip-off front cover for ease of cleaning
Noise level of 35dB (A)
Duct size diameter is 100mm

Applications

Kitchens
Utilities

Certifications

IPX5 rated
BEAB rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Function	Extraction
Fan Type	Extractor
Air Flow	76m³/h
Noise Level	35dB(A)
Mounting	Wall Mounted
Face Dimensions	165 x 155mm
Depth	43mm
Face Height	155mm
Face Width	165mm
Supply Voltage	230 V ac
Duct Size	100mm
Series	DX
