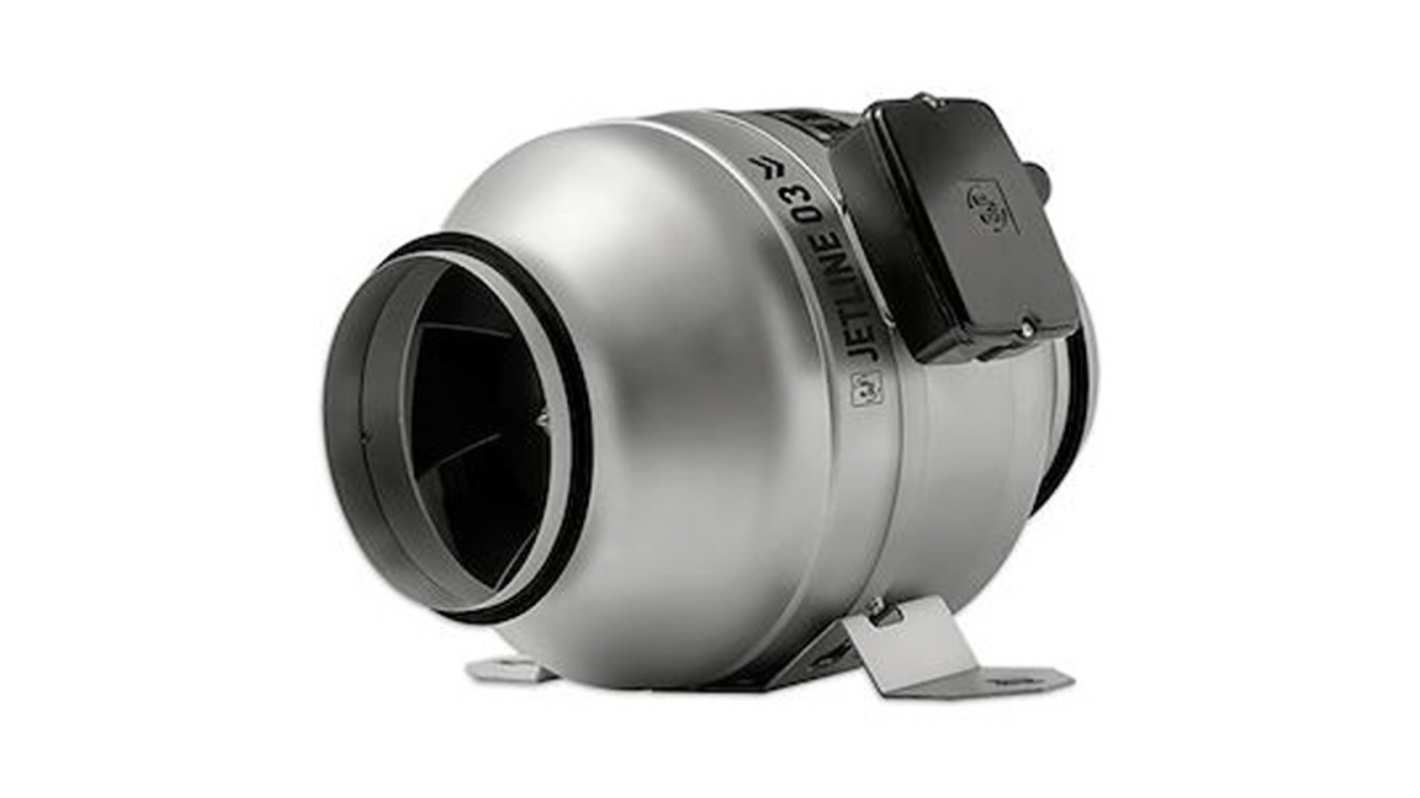

Soler&Palau 246000 - JETLINE 03 246 Round Screw Extractor Fan, 300 m³/h, 40 dB, Duct Size 120 mm
- RS Stock No.:
- 315-474
- Mfr. Part No.:
- 246000 - JETLINE 03
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR3,425.24
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR3,425.24 |
*price indicative
- RS Stock No.:
- 315-474
- Mfr. Part No.:
- 246000 - JETLINE 03
- Manufacturer:
- Soler&Palau
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Extractor Fan | |
| Fan Type | Round Extractor Fan | |
| Air Flow | 300m³/h | |
| Noise Level | 40dB | |
| Housing Material | Galvanised Steel | |
| Mount Type | Screw | |
| IP Rating | IP65 | |
| Standards/Approvals | RoHS | |
| Duct Size | 120 mm | |
| Supply Voltage | 220, 240V | |
| Series | 246 | |
| Configuration | Round | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Extractor Fan | ||
Fan Type Round Extractor Fan | ||
Air Flow 300m³/h | ||
Noise Level 40dB | ||
Housing Material Galvanised Steel | ||
Mount Type Screw | ||
IP Rating IP65 | ||
Standards/Approvals RoHS | ||
Duct Size 120 mm | ||
Supply Voltage 220, 240V | ||
Series 246 | ||
Configuration Round | ||
- COO (Country of Origin):
- ES
The UNELVENT In-Line Centrifugal fans for circular ducts, designed to obtain high aeraulic performance in a very compact profile and low noise levels. The range is composed of 7 diameters and covers a range of flow rates from 260 to 1610 m3/h. Very compact casing with reduced space requirement made of galvanized sheet steel. The IP65 terminal box and the support foot do not increase the overall height of the product. The optimized helico-centrifugal impeller, the director and the discharge diffuser, made of injected plastic, increase performance and reduce noise levels. Airtight assembly between the casing and the director to prevent air leaks. Rubber gaskets on the connection flanges to improve sealing with the ducts. Motor mounted on anti-vibration support to reduce vibrations and the noise level of the installation, especially when used with a speed variator.
Single phase AC motor
Variable speed in voltage
Thermal protection with manual reset
Working temperature is 20 to 60 degree C
