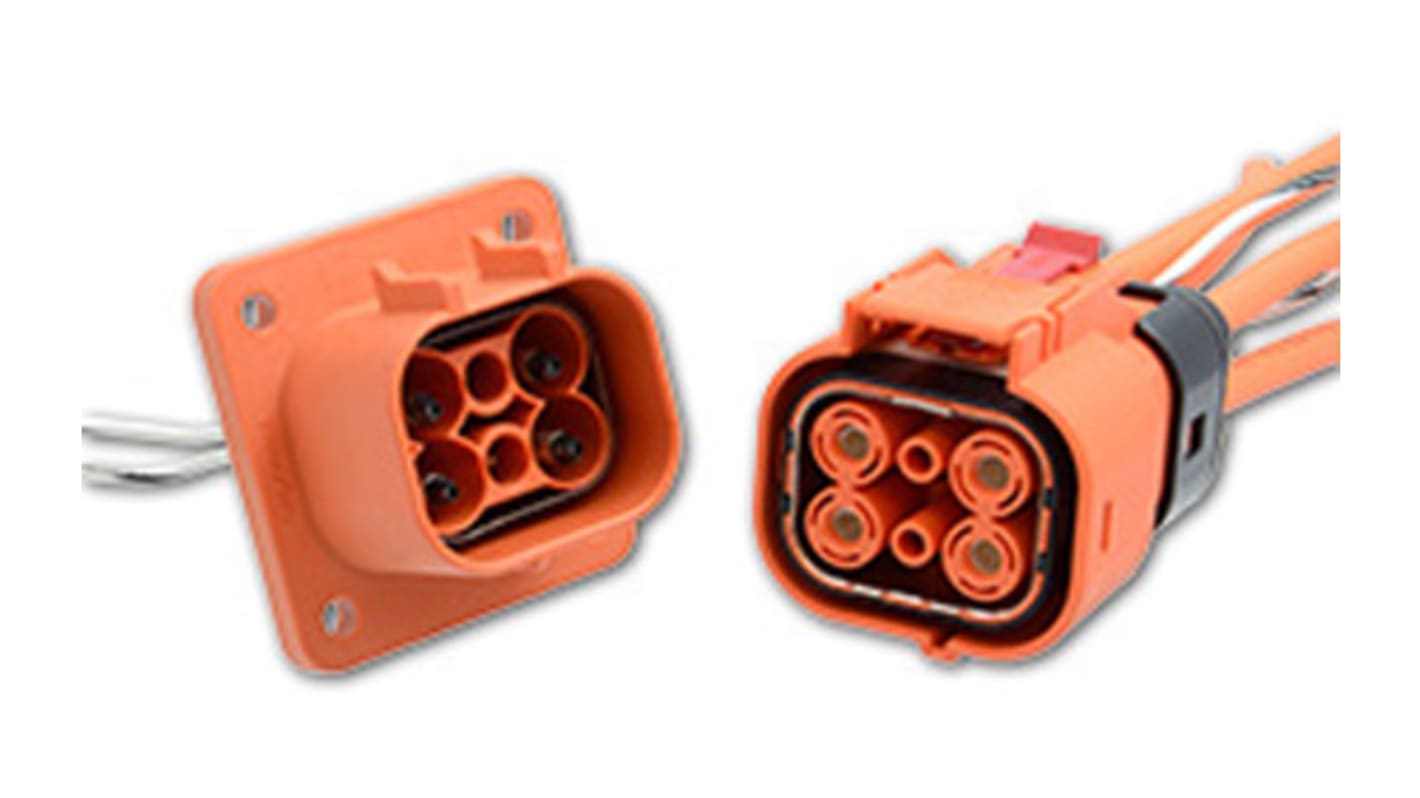

Amphenol Industrial, Epower Lite RADSOK Receptacle with HVIL EV Connector Socket, 7.5 to 70A
- RS Stock No.:
- 124-4069
- Mfr. Part No.:
- ELR2U01 / C10-738025-2UP1
- Manufacturer:
- Amphenol Industrial
Subtotal (1 unit)**
MYR82.82
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR82.82 |
| 5 - 9 | MYR81.35 |
| 10 + | MYR80.15 |
**price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-4069
- Mfr. Part No.:
- ELR2U01 / C10-738025-2UP1
- Manufacturer:
- Amphenol Industrial
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Range | RADSOK | |
| Series | Epower Lite | |
| Connector Type | RADSOK Receptacle with HVIL | |
| Number of Rows | 1 | |
| Number of Contacts | 2 | |
| Wire Size | 2.5 mm² | |
| Current Rating | 7.5 to 70A | |
| Operating Voltage | 800V | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Contact Gender | Male | |
| Termination Method | Crimp | |
| Key Type | U | |
| Colour | Orange | |
| IP Rating | IP67 | |
| Better World Product | Yes | |
| Better World Claim | Renewable energy solution | |
| Mounting Type | Panel Mount | |
| Minimum Operating Temperature | -40°C | |
| Applications | EV/HEV | |
| Maximum Operating Temperature | +125°C | |
| Width | 45.4mm | |
| Depth | 37mm | |
| Standards Met | IEC 60529, UL 94 V-0 | |
| Height | 40.6mm | |
| Pin Diameter | 3.6mm | |
| For Use With | 2 Position ePower-Lite Plug with HVIL | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Range RADSOK | ||
Series Epower Lite | ||
Connector Type RADSOK Receptacle with HVIL | ||
Number of Rows 1 | ||
Number of Contacts 2 | ||
Wire Size 2.5 mm² | ||
Current Rating 7.5 to 70A | ||
Operating Voltage 800V | ||
Connector Gender Female | ||
Orientation Straight | ||
Contact Gender Male | ||
Termination Method Crimp | ||
Key Type U | ||
Colour Orange | ||
IP Rating IP67 | ||
Better World Product Yes | ||
Better World Claim Renewable energy solution | ||
Mounting Type Panel Mount | ||
Minimum Operating Temperature -40°C | ||
Applications EV/HEV | ||
Maximum Operating Temperature +125°C | ||
Width 45.4mm | ||
Depth 37mm | ||
Standards Met IEC 60529, UL 94 V-0 | ||
Height 40.6mm | ||
Pin Diameter 3.6mm | ||
For Use With 2 Position ePower-Lite Plug with HVIL | ||
