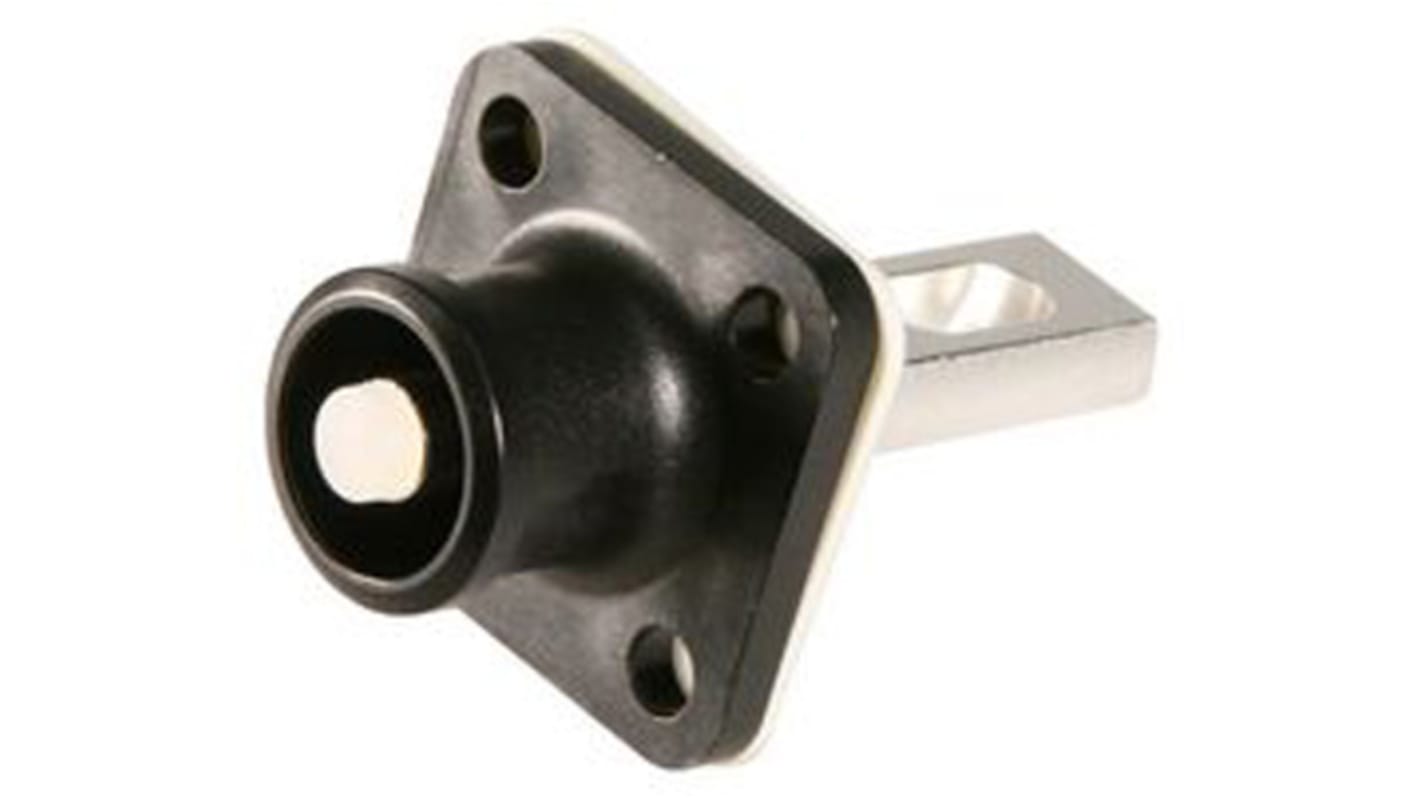

Amphenol Industrial, Surlok Plus RADSOK EV Connector Socket, 120A
- RS Stock No.:
- 124-3951
- Mfr. Part No.:
- SLPRABPSB / C10-730187-110
- Manufacturer:
- Amphenol Industrial
12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR65.01
| Units | Per Unit |
| 1 - 4 | MYR65.01 |
| 5 - 9 | MYR62.76 |
| 10 + | MYR60.88 |
- RS Stock No.:
- 124-3951
- Mfr. Part No.:
- SLPRABPSB / C10-730187-110
- Manufacturer:
- Amphenol Industrial
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
5.7mm SurLok Plus Receptacle for 25mm
From Amphenol, this SurLok Plus series receptacle is a compact and quick mating compression lug that features a panel mount flange. Robust and environmentally sealed, the receptacle is field installable and highly reliable.
With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area.
The receptacle has a 5.7mm pin diameter and is designed to terminate to 25mm² wires.
With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area.
The receptacle has a 5.7mm pin diameter and is designed to terminate to 25mm² wires.
Features and Benefits
• Touch Proof
• Keyed to prevent mismating
• Spring Locking
• IP67
• Flammability rating of UL 94-V0
• Keyed to prevent mismating
• Spring Locking
• IP67
• Flammability rating of UL 94-V0
Applications
SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medical and BMS/Energy storage.
Amphenol SurLok Plus Range
Specifications
Attribute | Value |
|---|---|
| Range | R4 RADSOK |
| Series | Surlok Plus |
| Connector Type | RADSOK |
| Number of Rows | 1 |
| Number of Contacts | 1 |
| Wire Size | 16 mm², 25 mm² |
| Current Rating | 120A |
| Operating Voltage | 1000V |
| Connector Gender | Female |
| Orientation | Straight |
| Contact Gender | Male |
| Termination Method | Busbar |
| Better World Product | Yes |
| Mounting Type | Panel Mount |
| Colour | Black |
| IP Rating | IP67 |
| Better World Claim | Renewable energy solution |
| Applications | BMS/Energy Storage, EV/HEV, Heavy Equipment, Medical, Process Control/Automation, Rail Mass Transit |
| Maximum Operating Temperature | +125°C |
| Pin Diameter | 5.7mm |
| Standards Met | UL 94-V0 |
| Minimum Operating Temperature | -40°C |
| Depth | 47.6mm |
| For Use With | SurLok 1-Position Plug |
