Amphenol Industrial LTW Series Female RJ45 Connector, Panel Mount, Cat5e, STP Shield Straight 8/8 -Way

RS Stock No.:: 798-0701
Distrelec Article No.:: 301-62-552
Mfr. Part No.:: RCP-5SPFFH-TCU7001
Manufacturer:: Amphenol Industrial

Amphenol Industrial LTW Series Female RJ45 Connector, Panel Mount, Cat5e, STP Shield Straight 8/8 -Way

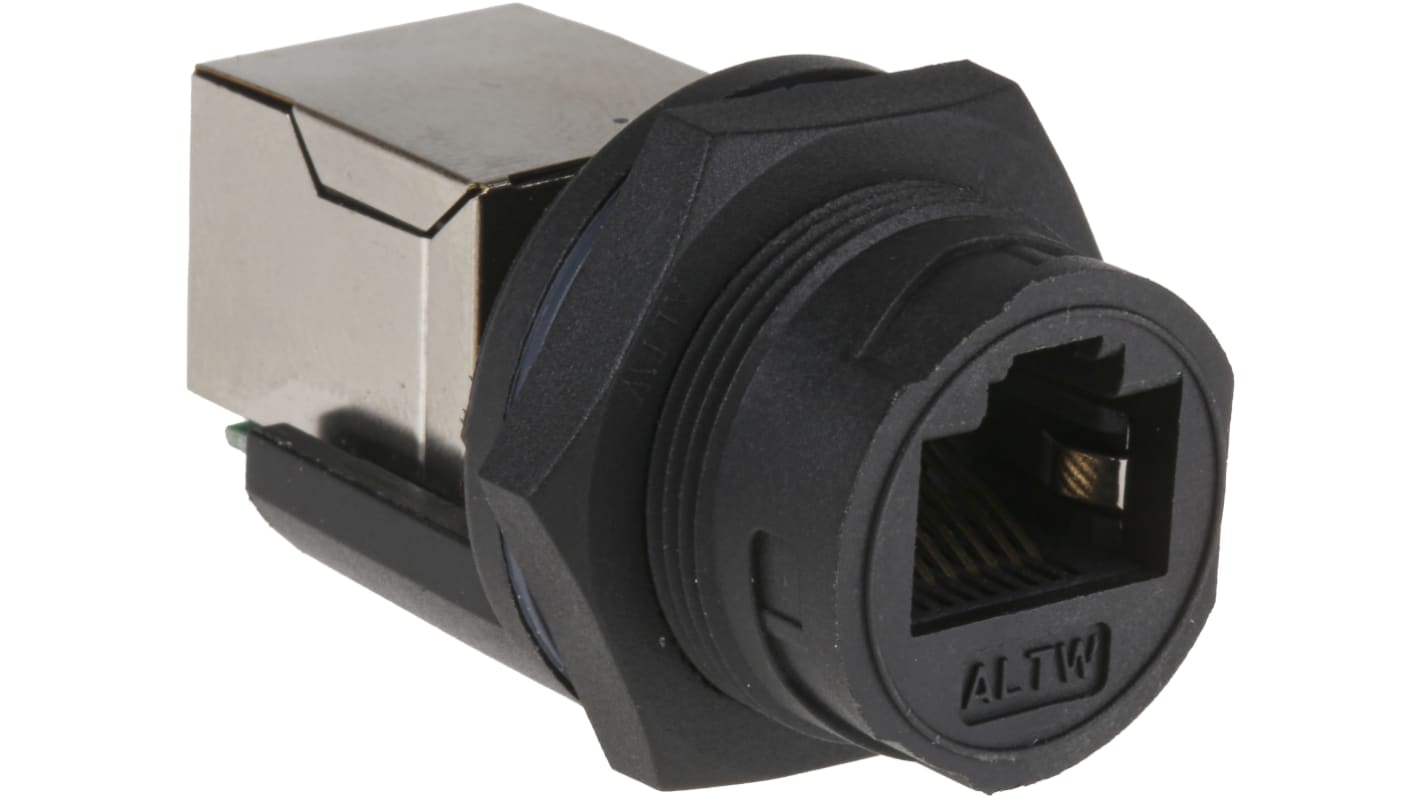

This image is representative of the product range

Bulk discount available

Price Each**

Was MYR45.34

You pay

MYR40.81

10 In Local stock for delivery in 2-3 working days, delivery time may vary for certain locations or FTZ*

48 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 5	MYR40.81
6 - 29	MYR40.00
30 +	MYR39.20

**price indicative

RS Stock No.:: 798-0701
Distrelec Article No.:: 301-62-552
Mfr. Part No.:: RCP-5SPFFH-TCU7001
Manufacturer:: Amphenol Industrial

RCP-5SPFFH-TCU7001 Datasheet

Amphenol LTW Range of IP67 RJ45 Connectors

From Amphenol, this LTW Range of RJ45 connectors has a LAN category of 5e and can be sealed to IP67. Being functionally waterproof, the LTW range is ideal for field applications and harsh environments. With a screw lock mating system, a secure and reliable connection is assured. All models are highly reliable and excellent quality.

The range of Cat5e Amphenol LTW IP67 RJ45 System plastic components include:

• Stock number 798-0708 is a C size Plug, Lock Bayonet, cable mount with strain relief
• Stock number 798-0717 is a C size Plug, Lock Bayonet, cable mount, feed-thru
• Stock number 798-0726 is a D size Plug, Lock Bayonet, cable mount with strain relief
• Stock number 798-0720 is a D size Plug Housing, Lock Bayonet, feed-thru
• Stock number 798-0748 is an ODVA Plug Housing, Lock Bayonet, with strain relief
• Stock number 798-0701 is a C size Shielded front fastened Panel mount RJ45 Horizontal Jack, Lock Bayonet
• Stock number 798-0704 is a C size Shielded front fastened Panel mount RJ45 Vertical Jack, Lock Bayonet
• Stock number 798-0714 is a D size Shielded front fastened Panel mount RJ45 Horizontal Jack, Lock Bayonet
• Stock number 798-0723 is a D size Shielded front fastened Panel mount RJ45 Vertical Jack, Lock Bayonet
• Stock number 798-0745 is an ODVA Shielded double fastened panel mount Jack horizontal, Lock Bayonet
• Stock number 798-0739 is a D size I adapter Type 1 panel mount, screw thread
• Stock number 798-0732 is a D size I adapter Type 2 panel mount field installable, screw thread
• Stock number 798-0736 is a D size I adapter Type 3 inline Coupler, screw thread
• Stock number 798-0710 is a C size Cap with lanyard

• Stock number 800-7582 is a ODVA size Cap with lanyard

RCP-5SPFFH-TCU7001 Features and Benefits:

Operating voltage: 44-57V
IP67 rating – waterproof and dust tight
Thermoplastic black housing
Rubber grey gasket
Operating temperature -40°C to +105°C
Nominal current 1.5A
Mating style 3 points lock
Connector gender: Jack
Shielded

Typical Applications

These Amphenol LTW RJ45 ethernet connectors are very durable and ideal for harsh environments and are found in industrial ethernet applications.

Attribute	Value
Gender	Female
Ethernet Connector Type	RJ45 Connector
LAN Category	Cat5e
Mounting Type	Panel Mount
Number of Ways	8/8
Shield Type	STP
Orientation	Straight
IP Rating	IP67
Length	37.6mm
Width	26mm
Series	LTW
Contact Material	Phosphor Bronze
Contact Plating	Gold
