Wurth Elektronik 74991 Series RJ45 Connector Female Shielded 1 Port
- RS Stock No.:
- 735-0260
- Distrelec Article No.:
- 304-11-614
- Mfr. Part No.:
- 7499111441A
- Manufacturer:
- Wurth Elektronik

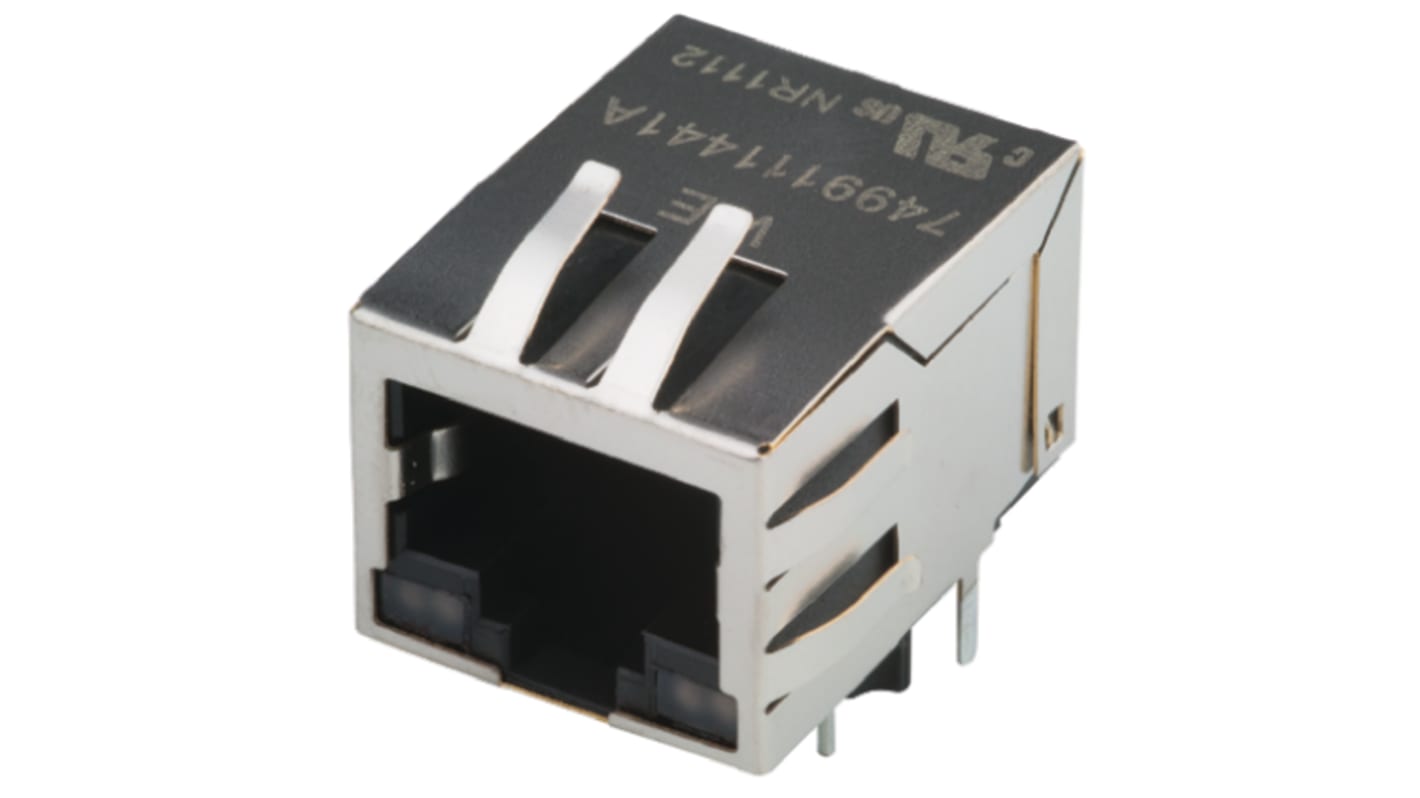

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR68.37
FREE delivery for orders over RM 500.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 7 | MYR68.37 |
| 8 - 14 | MYR66.93 |
| 15 + | MYR64.93 |
*price indicative
- RS Stock No.:
- 735-0260
- Distrelec Article No.:
- 304-11-614
- Mfr. Part No.:
- 7499111441A
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Connector Type | Magnetic Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Magnetic | Yes | |
| LED | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 15.88mm | |
| Series | 74991 | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Depth | 21.84mm | |
| Length | 13.95mm | |
| Contact Material | Ferrite | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
Number of Ports 1 | ||
Connector Type Magnetic Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Magnetic Yes | ||
LED Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 15.88mm | ||
Series 74991 | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Depth 21.84mm | ||
Length 13.95mm | ||
Contact Material Ferrite | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
Würth RJ Data Sockets with integrated transformer/ common mode choke
A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.
Features & Benefits
350 μH min. OCL with 8 mA bias;Complies with IEEE 802.3;Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.
