RS PRO CDM12S8, 2 m Cat6 Ethernet Cable, Grey 8 Unscreened Polyvinyl Chloride Sheath
- RS Stock No.:
- 877-1214
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR254.98
FREE delivery for orders over RM 500.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR254.98 |
| 5 - 9 | MYR249.62 |
| 10 - 49 | MYR242.13 |
| 50 - 249 | MYR234.87 |
| 250 + | MYR193.29 |
*price indicative
- RS Stock No.:
- 877-1214
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ethernet Cable | |
| Series | CDM12S8 | |
| Cable Length | 2m | |
| LAN Category | Cat6 | |
| Screened/Unscreened | Unscreened | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | No | |
| Voltage | 30 V | |
| Cross Sectional Area | 26 to 7 AWG | |
| Number of Cores | 8 | |
| Outside Diameter | 6.8 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ethernet Cable | ||
Series CDM12S8 | ||
Cable Length 2m | ||
LAN Category Cat6 | ||
Screened/Unscreened Unscreened | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals No | ||
Voltage 30 V | ||
Cross Sectional Area 26 to 7 AWG | ||
Number of Cores 8 | ||
Outside Diameter 6.8 mm | ||
- COO (Country of Origin):
- IN

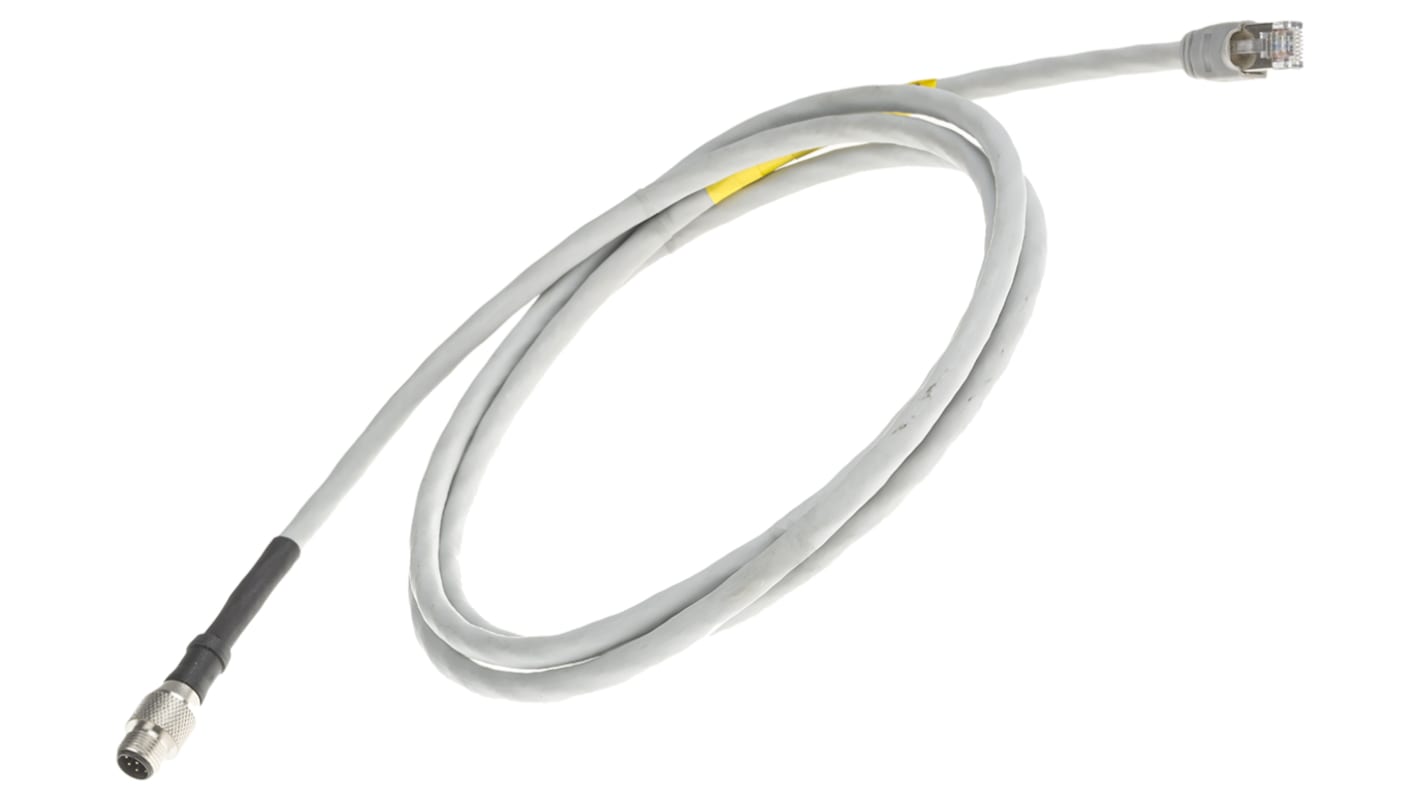

M12 to Ethernet Cable Assembly
Bought to you under the trusted RS Brand, this handy M12 connector cable assembly terminates in a cat6 RJ45 ethernet plug. Fitted with a secure coupling nut, the M12 Connector assures a secure and reliable connection to sensor and automation equipment, while the RJ45 connection provides the user with a variety of high-speed ethernet possibilities.
Features and Benefits:
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
• M12 Connector protected to IP67
• RJ45 Connector protected to IP20
• Cable cross section of 26/7 AWG
