RS PRO, 305 m Cat5e Ethernet Cable, Grey Polyvinyl Chloride Sheath, S/UTP

View all Ethernet Cable
Bulk discount available

Subtotal (1 reel of 305 metres)*

MYR2,049.46

Add to Basket
Select or type quantity
In Stock
  • 166 unit(s) ready to ship from another location
  • Plus 69 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 - 4MYR2,049.46MYR6.72
5 +MYR1,686.71MYR5.53

*price indicative

RS Stock No.:
812-4791
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Ethernet Cable

LAN Category

Cat5e

Cable Length

305m

Shield Type

S/UTP

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Standards/Approvals

Euroclass Eca

Voltage

300 V

COO (Country of Origin):
CN

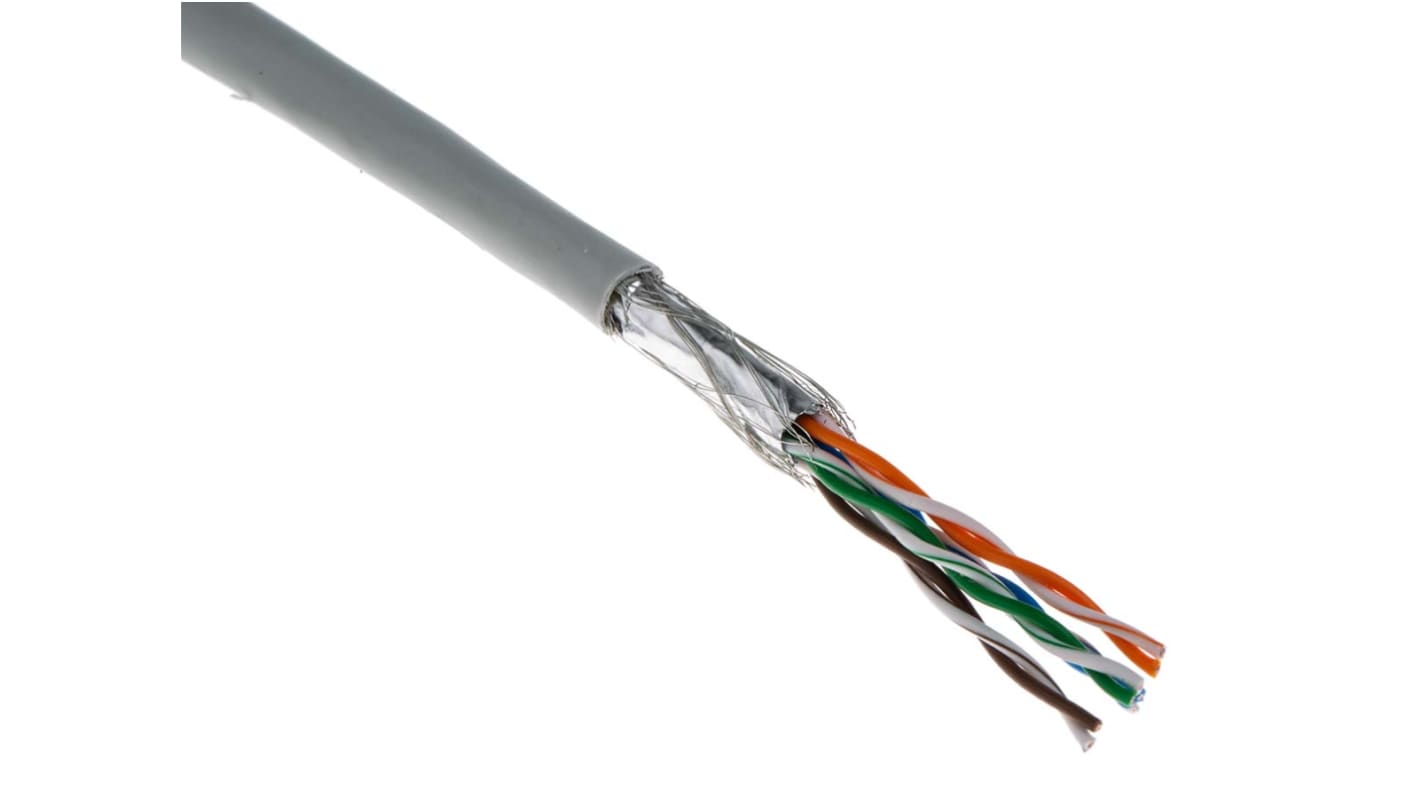

RS PRO Grey PVC Cat5e Cable S/UTP, 305 m Unterminated/Unterminated


This 4-pair network patch cable from the RS PRO range is ideal for connecting devices to a local area network (LAN). The Cat5e cable is double shielded to protect the signal from electromagnetic interference, with a screen of aluminised polyester tape (100% coverage) wrapped in a braid screen of 0.1 mm tinned copper (65% minimum coverage).

The 305-metre cable uses stranded bare copper conductors with a cross-sectional area of 0.14 mm² (AWG26). It has an outer diameter of 5.6 mm, is voltage rated at 300 V ac and has an operating temperature range of -15˚C to +70˚C. It's sheathed in grey, flame-retardant PVC.

This cable meets Euroclass Eca standards, meaning it's safe for installation in buildings with basic building fire safety requirements and is RoHS compliant on hazardous substances. It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 so it won't damage equipment through electrostatic discharge.

Features and Benefits


• Cat5e seven-strand network patch unterminated connector cable

• Double shielded with tape and braid to protect the signal from electromagnetic interference

• Core strands 7/016

• Length of 305 m

• Outer diameter of 5.6 mm

• Cross-sectional area of 0.14 mm²

• Voltage rating of 300 V

• Operating temperature of -15˚C to +70˚C

• AWG 26

• S/UTP shield

• Capacitance of 330pF

• Attenuation of 37.4 dB at 100 MHz /100Ω over 100 m

• Conforms to Euroclass Eca standards for safe installation in buildings with basic building fire safety requirements

• RoHS compliant on hazardous substances

• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
