Weidmüller Cabinet Line, 1 m Cat6 Ethernet Cable, Grey, S/FTP Screened Low Smoke Zero Halogen Sheath

RS Stock No.:: 768-5557
Mfr. Part No.:: 1233160010
Manufacturer:: Weidmüller

Weidmüller Cabinet Line, 1 m Cat6 Ethernet Cable, Grey, S/FTP Screened Low Smoke Zero Halogen Sheath

Bulk discount available

Subtotal (1 unit)*

MYR51.03

FREE delivery for orders over RM 500.00

Limited stock

117 left, ready to ship from another location
Plus 46 left, shipping from 19 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 14	MYR51.03
15 - 49	MYR49.94
50 +	MYR48.44

*price indicative

RS Stock No.:: 768-5557
Mfr. Part No.:: 1233160010
Manufacturer:: Weidmüller

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Series	Cabinet Line
	Product Type	Ethernet Cable
	Cable Length	1m
	LAN Category	Cat6
	Shield Type	S/FTP
	Screened/Unscreened	Screened
	Conductor Type	Stranded
	Jacket Material	Low Smoke Zero Halogen
	Jacket Colour	Grey
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Fire Behaviour	Flame Retardant
	Standards/Approvals	cULus
	Conductor Material	Copper
	Number of Cores	8
	Voltage	750 V
	Outside Diameter	5.5 mm

	Select all
	Brand Weidmüller
	Series Cabinet Line
	Product Type Ethernet Cable
	Cable Length 1m
	LAN Category Cat6
	Shield Type S/FTP
	Screened/Unscreened Screened
	Conductor Type Stranded
	Jacket Material Low Smoke Zero Halogen
	Jacket Colour Grey
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Fire Behaviour Flame Retardant
	Standards/Approvals cULus
	Conductor Material Copper
	Number of Cores 8
	Voltage 750 V
	Outside Diameter 5.5 mm

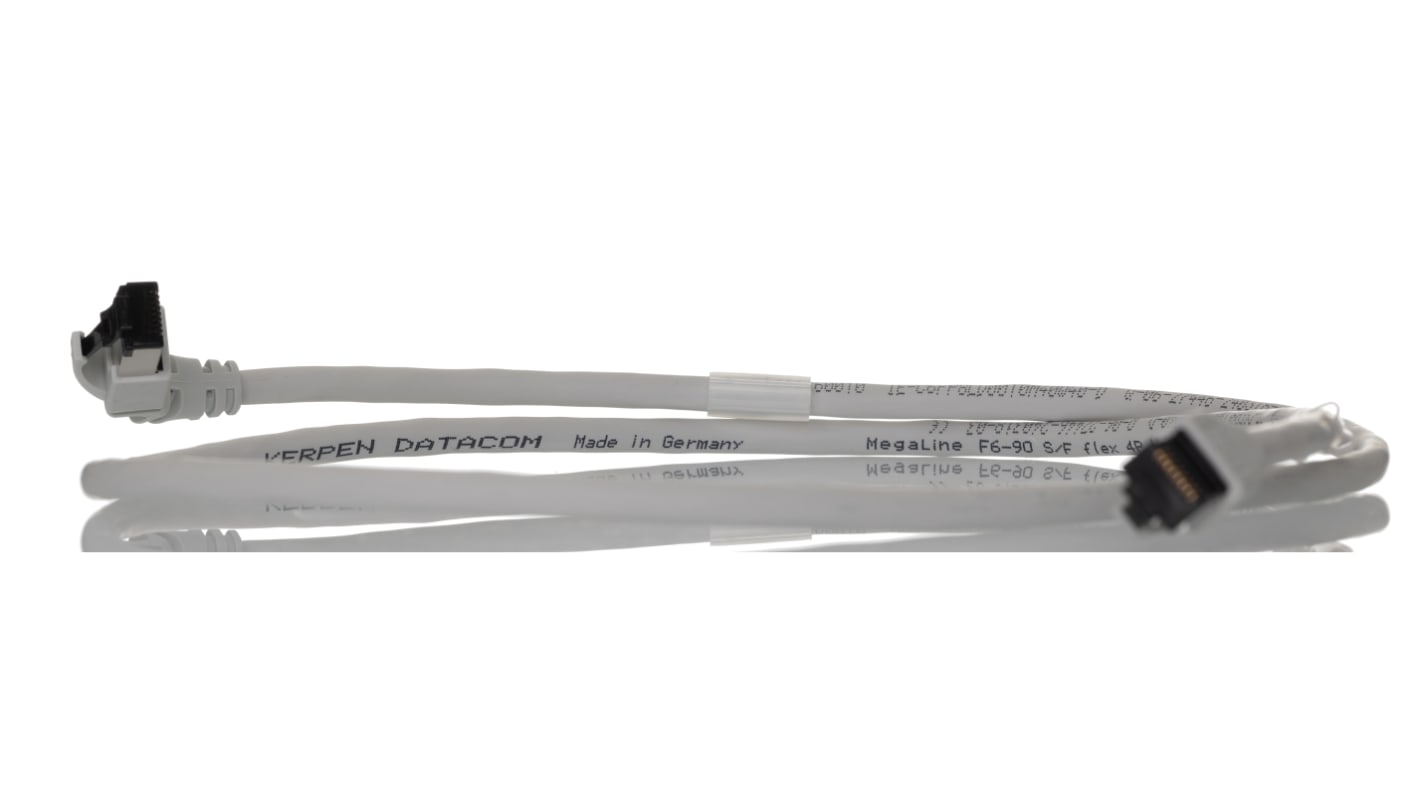

Weidmuller Ethernet Cable, 1m Length, S/FTP - 1233160010

This Ethernet cable from Weidmuller is a high-quality, shielded Cat6 cable with a length of 1m. It features RJ45 connectors, one right angle and the other straight, making it ideal for various networking applications. The LSZH outer sheath and S/FTP shielding ensure high performance and durability.

Features & Benefits

• RJ45 connectors including one right angle and one straight connector for easy installation in tight spaces

• Cat6 standard provides high-speed data transmission for efficient networking

• S/FTP shielding reduces interference for reliable performance

• Low smoke zero halogen sheath for enhanced safety in case of fire

• Ready to use out of the box with straight through wiring configuration

Applications

• Ideal for use in industrial Ethernet • Suitable for networking cabinets and patch cable installations

Can this Ethernet cable be used for PoE+ devices?

Yes, this cable is PoE/PoE+ compliant and can be used with compatible devices.

Will the right angle connector fit in tight spaces?

Yes, the right angle connector is designed for installations where space is limited.

Is this cable suitable for high-speed data transfer?

Yes, this Cat6 cable is designed for high-speed networking applications.
