Belden 70007NH Cat5e Ethernet Cable, 305 m, Screened, Green, Flame Retardant Non-Corrosive
- RS Stock No.:
- 724-8791
- Mfr. Part No.:
- 70007NH.00305
- Manufacturer:
- Belden
Subtotal (1 reel of 305 metres)*
MYR5,309.42
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 23 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR5,309.42 | MYR17.408 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 305 Metre(s)
MYR4,812.03
- RS Stock No.:
- 724-8791
- Mfr. Part No.:
- 70007NH.00305
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 70007NH | |
| Product Type | Ethernet Cable | |
| Cable Length | 305m | |
| LAN Category | Cat5e | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Material | Flame Retardant Non-Corrosive | |
| Jacket Colour | Green | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Euroclass Eca | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 7 x 22AWG | |
| Cable CSA | 22AWG | |
| Conductor Material | Copper | |
| Size of Strands | 22AWG | |
| Outside Diameter | 6.5mm | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 70007NH | ||
Product Type Ethernet Cable | ||
Cable Length 305m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Unterminated | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Material Flame Retardant Non-Corrosive | ||
Jacket Colour Green | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Euroclass Eca | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7 x 22AWG | ||
Cable CSA 22AWG | ||
Conductor Material Copper | ||
Size of Strands 22AWG | ||
Outside Diameter 6.5mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- HU

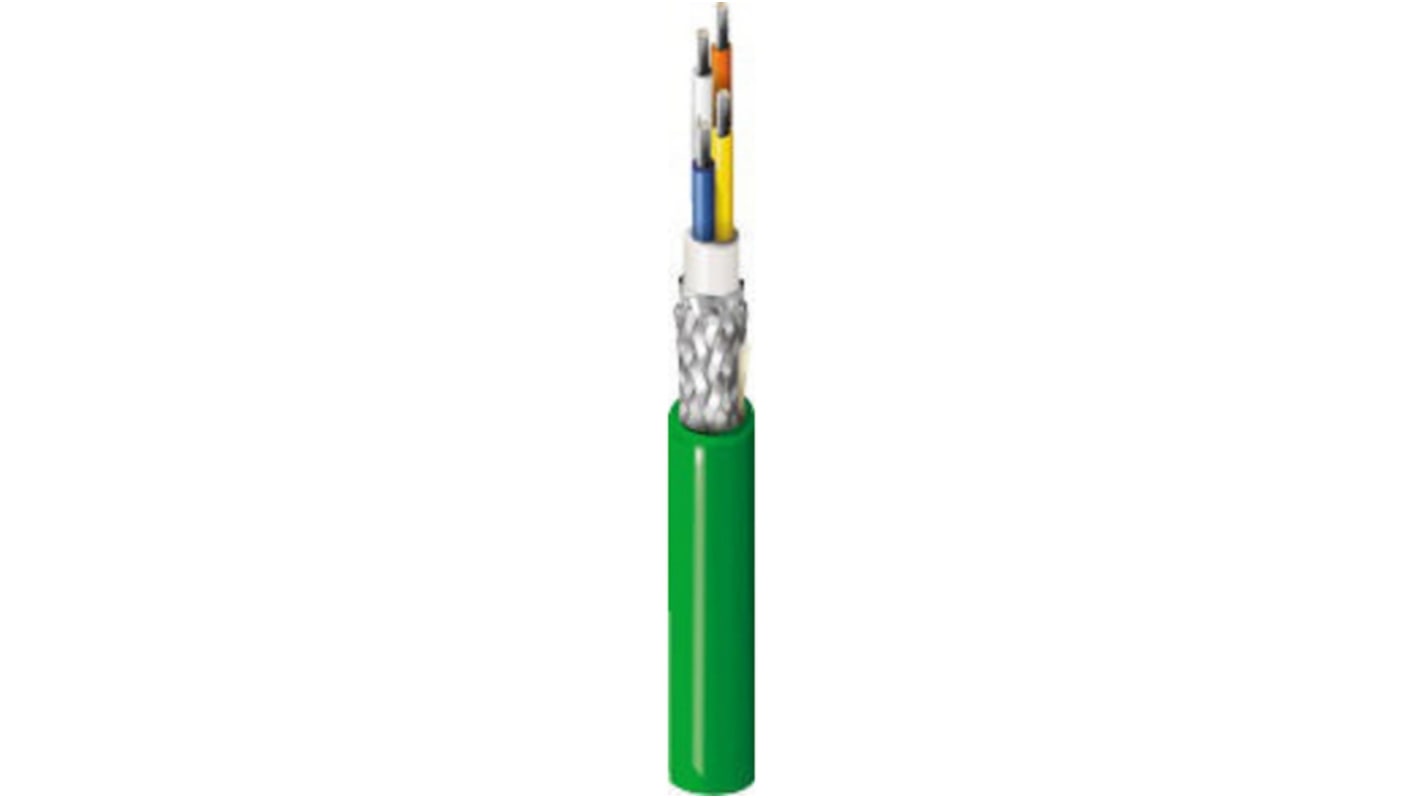

Belden Cat5e Green Shielded Ethernet Cable, 305m Length, 22AWG - DataTuff Series - 70007NH.00305
Use this Belden Ethernet cable to maintain signal integrity in your workplace or at home. It comes in a length of 305m and is unterminated, so it's easy to customise its length and connection points to your specific needs. As a type B cable, it has a degree of flexibility and is well-suited to applications where occasional movement or vibration is expected after installation. Use this Cat5e cable to support network speeds of up to 1GB (gigabyte) per second in residential and commercial settings.
Features & Benefits
• Resistant to sunlight, solvents, chemicals and moisture for use in demanding environments
• IP67 (ingress protection) rating indicates it's completely dust-tight and can withstand immersion in up to 1m of water for up to 30 minutes
• 85% braid coverage increases flexibility and mechanical strength for an enhanced service life
Applications
• Infrastructure
• Residential markets
• Broadcasting
What does SF/UTP mean?
SF/UTP stands for shielded and foiled/unshielded twisted pairs. This means the cable provides effective protection from EMI (electromagnetic interference) both from within the cable itself and from external sources. Essentially, it offers better signal integrity than non-shielded cables.
