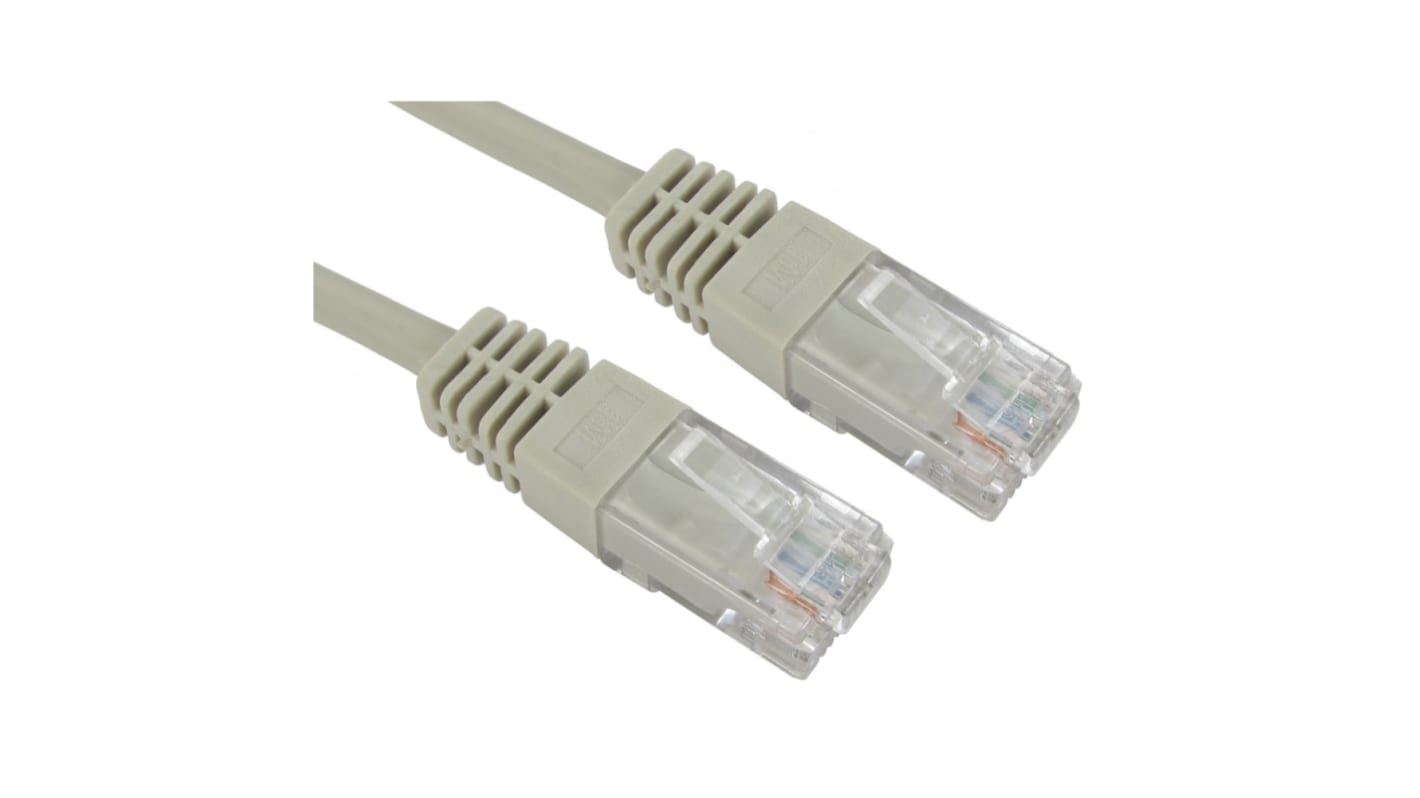

RS PRO, 20m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3672
Manufacturer:: RS PRO

RS PRO, 20m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR89.49

FREE delivery for orders over RM 500.00

In Stock

Plus 26 unit(s) shipping from 05 January 2026
Plus 50 unit(s) shipping from 08 January 2026
Plus 36 unit(s) shipping from 29 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR89.49

*price indicative

RS Stock No.:: 286-3672
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	20m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1	RJ45
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Grey
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Voltage Rating	80V
	American Wire Gauge	26AWG
	Number of Strands	8
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Current Rating	960mA
	Cable Shape	Round
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Outer Diameter	4.6mm

	Select all
	Brand RS PRO
	Length 20m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 RJ45
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Grey
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Voltage Rating 80V
	American Wire Gauge 26AWG
	Number of Strands 8
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Current Rating 960mA
	Cable Shape Round
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Outer Diameter 4.6mm

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-performance Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it ensures high signal integrity and noise rejection, making it suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair): Provides effective noise rejection without the need for shielding
Cat5e: Supports high-speed data transfer up to 1 Gbps
Moulded: Enhances durability and strain relief
26 AWG Bare Copper Cores: Ensures excellent conductivity and performance
CM (UL) C(UL) 4P: Meets safety and performance standards
ISO/IEC 11801 and TIA/EIA 568B.2: Complies with international cabling standards
PoE Compatible: Supports Power over Ethernet applications

Applications

Computer networks
Ethernet connections
Data centres
Home and office networking

Additional Information

Sheath Colour: Grey
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 20 m
Connector Type: RJ45 Male to Male
