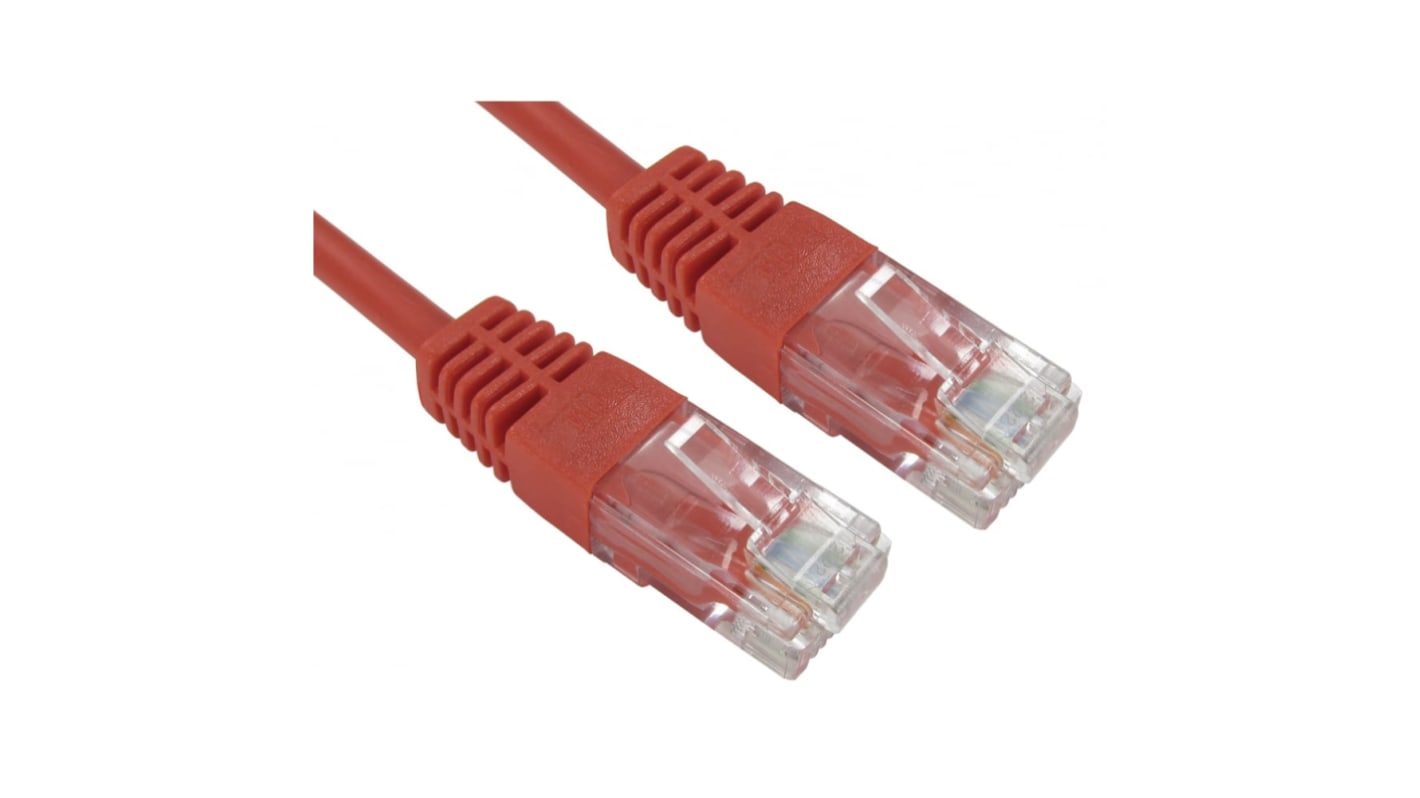

RS PRO, 15m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3669
Manufacturer:: RS PRO

RS PRO, 15m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR69.28

FREE delivery for orders over RM 500.00

In Stock

20 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR69.28

*price indicative

RS Stock No.:: 286-3669
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	15m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Red
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating	960mA
	Voltage Rating	80V
	Cross Sectional Area	0.126 to 0.158mm²
	Number of Strands	8
	American Wire Gauge	26AWG
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Capacitance	5.6nF/100m
	Outer Diameter	4.6mm

	Select all
	Brand RS PRO
	Length 15m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Red
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating 960mA
	Voltage Rating 80V
	Cross Sectional Area 0.126 to 0.158mm²
	Number of Strands 8
	American Wire Gauge 26AWG
	Conductor Strand Type Stranded
	Cable Shape Round
	Capacitance 5.6nF/100m
	Outer Diameter 4.6mm

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both residential and commercial networking setups.

Features and Benefits

UTP (Unshielded Twisted Pair): Provides effective noise rejection without the need for additional shielding
Cat5e: Supports high-speed data transfer, making it suitable for Ethernet networks
Moulded: Enhances durability and reduces strain on the connectors
26 AWG Bare Copper Cores: Ensures robust signal integrity and performance
CM (UL) C(UL) 4P: Meets safety and performance standards for reliable use
ISO/IEC 11801 and TIA/EIA 568B.2: Complies with international cabling standards
PoE Compatible: Supports Power over Ethernet applications for added versatility

Applications

Computer networks
Ethernet connections
Residential and commercial networking

Additional Information

Sheath Colour: Red
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Length: 15 m
Connector Type: RJ45 Male to Male

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
