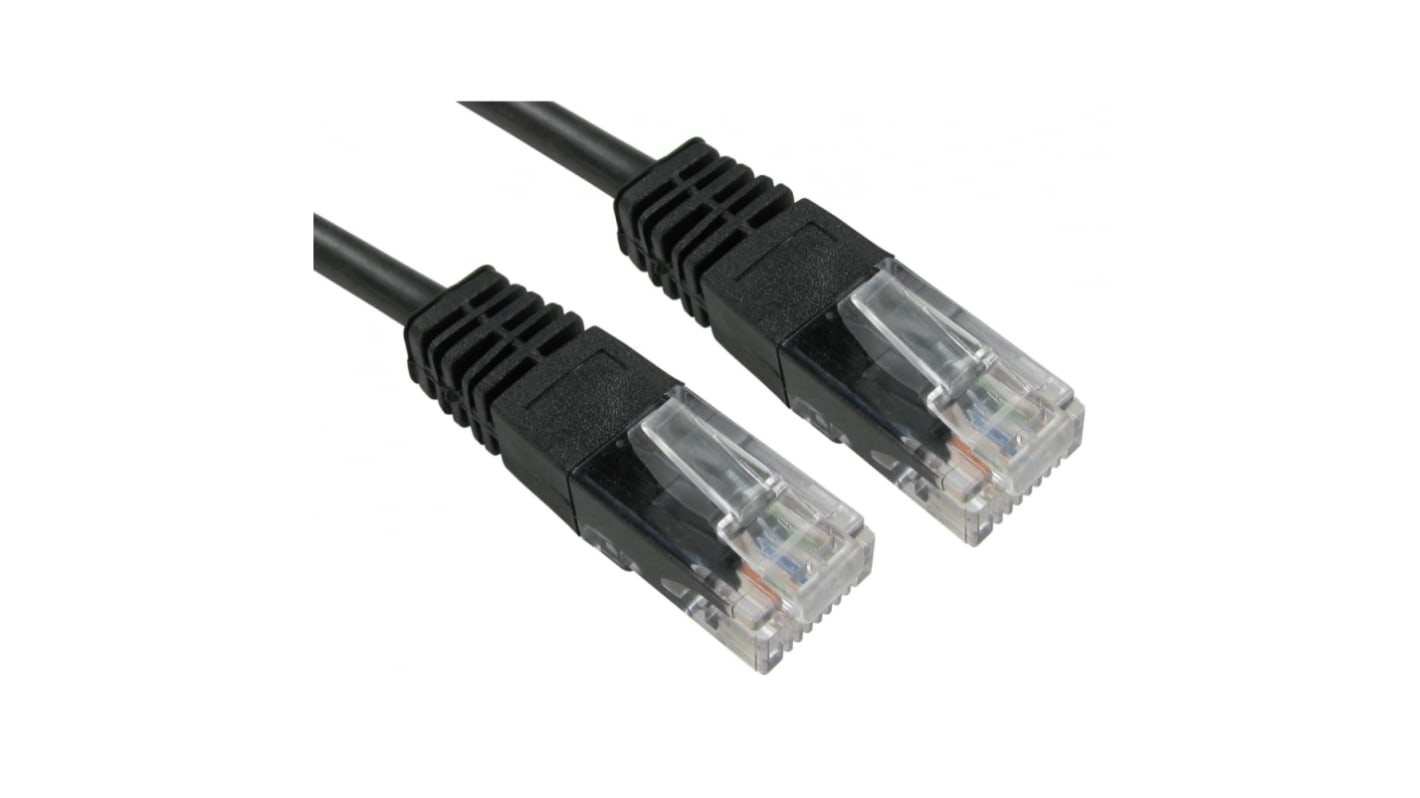

RS PRO, 7m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3646
Manufacturer:: RS PRO

RS PRO, 7m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR40.09

FREE delivery for orders over RM 500.00

In Stock

Plus 1 unit(s) shipping from 05 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR40.09

*price indicative

RS Stock No.:: 286-3646
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	7m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Black
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.15
	Cable Shape	Round
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating	960mA
	Number of Strands	8
	American Wire Gauge	26AWG
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	Voltage Rating	80V
	Outer Diameter	4.6mm
	Cross Sectional Area	0.126 to 0.158mm²

	Select all
	Brand RS PRO
	Length 7m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Black
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.15
	Cable Shape Round
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating 960mA
	Number of Strands 8
	American Wire Gauge 26AWG
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	Voltage Rating 80V
	Outer Diameter 4.6mm
	Cross Sectional Area 0.126 to 0.158mm²

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures effective noise rejection
Cat5e standard supports high-speed data transfer
Moulded connectors provide durability and strain relief
26 AWG bare copper cores enhance conductivity
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards guarantee compatibility
PoE compatible for powering devices over Ethernet

Applications

Computer networks
Ethernet connections
Home and office networking

Additional Information

Sheath Colour: Black
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Standards Met: C (UL)

CM (UL)

ISO/IEC 11801

TIA/EIA 568B.2
