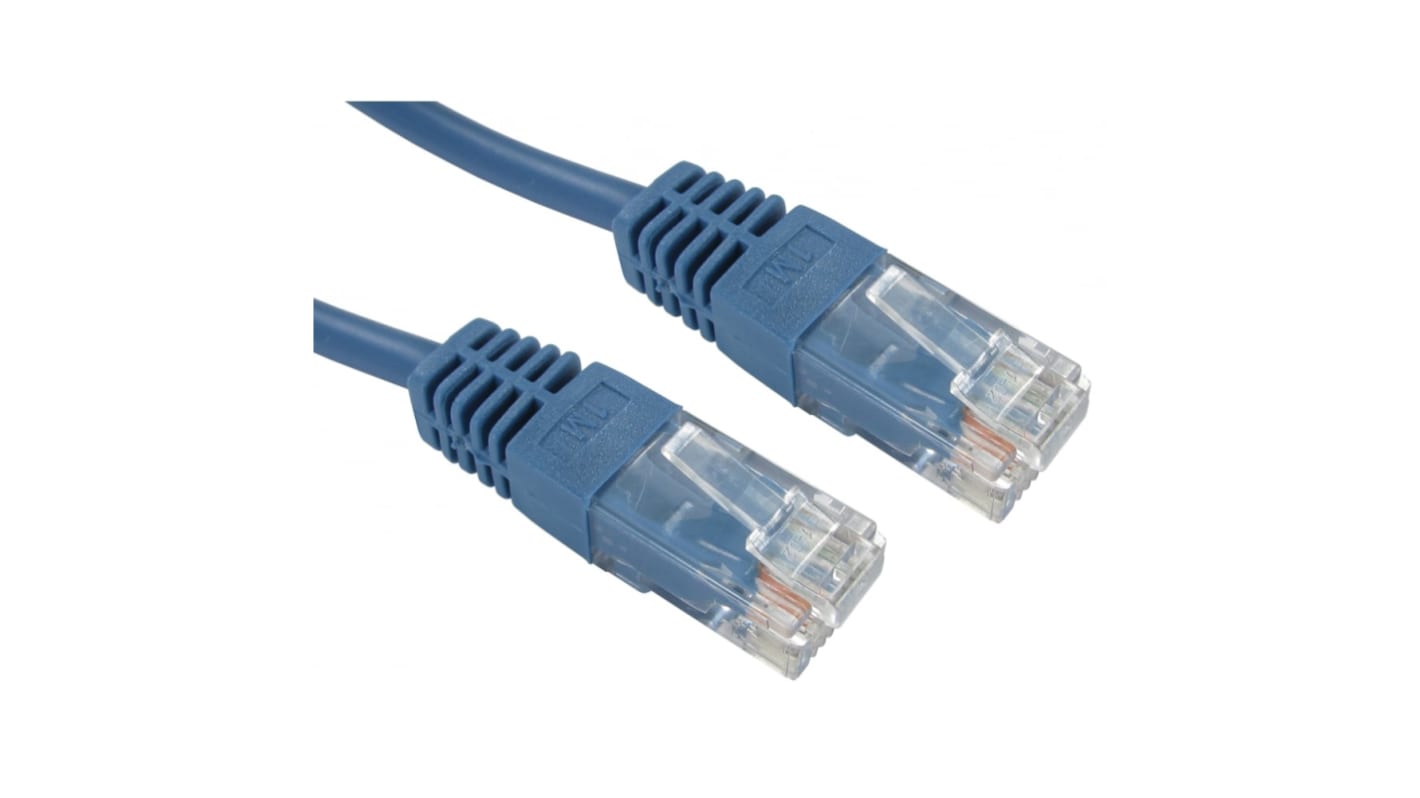

RS PRO, 3m Cat5e, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3603
Manufacturer:: RS PRO

RS PRO, 3m Cat5e, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR20.35

FREE delivery for orders over RM 500.00

In Stock

2 unit(s) ready to ship from another location
Plus 105 unit(s) shipping from 23 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR20.35

*price indicative

RS Stock No.:: 286-3603
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	3m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Sheath Colour	Blue
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Voltage Rating	80V
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Outer Diameter	4.6mm
	American Wire Gauge	26AWG
	Current Rating	960mA
	Number of Strands	8
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2

	Select all
	Brand RS PRO
	Length 3m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Sheath Colour Blue
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Voltage Rating 80V
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Outer Diameter 4.6mm
	American Wire Gauge 26AWG
	Current Rating 960mA
	Number of Strands 8
	Conductor Strand Type Stranded
	Cable Shape Round
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures minimal interference and high signal integrity

Cat5e rating supports fast data transfer speeds, enhancing network performance

Moulded connectors provide durability and secure connections

26 AWG bare copper cores offer robust conductivity and flexibility

CM (UL) and ISO/IEC 11801 compliance ensures adherence to industry standards

PoE compatible, allowing power and data transmission over a single cable

Applications

Computer networks

Ethernet connections

Home and office networking

Additional Information

Sheath Colour: Blue

Outer Sheath Material: PVC

Wiring Configuration: Straight Through

Standards Met: C (UL); CM (UL); ISO/IEC 11801; TIA/EIA 568B.2

Length: 3 m

Connector Type: RJ45 Male to Male
