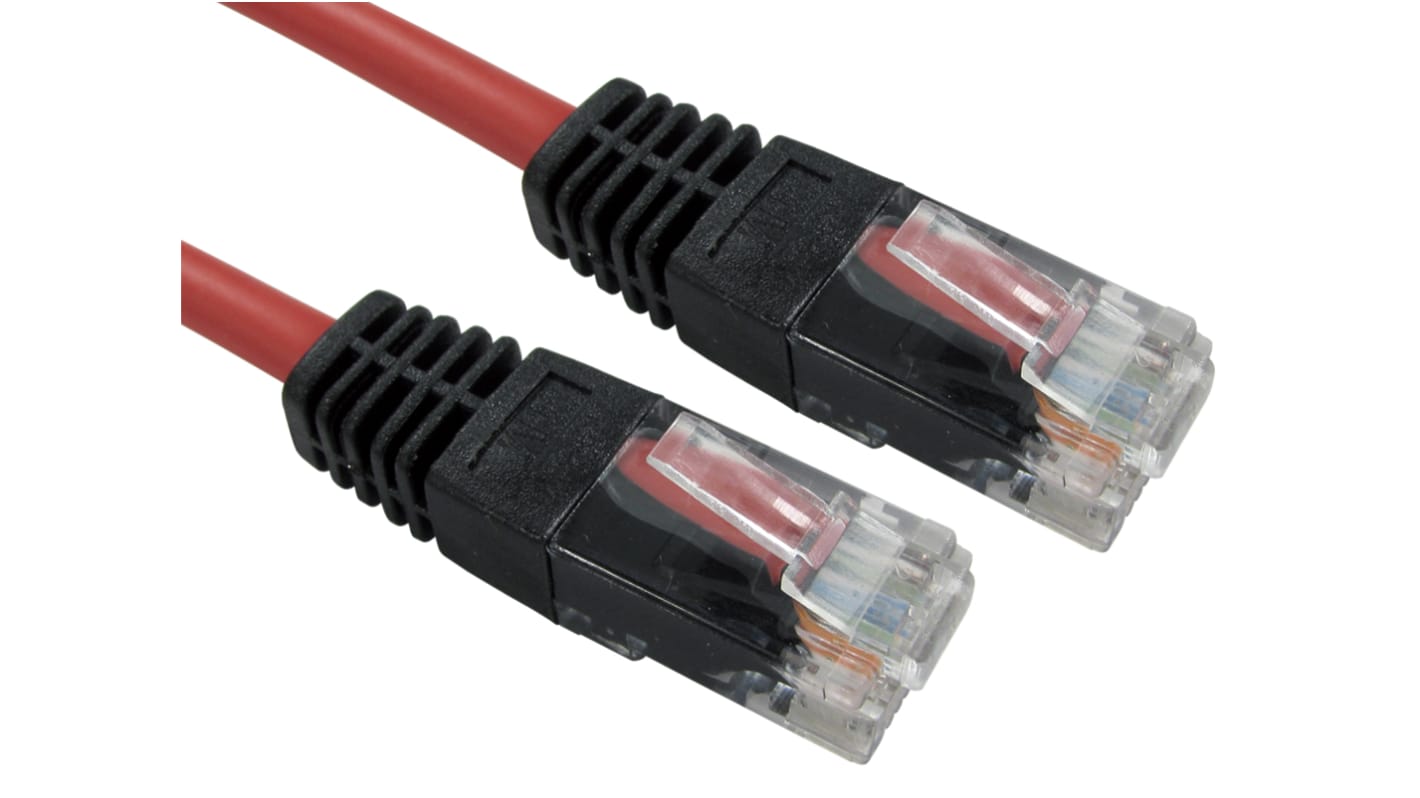

RS PRO, 3m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2690
Manufacturer:: RS PRO

RS PRO, 3m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR16.04

FREE delivery for orders over RM 500.00

In Stock

33 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR16.04

*price indicative

RS Stock No.:: 266-2690
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	3m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Red
	Wiring Configuration	Straight Through
	Core Strands	7/0.16
	Fire Behaviour	CM Rated
	Cable Shape	Round
	Standards Met	C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating	960mA
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	Outer Diameter	4.9mm
	American Wire Gauge	26AWG
	Number of Strands	8

	Select all
	Brand RS PRO
	Length 3m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Red
	Wiring Configuration Straight Through
	Core Strands 7/0.16
	Fire Behaviour CM Rated
	Cable Shape Round
	Standards Met C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating 960mA
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	Outer Diameter 4.9mm
	American Wire Gauge 26AWG
	Number of Strands 8

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Crossover Patch Cable

This RS PRO Ethernet Cable is a Cat5e crossover patch cable designed for high signal integrity in computer networks. Ideal for connecting two computers directly without a switch, it offers reliable performance with its unshielded twisted pair design.

Features and Benefits

Category 5e cable: Ensures high signal integrity and reliable data transmission
Black Boots: Provides additional protection and durability
UTP (Unshielded Twisted Pair): Reduces interference and maintains signal quality
Moulded: Enhances cable strength and longevity
26 AWG Bare Copper Cores: Offers excellent conductivity and performance
ETL Verified ISO/IEC 11801 and TIA/EIA 568B.2: Meets industry standards for quality and safety
CM (UL) C(UL): Certified for safe use in various environments

Applications

Computer networks
Direct computer-to-computer connections
Switch linking

Additional Information

Sheath Colour: Red
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Core Strands: 7/0.16
Fire Behaviour: CM Rated
Standards Met: C (UL)

CM (UL)

ETL Verified

ISO/IEC 11801

TIA/EIA 568B.2
Length: 3 m
LAN Category: CAT5e
Connector Type: RJ45
