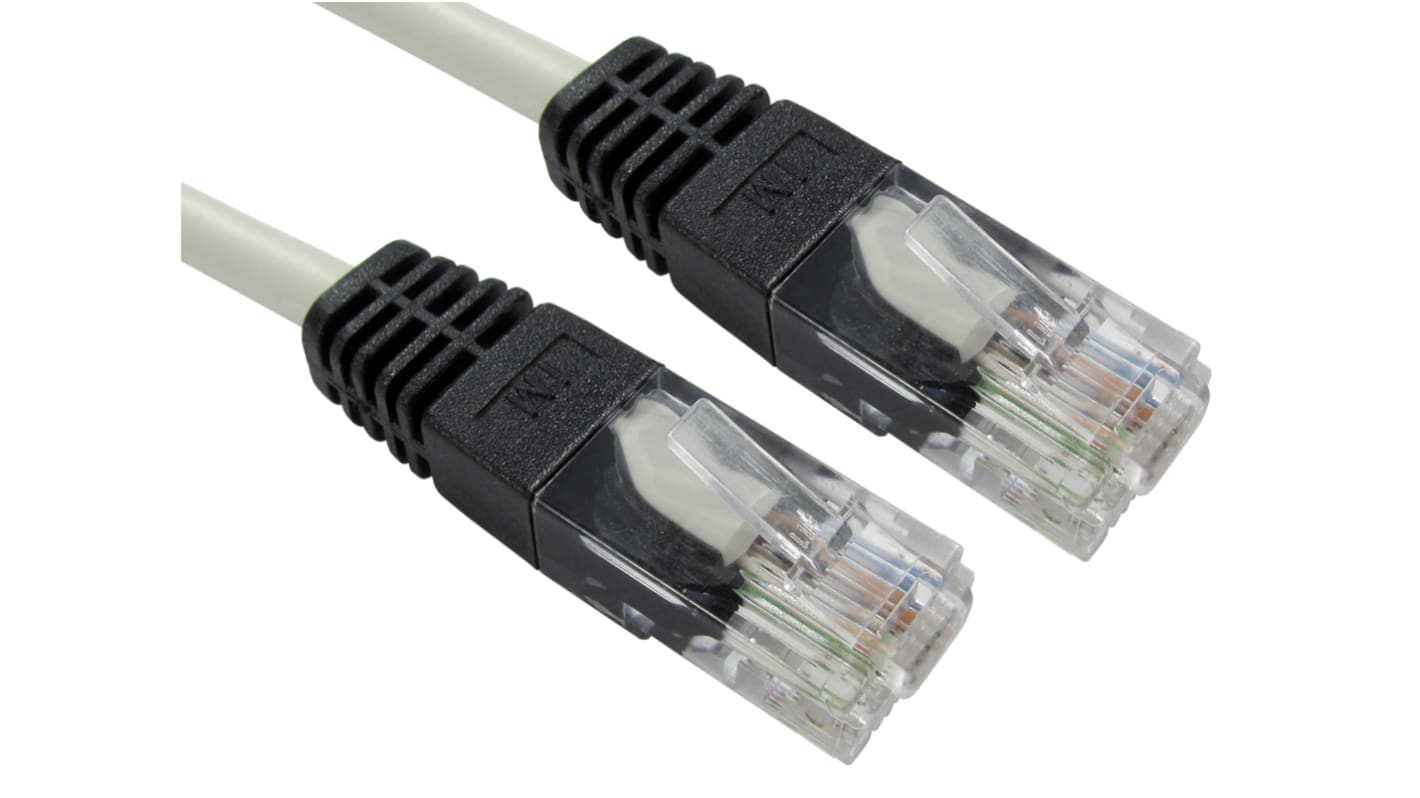

RS PRO, 3m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2687
Manufacturer:: RS PRO

RS PRO, 3m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR17.94

FREE delivery for orders over RM 500.00

In Stock

52 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR17.94

*price indicative

RS Stock No.:: 266-2687
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	3m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 2	RJ45
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Grey
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.16
	Standards Met	C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	American Wire Gauge	26AWG
	Outer Diameter	4.9mm
	Current Rating	960mA
	Cable Shape	Round
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m
	Number of Strands	8
	Conductor Strand Type	Stranded

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 3m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 2 RJ45
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Grey
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.16
	Standards Met C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	American Wire Gauge 26AWG
	Outer Diameter 4.9mm
	Current Rating 960mA
	Cable Shape Round
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m
	Number of Strands 8
	Conductor Strand Type Stranded

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Crossover Patch Cable

This RS PRO Ethernet Cable is a Cat5e crossover patch cable designed for high signal integrity and reliable performance in computer networks. Ideal for connecting two computers directly or linking switches without a switch, it offers a robust solution for network setups.

Features and Benefits

Category 5e cable: Ensures high signal integrity and reliable data transmission

Black boots: Provides additional protection and durability

UTP (Unshielded Twisted Pair): Reduces interference and maintains signal quality

Moulded design: Enhances cable strength and longevity

26 AWG bare copper cores: Offers excellent conductivity and performance

ETL Verified ISO/IEC 11801 and TIA/EIA 568B.2: Meets industry standards for quality and safety

CM (UL) C(UL) rated: Ensures compliance with fire safety standards

Applications

Computer networks

Direct computer-to-computer connections

Switch-to-switch connections

Additional Information

Sheath Colour: Grey

Outer Sheath Material: PVC

Wiring Configuration: Straight Through

Core Strands: 7/0.16

Fire Behaviour: CM Rated

Standards Met: C (UL); CM (UL); ETL Verified; ISO/IEC 11801; TIA/EIA 568B.2

Length: 3 m

Connector Type: RJ45 Male to RJ45 Male

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
