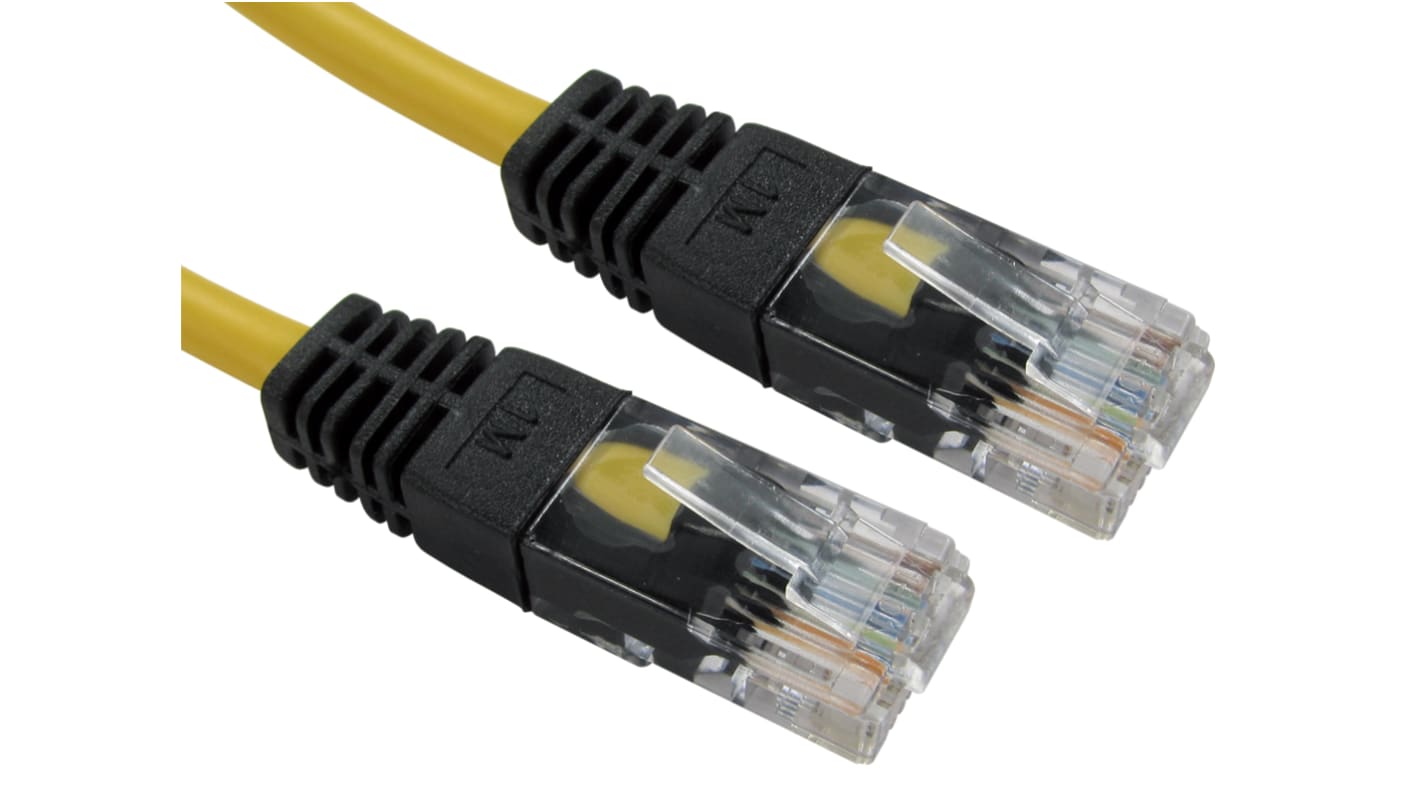

RS PRO, 2m Cat5e, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2686
Manufacturer:: RS PRO

RS PRO, 2m Cat5e, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR11.80

FREE delivery for orders over RM 500.00

In Stock

89 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR11.80

*price indicative

RS Stock No.:: 266-2686
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	2m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	PVC
	Sheath Colour	Yellow
	Wiring Configuration	Straight Through
	Core Strands	7/0.16
	Fire Behaviour	CM Rated
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.201 to 0.253mm²
	Current Rating	960mA
	Standards Met	C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape	Round
	Number of Strands	8
	American Wire Gauge	26AWG
	Outer Diameter	4.9mm

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 2m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material PVC
	Sheath Colour Yellow
	Wiring Configuration Straight Through
	Core Strands 7/0.16
	Fire Behaviour CM Rated
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.201 to 0.253mm²
	Current Rating 960mA
	Standards Met C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape Round
	Number of Strands 8
	American Wire Gauge 26AWG
	Outer Diameter 4.9mm

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Crossover

This RS PRO Ethernet Cable is a Cat5e crossover patch cable designed for high signal integrity and reliable performance in computer networks. Ideal for connecting two computers directly or linking switches without a switch, it offers a robust solution for network setups.

Features and Benefits

Category 5e cable: Ensures high signal integrity and reliable data transmission
Black boots: Provides additional protection and durability
UTP (Unshielded Twisted Pair): Reduces interference and maintains signal quality
Moulded design: Enhances cable strength and longevity
26 AWG bare copper cores: Offers excellent conductivity and performance
ETL Verified ISO/IEC 11801 and TIA/EIA 568B.2: Meets industry standards for quality and safety
CM (UL) C(UL) rated: Ensures compliance with fire safety standards

Applications

Computer networks
Ethernet connections
Direct computer-to-computer links
Switch-to-switch connections

Additional Information

Sheath Colour: Yellow
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Core Strands: 7/0.16
Fire Behaviour: CM Rated
Standards Met: C (UL)

CM (UL)

ETL Verified

ISO/IEC 11801

TIA/EIA 568B.2
Length: 2 m
Connector Type: RJ45, Male to Male
