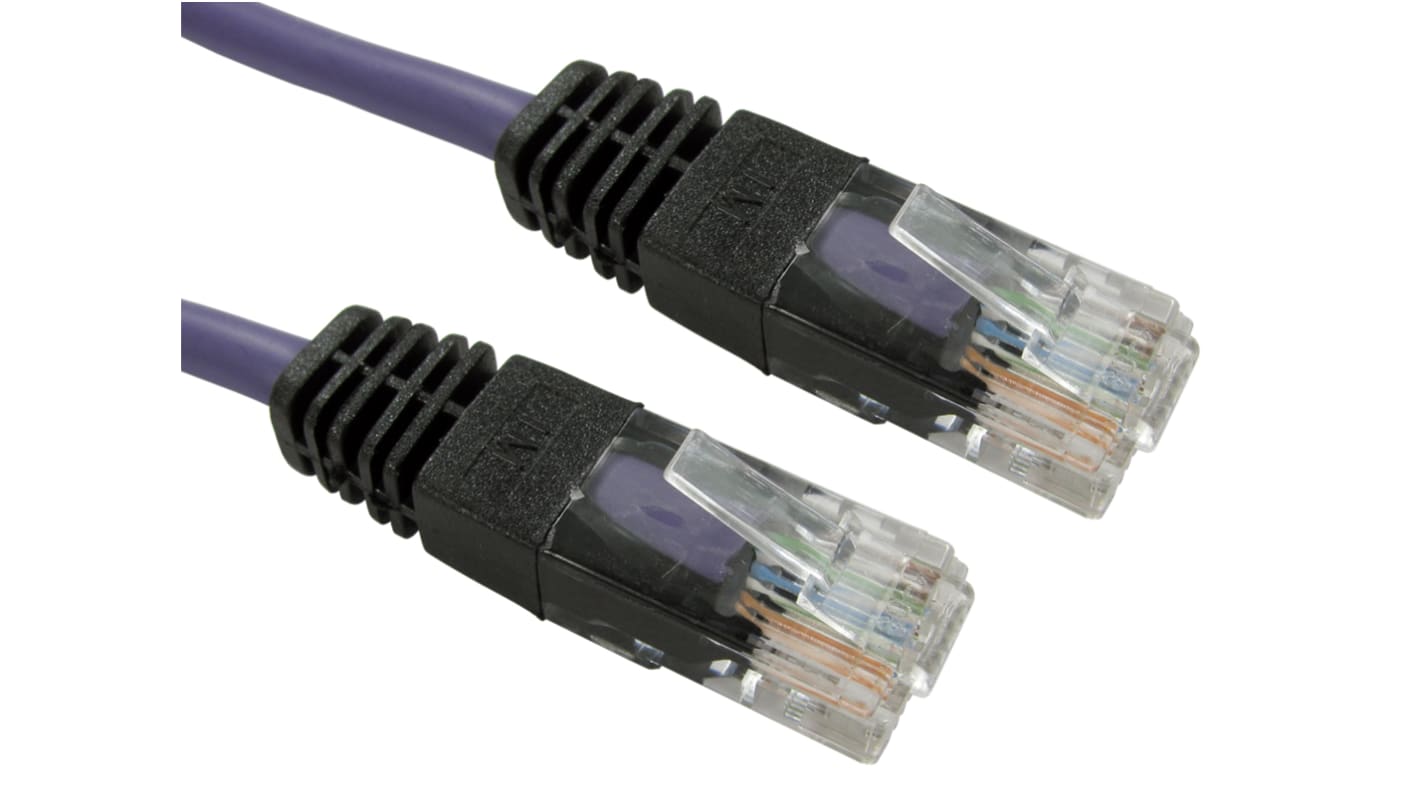

RS PRO, 2m Cat5e, Violet RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 266-2685
Manufacturer:: RS PRO

RS PRO, 2m Cat5e, Violet RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR13.36

FREE delivery for orders over RM 500.00

In Stock

46 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR13.36

*price indicative

RS Stock No.:: 266-2685
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	2m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Violet
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.16
	Current Rating	960mA
	Outer Diameter	4.9mm
	American Wire Gauge	26AWG
	Number of Strands	8
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Standards Met	C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 2m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Violet
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.16
	Current Rating 960mA
	Outer Diameter 4.9mm
	American Wire Gauge 26AWG
	Number of Strands 8
	Conductor Strand Type Stranded
	Cable Shape Round
	Standards Met C (UL), CM (UL), ETL Verified, ISO/IEC 11801, TIA/EIA 568B.2
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Crossover

This RS PRO Ethernet Cable is a high-quality Cat5e crossover cable designed for reliable data transmission in computer networks. Ideal for connecting two computers directly or linking network switches, it ensures high signal integrity and noise rejection.

Features and Benefits

Category 5e cable: Provides high signal integrity and reliable data transmission
Black boots: Offers additional protection and durability
UTP (Unshielded Twisted Pair): Reduces interference and enhances performance
Moulded design: Ensures a secure and robust connection
26 AWG bare copper cores: Delivers efficient conductivity and performance
ETL Verified ISO/IEC 11801 and TIA/EIA 568B.2: Meets industry standards for quality and reliability
CM (UL) C(UL) rated: Ensures compliance with safety standards

Applications

Computer networks
Direct computer-to-computer connections
Linking network switches

Additional Information

Sheath Colour: Violet
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Core Strands: 7/0.16
Fire Behaviour: CM Rated
Length: 2 m
Connector Type: RJ45 Male to Male
