Phoenix Contact NBC, 2 m Cat5 Ethernet Cable, Blue, Shielded 2 Screened Polyurethane Sheath
- RS Stock No.:
- 255-8726
- Mfr. Part No.:
- 1408962
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR344.76
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR344.76 |
*price indicative
- RS Stock No.:
- 255-8726
- Mfr. Part No.:
- 1408962
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | NBC | |
| Product Type | Ethernet Cable | |
| LAN Category | Cat5 | |
| Cable Length | 2m | |
| Sub Type | Cat5 Cable | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Fire Behaviour | Flammability rating according to UL 94 V2 | |
| Standards/Approvals | Standards/specifications IEC PAS 61076 3 117 | |
| Core Strands | 7 | |
| Number of Cores | 2 | |
| Cross Sectional Area | 26 AWG | |
| Outside Diameter | 6.4 mm | |
| Voltage | 48 V | |
| Conductor Material | Bare Copper Wire | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series NBC | ||
Product Type Ethernet Cable | ||
LAN Category Cat5 | ||
Cable Length 2m | ||
Sub Type Cat5 Cable | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Fire Behaviour Flammability rating according to UL 94 V2 | ||
Standards/Approvals Standards/specifications IEC PAS 61076 3 117 | ||
Core Strands 7 | ||
Number of Cores 2 | ||
Cross Sectional Area 26 AWG | ||
Outside Diameter 6.4 mm | ||
Voltage 48 V | ||
Conductor Material Bare Copper Wire | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL

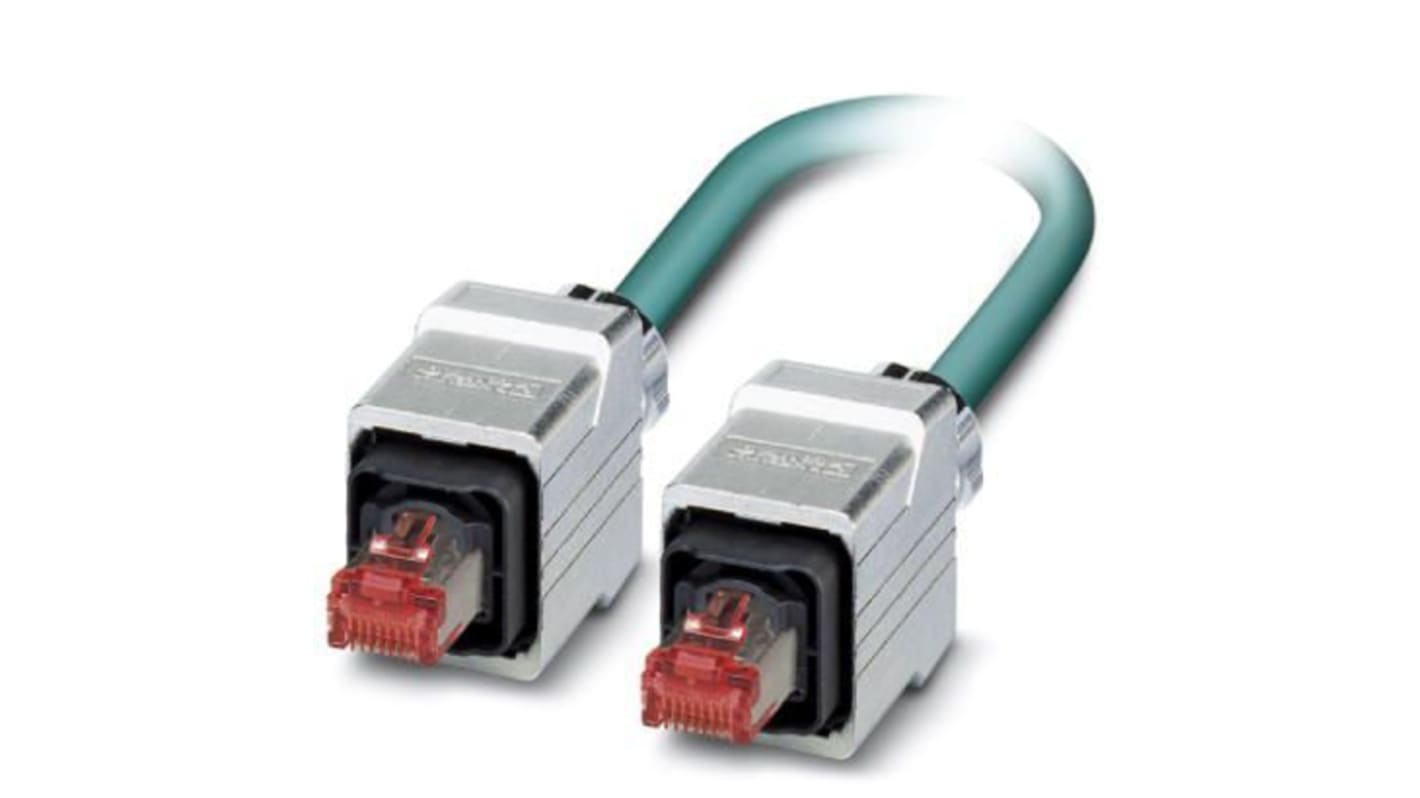

The Phoenix Contact shielded network cable with metal push-pull RJ45 / IP67 connectors at both ends. it has 8 position and is 2 m long and available in water blue color.
IP67 protection
V2 flammability rating as per UL94
Rated for 200+ insertion/withdrawal cycles
