Phoenix Contact NBC, 10 m Cat6a Ethernet Cable, Blue, Shielded 2 Screened Polyurethane Sheath
- RS Stock No.:
- 255-8702
- Mfr. Part No.:
- 1408367
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR413.54
FREE delivery for orders over RM 500.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR413.54 |
*price indicative
- RS Stock No.:
- 255-8702
- Mfr. Part No.:
- 1408367
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | NBC | |
| Product Type | Ethernet Cable | |
| Cable Length | 10m | |
| LAN Category | Cat6a | |
| Shield Type | Shielded | |
| Sub Type | Cat6a Cable | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EAC Approval ID: B.00385/20, EAC Approval ID: 19060508 | |
| Core Strands | 7 | |
| Fire Behaviour | Halogen Free | |
| Outside Diameter | 6.4 mm | |
| Cross Sectional Area | 0.14 mm² | |
| Voltage | 48 V | |
| Conductor Material | Copper | |
| Number of Cores | 2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series NBC | ||
Product Type Ethernet Cable | ||
Cable Length 10m | ||
LAN Category Cat6a | ||
Shield Type Shielded | ||
Sub Type Cat6a Cable | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EAC Approval ID: B.00385/20, EAC Approval ID: 19060508 | ||
Core Strands 7 | ||
Fire Behaviour Halogen Free | ||
Outside Diameter 6.4 mm | ||
Cross Sectional Area 0.14 mm² | ||
Voltage 48 V | ||
Conductor Material Copper | ||
Number of Cores 2 | ||
- COO (Country of Origin):
- PL

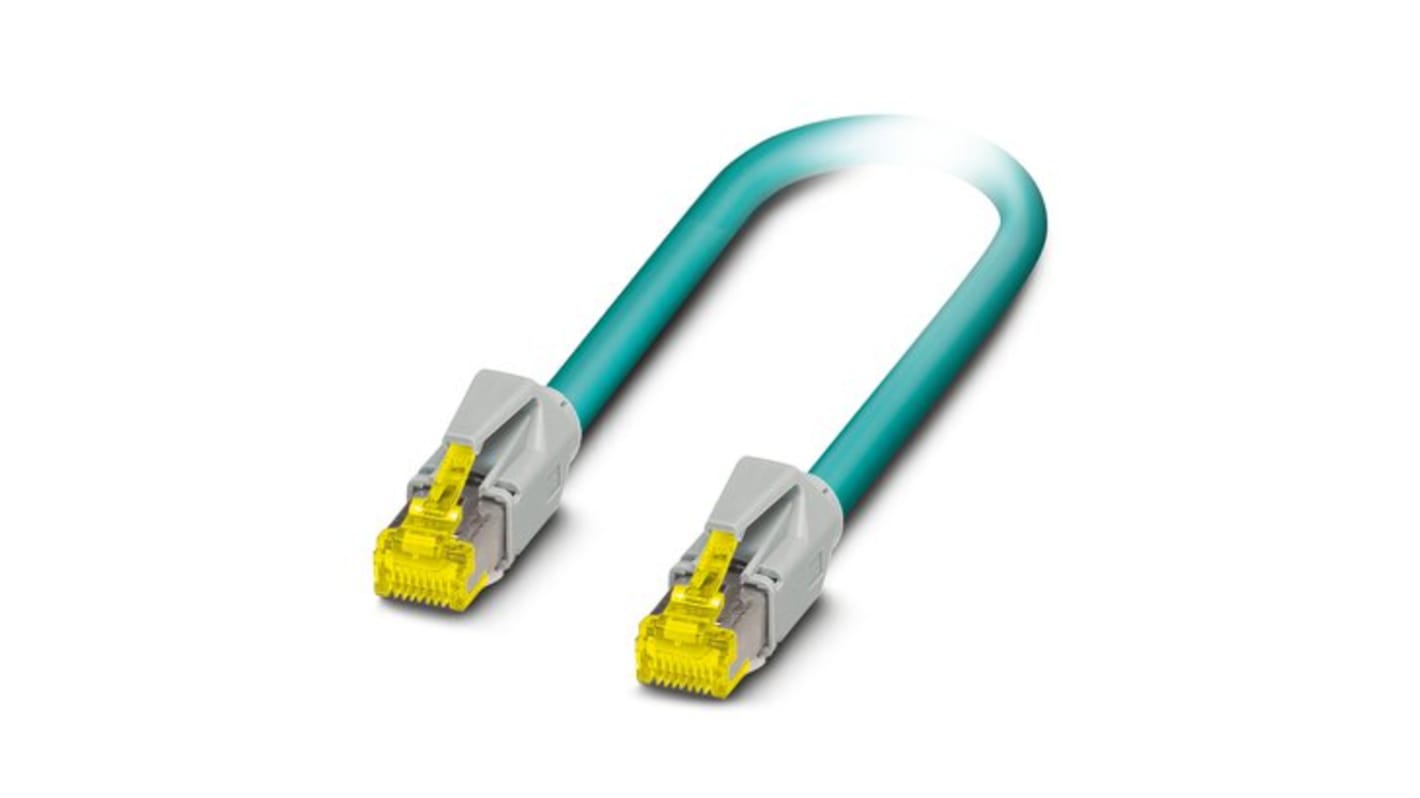

The Phoenix Contact patch cable CAT6A with connection not crossed (line) assembled at both ends with RJ45/IP20 connectors. Is 10 m long and available in water blue color.
IP 20 protection
Rated for 200+ insertion/withdrawal cycles
