Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Green, Shielded 4 Screened Thermoplastic Polyurethane Sheath
- RS Stock No.:
- 255-8679
- Mfr. Part No.:
- 1407536
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR198.21
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR198.21 |
*price indicative
- RS Stock No.:
- 255-8679
- Mfr. Part No.:
- 1407536
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | NBC | |
| Cable Length | 1m | |
| LAN Category | Cat5 | |
| Shield Type | Shielded | |
| Sub Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Colour | Green | |
| Jacket Material | Thermoplastic Polyurethane | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | IEC 61076-2-101 | |
| Fire Behaviour | UL 1685 (CSA FT 4) | |
| Core Strands | 7 | |
| Cross Sectional Area | 4 x 0.34 mm² | |
| Number of Cores | 4 | |
| Conductor Material | Tin Plated Copper | |
| Outside Diameter | 6.5 mm | |
| Voltage | 60 V dc, 48 V ac | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series NBC | ||
Cable Length 1m | ||
LAN Category Cat5 | ||
Shield Type Shielded | ||
Sub Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Colour Green | ||
Jacket Material Thermoplastic Polyurethane | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals IEC 61076-2-101 | ||
Fire Behaviour UL 1685 (CSA FT 4) | ||
Core Strands 7 | ||
Cross Sectional Area 4 x 0.34 mm² | ||
Number of Cores 4 | ||
Conductor Material Tin Plated Copper | ||
Outside Diameter 6.5 mm | ||
Voltage 60 V dc, 48 V ac | ||
- COO (Country of Origin):
- PL

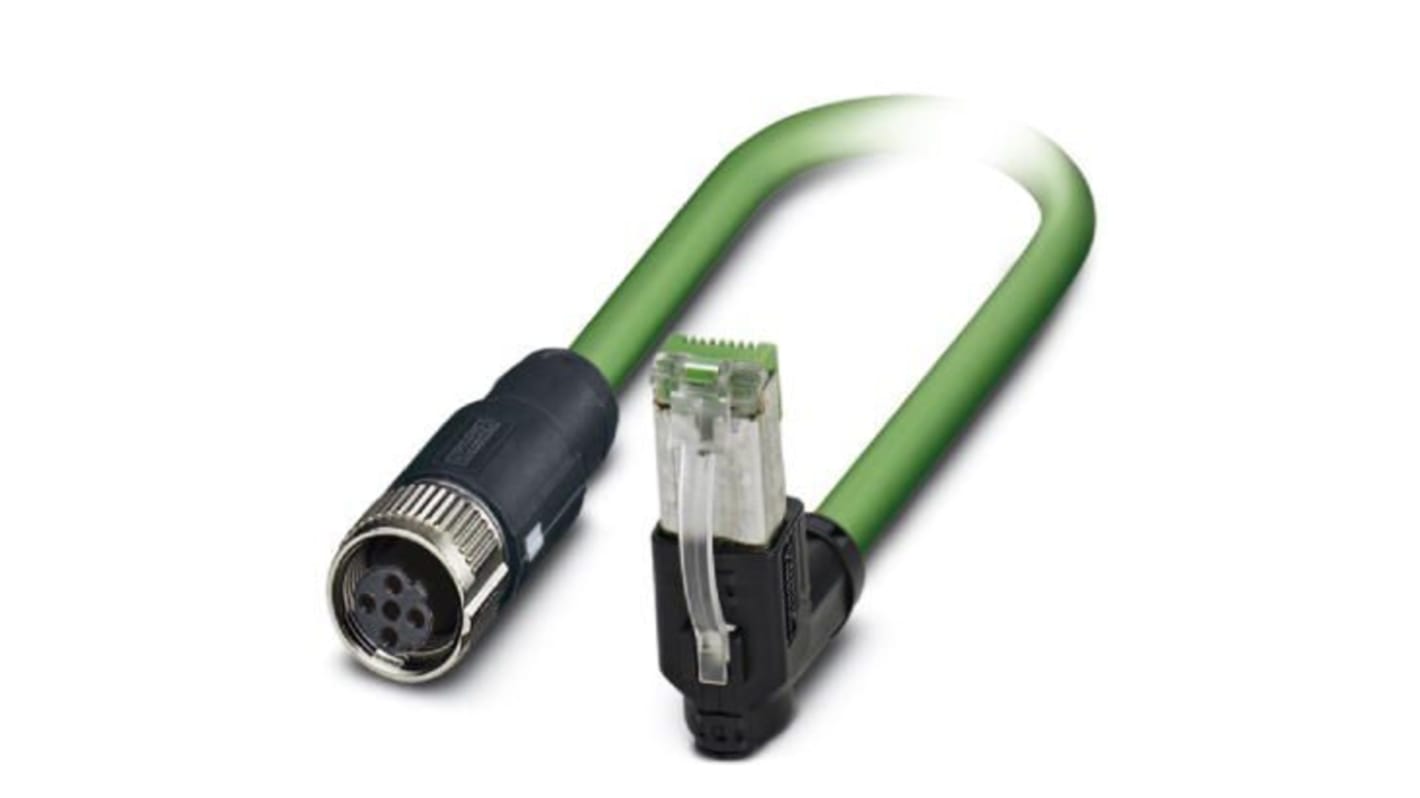

The Phoenix Contact shielded network cable has 4 positions and is PROFINET CAT5 (100 Mbps) rated with right angled RJ45/IP20 and straight plug M12/IP67 connectors, it is 1 m long and available in green color.
IP67 protection
100 Mbps data transmission
Flame resistance acc. To UL 1685 (CSA FT 4)
V2 flammability rating according to UL 94
Oil resistant according to EN 60811-2-1
UV resistant
