Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Blue, Shielded 4 Screened Polyurethane Sheath

View all Ethernet Cable

Subtotal (1 unit)*

MYR257.98

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR257.98

*price indicative

MY - Service toolkits - PDP
RS Stock No.:
255-8559
Mfr. Part No.:
1407364
Manufacturer:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

NBC

Product Type

Ethernet Cable

LAN Category

Cat5

Cable Length

1m

Shield Type

Shielded

Sub Type

Cat5 Cable

Screened/Unscreened

Screened

Jacket Colour

Blue

Jacket Material

Polyurethane

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

90°C

Standards/Approvals

UL VW1, IEC 60332 1 2, EN 60811 2 1, IEC 60754 1, IEC 61076 2 101

Fire Behaviour

Halogen Free IEC 60754-1, Flame resistance according to UL

Conductor Material

Bare Copper Wire

Number of Cores

4

Voltage

100 V

Cross Sectional Area

0.14 mm²

Outside Diameter

6.4 mm

RoHS Status: Exempt

COO (Country of Origin):
PL

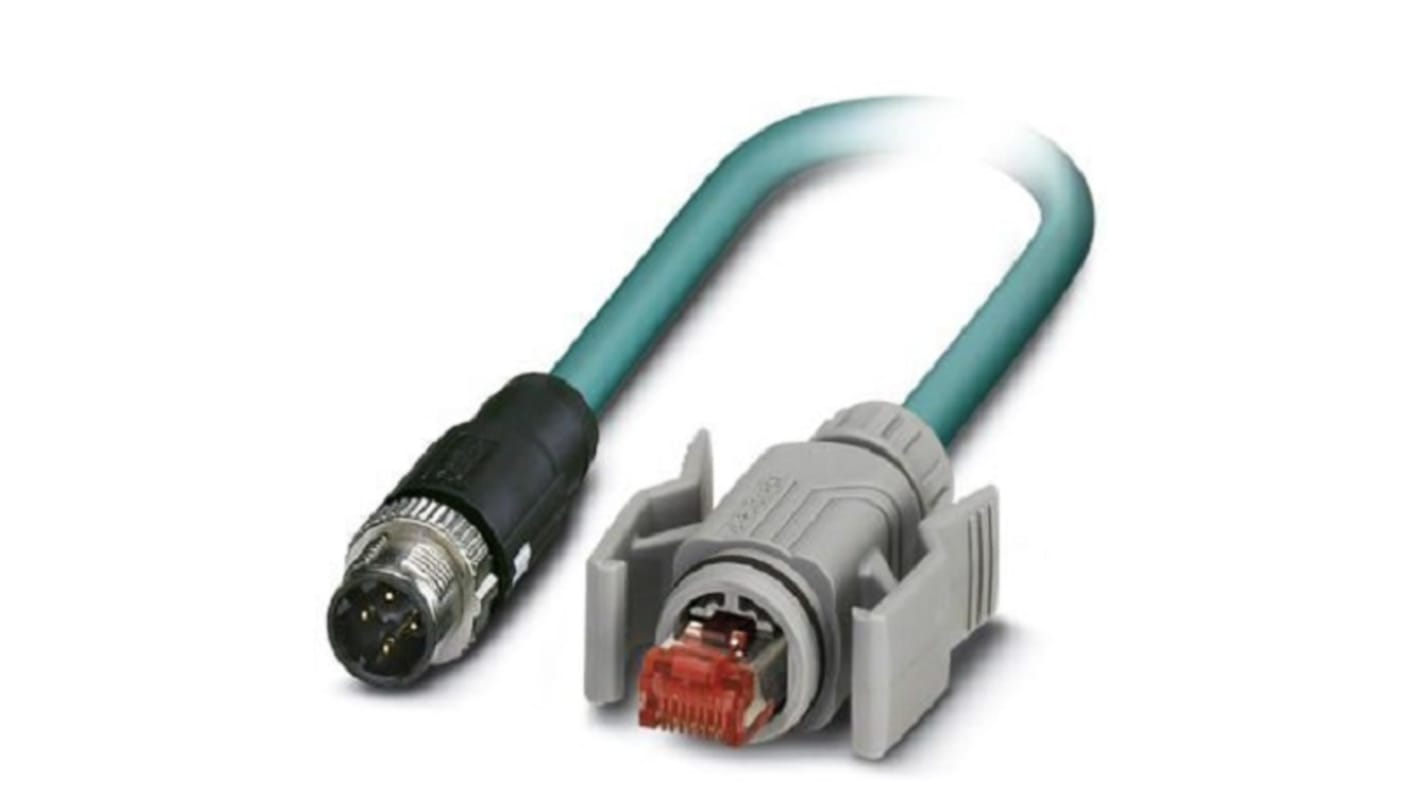

The Phoenix Contact shielded network cable CAT5 (100 Mbps) rated with straight plug M12/IP67 and Clip locking RJ45/IP67, it is 1 m long and available in water blue color.

IP67 protection

100 mbps data transmission

Tested voltage up to 700 V (50 Hz, 1 min)

Flame resistance acc. to UL VW1
