Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6a
	Length	250mm
	Terminated/Unterminated	Terminated
	Shield Type	S/FTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Shielded
	Sheath Colour	Blue
	Outer Sheath Material	LSZH
	Wiring Configuration	Straight Through
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Cable Shape	Round
	Standards Met	ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2
	American Wire Gauge	26AWG
	Outer Diameter	5.8mm
	Number of Strands	8
	Current Rating	≤960mA
	Cross Sectional Area	0.126-0.158mm²
	Voltage Rating	≤80
	Capacitance	5.6nF/100m

	Select all
	Brand RS PRO
	LAN Category Cat6a
	Length 250mm
	Terminated/Unterminated Terminated
	Shield Type S/FTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 Orientation Straight
	Shielded/Unshielded Shielded
	Sheath Colour Blue
	Outer Sheath Material LSZH
	Wiring Configuration Straight Through
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Cable Shape Round
	Standards Met ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2
	American Wire Gauge 26AWG
	Outer Diameter 5.8mm
	Number of Strands 8
	Current Rating ≤960mA
	Cross Sectional Area 0.126-0.158mm²
	Voltage Rating ≤80
	Capacitance 5.6nF/100m

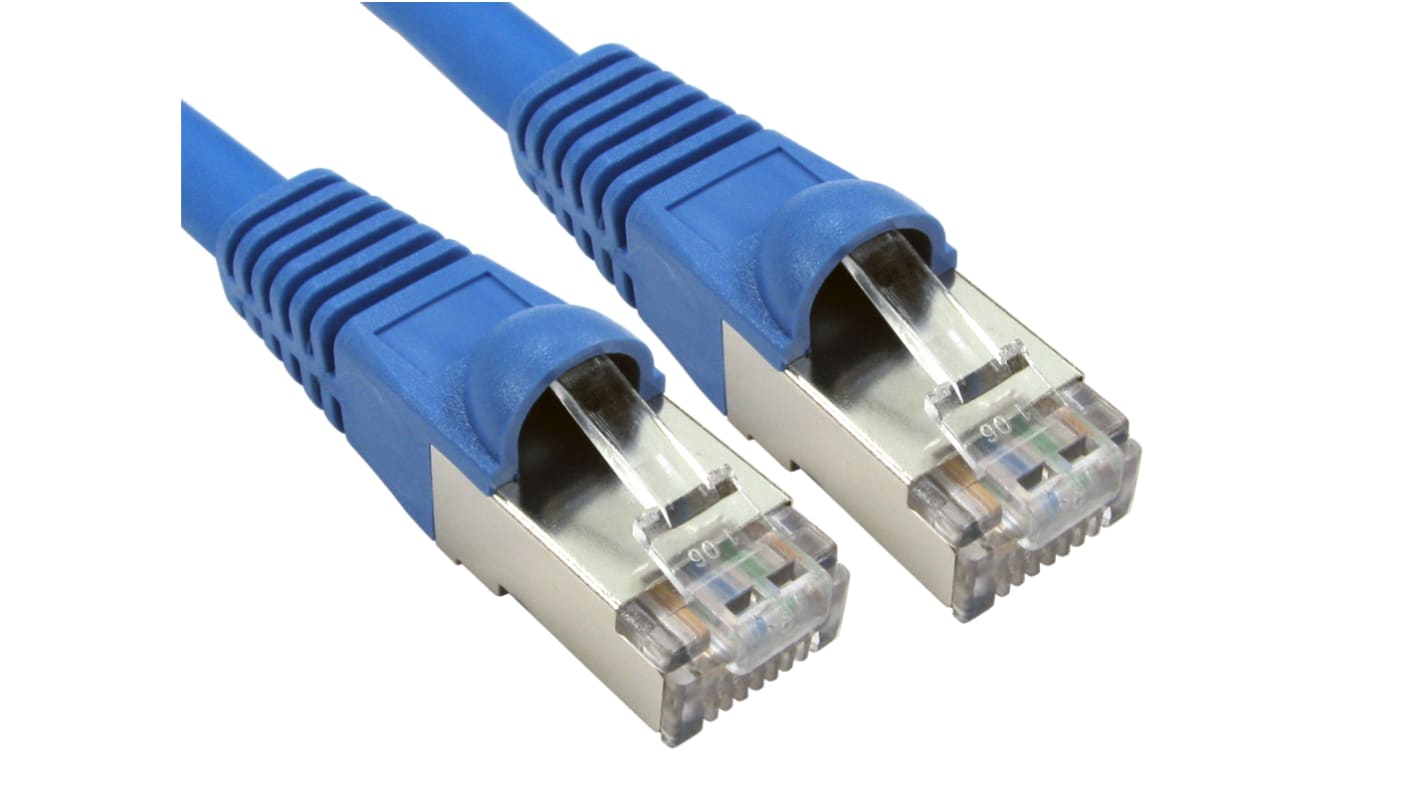

RS PRO, 250mm Cat6a, Blue RJ45 to Male RJ45 Male, S/FTP Shielded, Terminated LSZH Sheath

FREE delivery for orders over MYR500.00

RS PRO LSZH Blue Cat6a Ethernet Cable - 250mm

Features and benefits

What is an Ethernet Cable?

Why a Cat6a Ethernet Cable?

Why RS PRO?
