Phoenix Contact NBC Cat5 Ethernet Cable 4 Core, Black, 5 m, Shielded Screened PVC
- RS Stock No.:
- 240-7288
- Mfr. Part No.:
- 1407378
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR314.79
FREE delivery for orders over RM 150.00
In Stock
- 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR314.79 |
*price indicative
- RS Stock No.:
- 240-7288
- Mfr. Part No.:
- 1407378
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | NBC | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Terminated/Unterminated | Terminated | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Black | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | IEC 60332-1-2 in acc. to UL VW1 | |
| Standards/Approvals | RoHS | |
| Cross Sectional Area | 0.14 mm² | |
| Voltage | 48V ac, 60V ac | |
| Conductor Material | Bare Copper Wire | |
| Number of Cores | 4 | |
| Outside Diameter | 6.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series NBC | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Terminated/Unterminated Terminated | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Black | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour IEC 60332-1-2 in acc. to UL VW1 | ||
Standards/Approvals RoHS | ||
Cross Sectional Area 0.14 mm² | ||
Voltage 48V ac, 60V ac | ||
Conductor Material Bare Copper Wire | ||
Number of Cores 4 | ||
Outside Diameter 6.4mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL

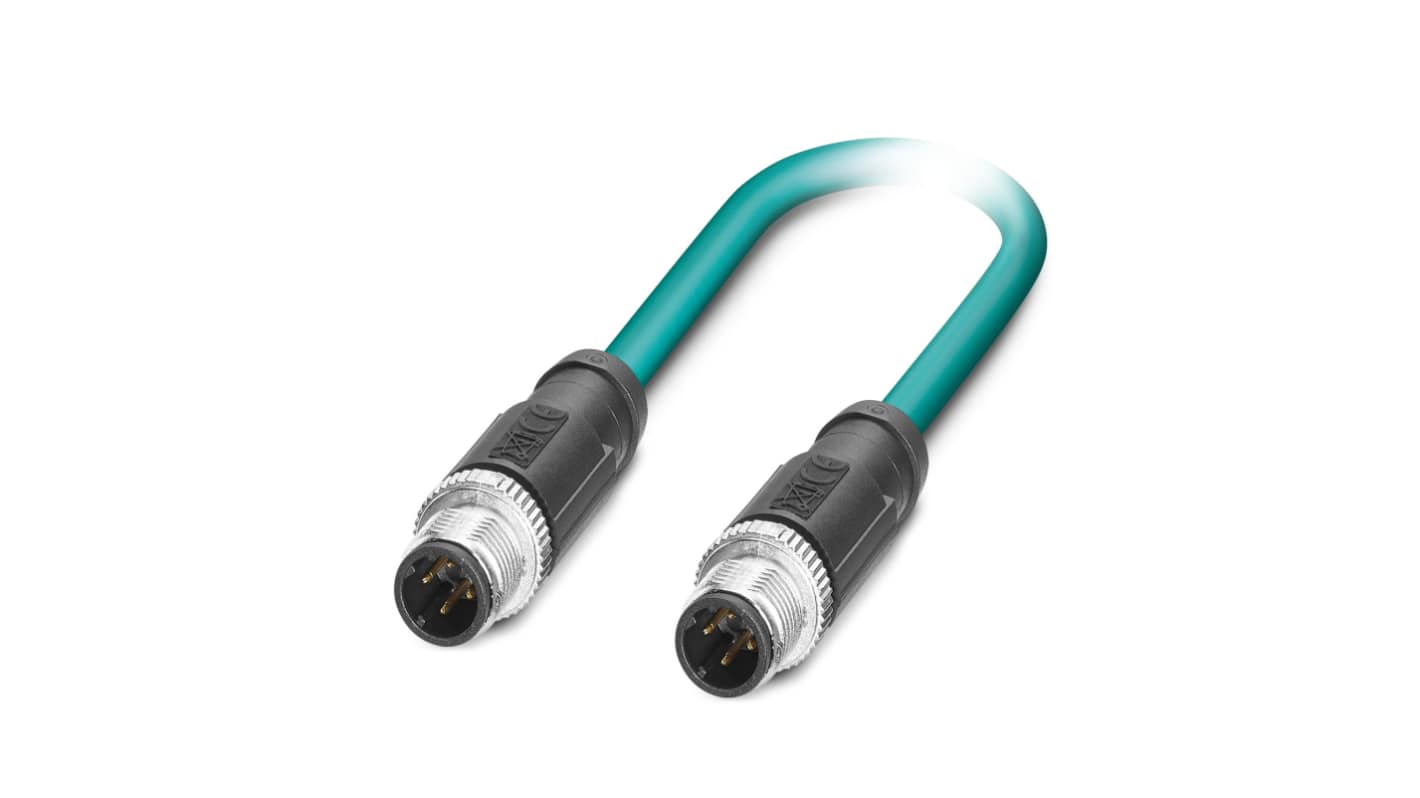

The Phoenix contact Network cables are Ethernet CAT5 cables capable of data transmission speed of up to 100 Mbps. It offers 4-position. The Water blue colour external sheath is made of PUR. The cable is shielded and the connectors are Plug straight M12 SPEEDCON (IP67) on Plug straight M12 SPEEDCON (IP67). The cable length is 5 m.
Rated voltage is 48 V AC or 60 V DC
The Contact material is CuZn and the contact surface material is Ni/Au
